Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Oil Pump Screen, Bolt & Nut
    GM651887Courtesy of GENERAL MOTORS COMPANY
  1. Remove the engine front cover. Refer to Engine Front Cover Replacement (L99) Engine Front Cover Replacement (LS3, LSA) .
  2. Remove the engine oil pan. Refer to Oil Pan Replacement (L99, LS3, LSA) .
  3. Remove the oil pump screen bolt and nut.
  4. Remove the oil pump screen and O-ring seal.
  5. Remove the O-ring seal from the pump screen.
  6. Discard the O-ring seal.
    7. Fig 2: View Of Crankshaft Oil Deflector & Nuts
    GM651888Courtesy of GENERAL MOTORS COMPANY
  7. Remove the remaining crankshaft oil deflector nuts.
  8. Remove the crankshaft oil deflector.

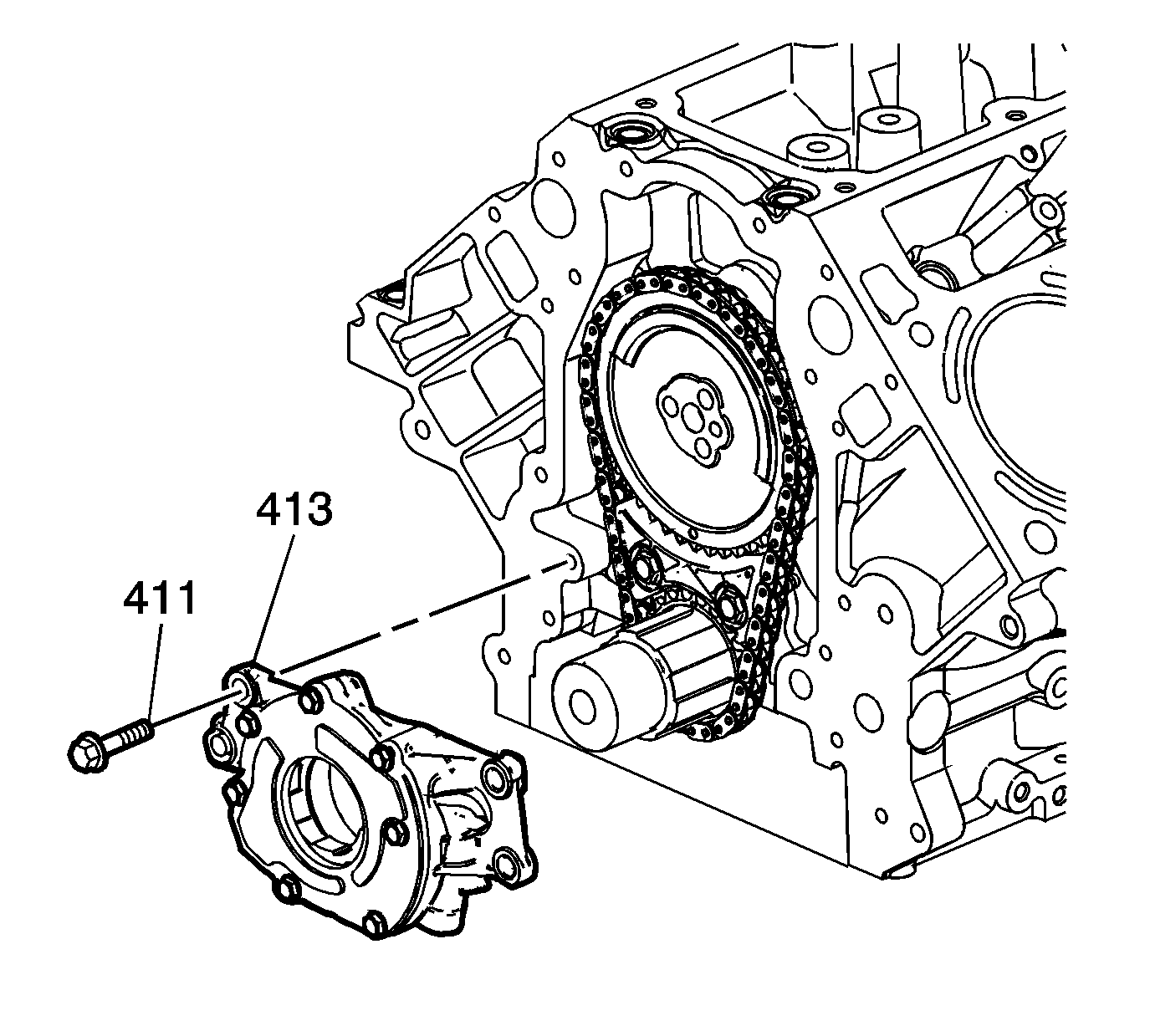

    9. Fig 3: Removing/Installing Oil Pump Bolts
    GM1402067Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not allow dirt or debris to enter the oil pump, cap the ends as necessary.

  9. Remove the oil pump (413) and bolts (411).
  10. Remove the oil pump.
  11. Clean and inspect the oil pump. Refer to Oil Pump Cleaning and Inspection (LSA)Oil Pump Cleaning and Inspection (LS3 or L99) .
