Engine Support Fixture (LS7)
WARNING: This page is about a different variant/trim than selected.

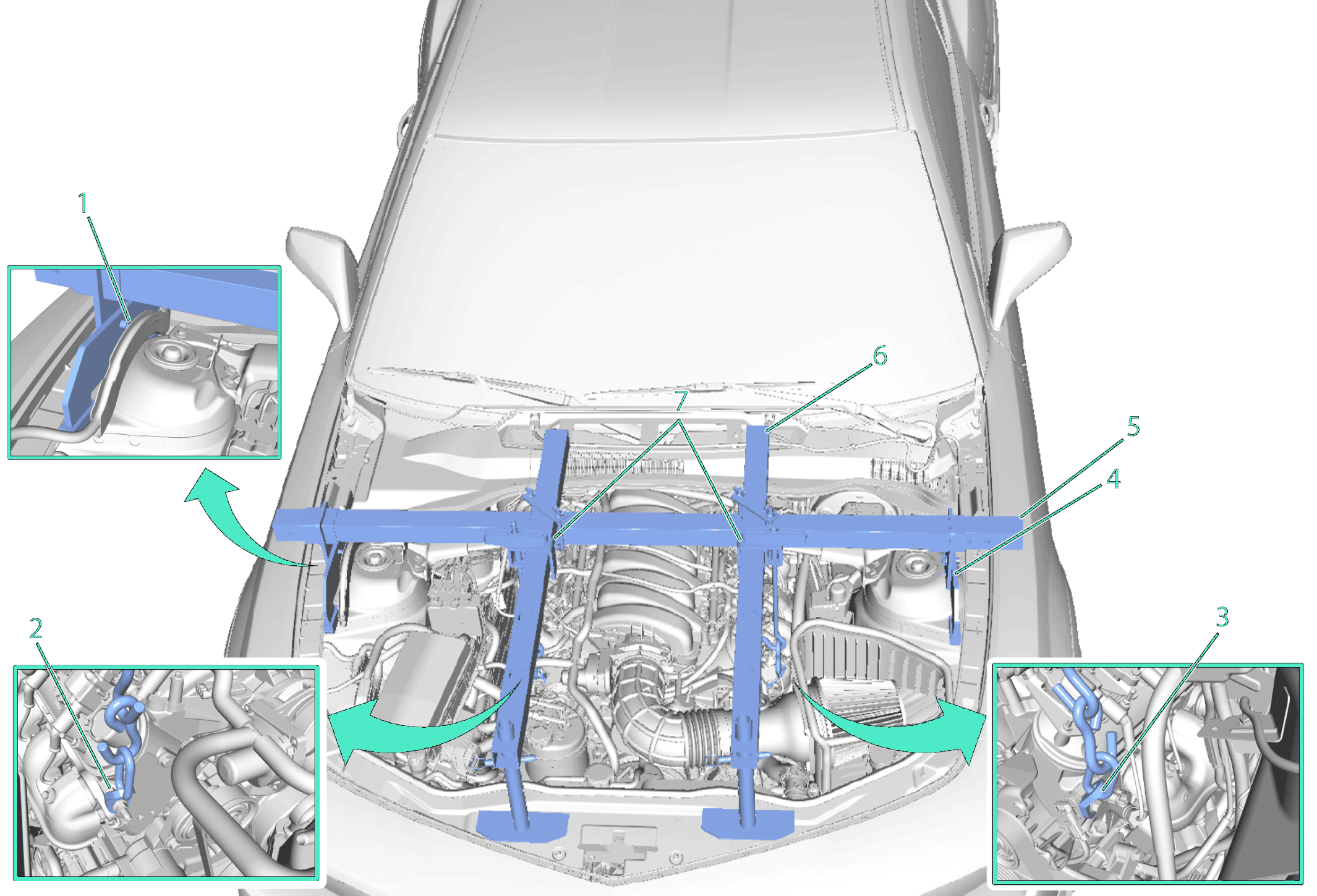

| Callout | Component Name |
|---|---|
| Preliminary Procedure Intake Manifold Cover Replacement (Left Side) Intake Manifold Cover Replacement (Right Side) Special Tools
Equivalent regional tools: Special Tools |
|
| 1 | Engine Wire Harness Procedure Reposition the passenger side wire harness to provide clearance for support fixture leg. |
| 2 | EN-36857
Engine Lift Bracket Procedure
CAUTION:
Refer to Fastener Caution . Use a grade 10.9 bolt to install a EN-36857 bracket to the left cylinder head in the location shown. Tighten the bolt to 65 N.m (48 lb ft). |
| 3 | EN-36857
Engine Lift Bracket Procedure Remove the ground wire stud and position the ground wire aside to install a EN-36857 bracket to the right cylinder head in the location shown. Tighten the stud to 65 N.m (48 lb ft). |
| 4 | EN-28467-501
Engine Support Fixture Adapters (Qty:2) Procedure Install the engine support fixtures adapters on the main support beam and mount on the strut towers. |
| 5 | J-28467-B
Main Support Beam Procedure Install main support beam through engine support beam adapters. |
| 6 | J-36462-1A
Radiator Tube Shelf Assembly (Qty: 2) Procedure Place radiator shelf tubes on top of main support beam and loosely install cross bracket to retain radiator shelf tube to main support beam. Tighten cross bracket after front support assembly is in place. |
| 7 | EN-28467-8A
Hook Assembly (Qty: 2) Procedure Install hook assemblies to engine lift brackets and radiator tube shelf assemblies as shown. |
