Engine Oil Temperature Gauge Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

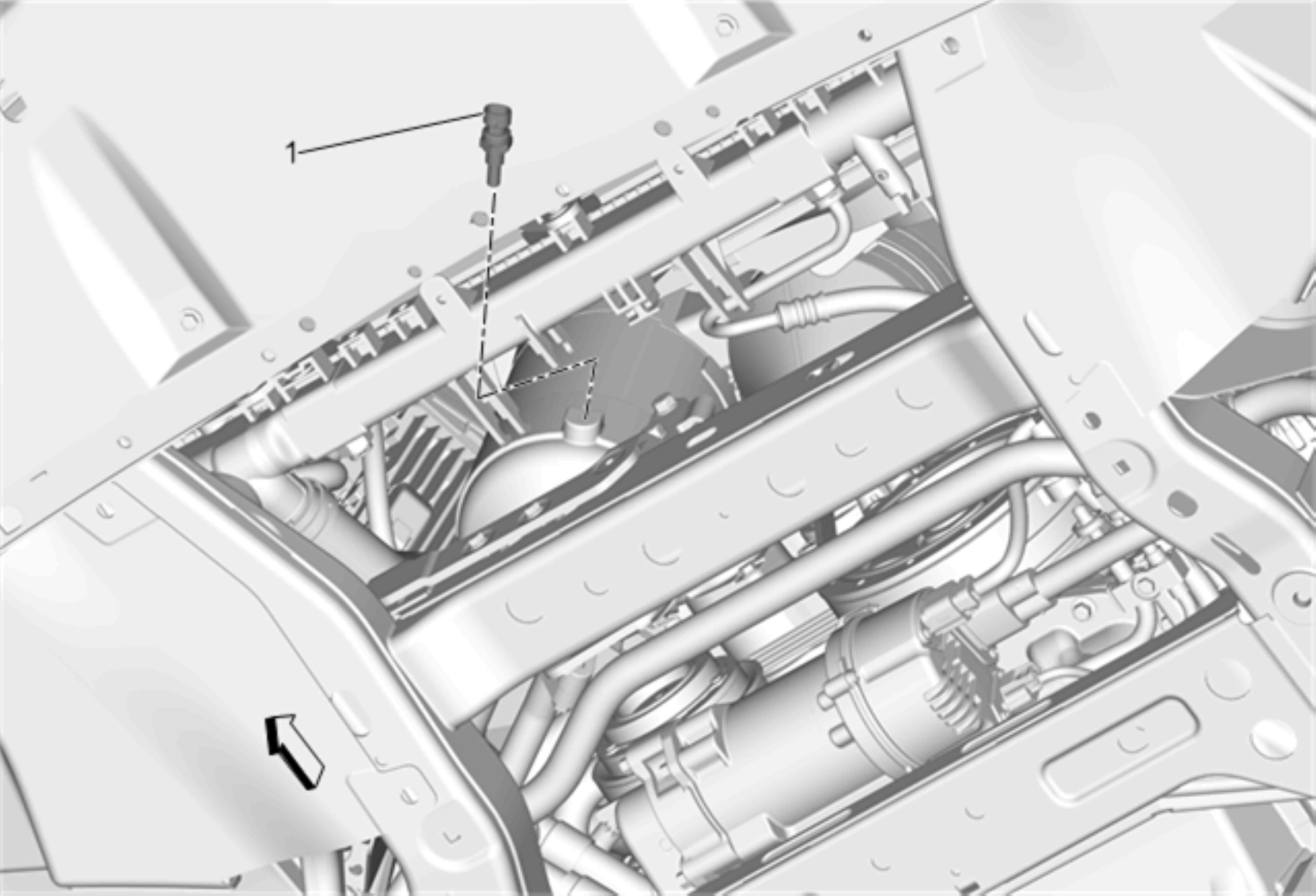

Fig 1: Engine Oil Temperature Gauge Sensor
GM3681520Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front compartment air deflector. Refer to Front Compartment Air Deflector Replacement .
  2. Drain the engine oil. Refer to Engine Oil and Oil Filter Replacement (LSA, LS3, L99) Engine Oil and Oil Filter Replacement (LS7) .
1 Engine Oil Temperature Gauge Sensor
CAUTION:

Refer to Component Fastener Tightening Caution .


Procedure
Disconnect the engine oil temperature gauge sensor electrical connector.
Tighten
20 N.m (15 lb ft)
