Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intake manifold covers. Refer to Intake Manifold Cover Replacement (Left Side) Intake Manifold Cover Replacement (Right Side) .
  2. Clean area around the oil sensor/switch before removing it.
    3. Fig 1: Identifying Vacuum Booster Hose
    GM63936Courtesy of GENERAL MOTORS COMPANY
  3. Remove the positive crankcase ventilation hose/pipe/tube. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Clean Air - LS7) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Dirty Air - LS7) .

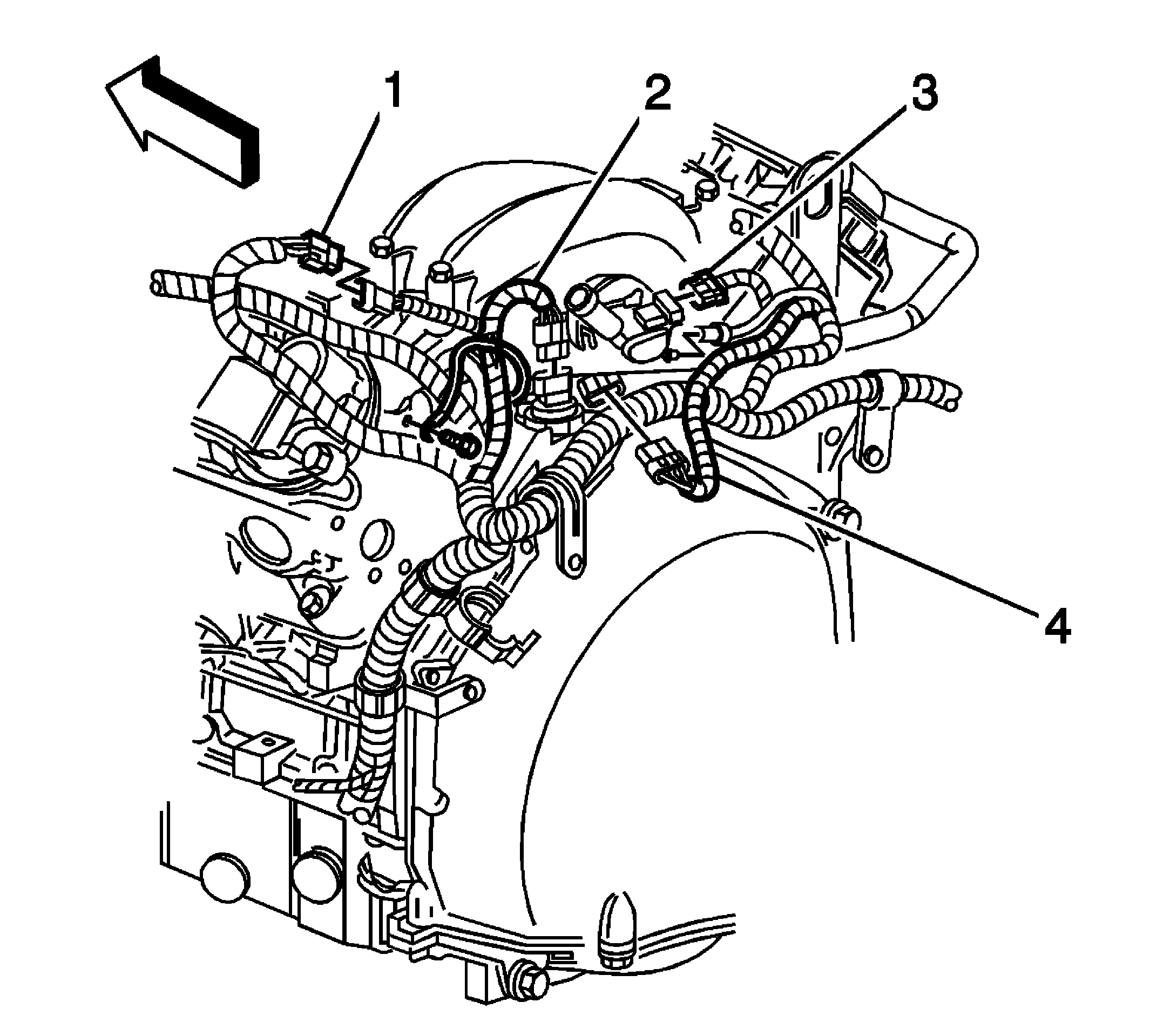

    4. Fig 2: Oil Pressure Sensor/Switch Electrical Connector & Engine Wiring Harness Ground Strap
    GM1656451Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the electrical connector for the oil pressure sensor/switch (2).

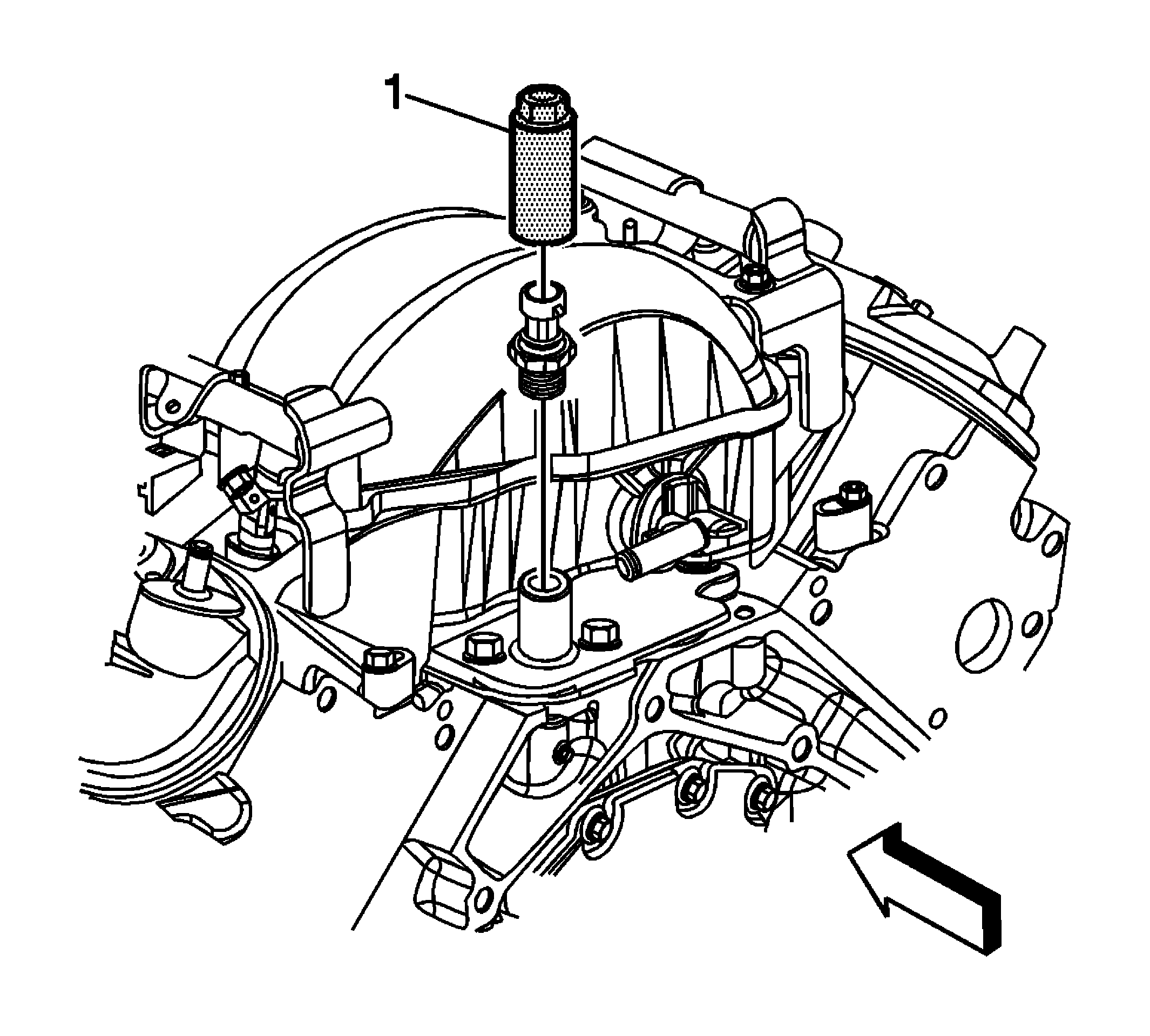

    5. Fig 3: Servicing Oil Pressure Sensor/Switch
    GM1658870Courtesy of GENERAL MOTORS COMPANY
  5. Using the J 41712  oil pressure sensor socket (1) , remove the oil pressure sensor/switch.
