Removal Procedure

WARNING: This page is about a different variant/trim than selected.

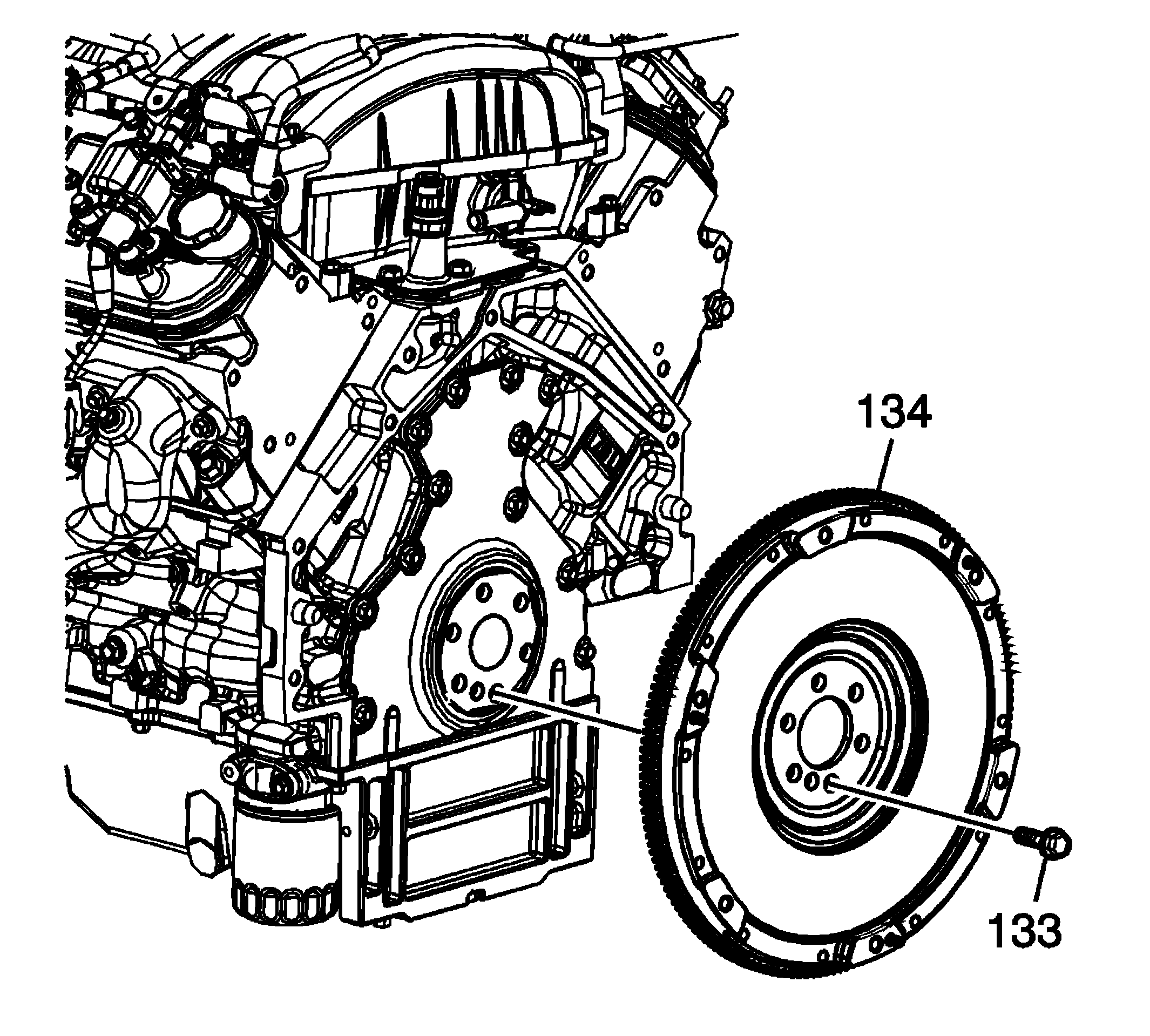

    Fig 1: View Of Flywheel & Bolts
    GM1552527Courtesy of GENERAL MOTORS COMPANY
  1. Remove the Clutch Assembly. Refer to Clutch Assembly Replacement (Tremec)Clutch Assembly Replacement (Aisin) .
  2. Remove the engine flywheel bolts (133) and the flywheel (134).
  3. Clean and inspect the flywheel. Refer to Engine Flywheel Cleaning and Inspection , . If the flywheel teeth are damaged, inspect the starter for proper operation. Replace the starter if you find excessive wear or damage to the starter drive. Refer to Starter Replacement (L99, LS3, LSA, LS7) .
