Installation Procedure

WARNING: This page is about a different variant/trim than selected.

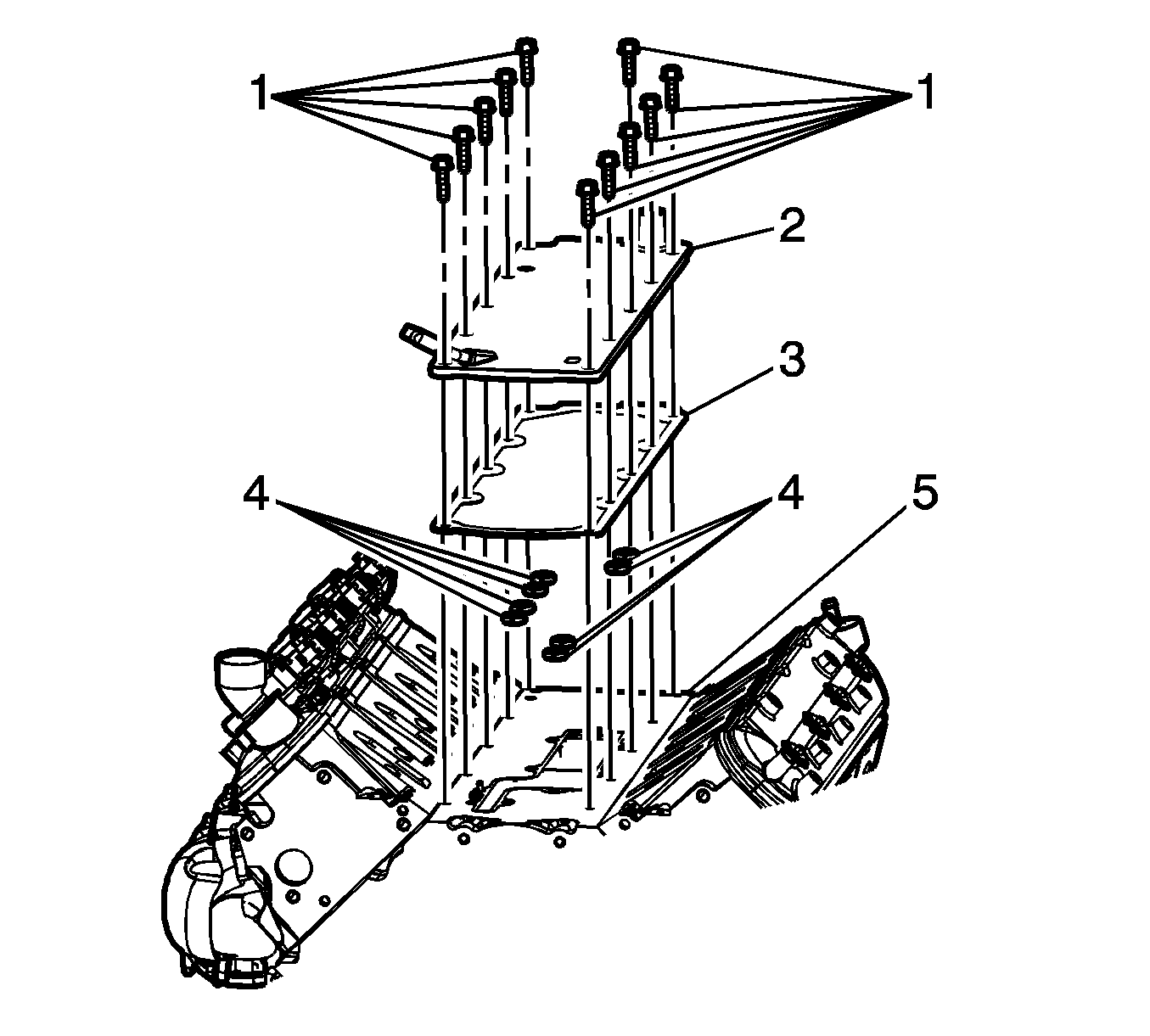

    Fig 1: Engine Valley Cover, Retaining Bolts, Gasket & O-Rings
    GM1468311Courtesy of GENERAL MOTORS COMPANY
  1. Install the O-rings (4) to the engine valley cover (2).
  2. Install the engine valley gasket (3).
  3. Install the engine valley cover (2).
  4. Install the retaining bolts (1).
    5. CAUTION:

    Refer to Fastener Caution .

  5. Tighten the engine valley retaining bolts to 25 N.m (18 lb ft).
  6. Install the supercharger. Refer to Supercharger and Gasket Replacement .
  7. Install the oil pressure switch. Refer to Engine Oil Pressure Sensor and/or Switch Replacement (LSA) .
