Drive Belt Tensioner Replacement - Accessory (LS7)

WARNING: This page is about a different variant/trim than selected.

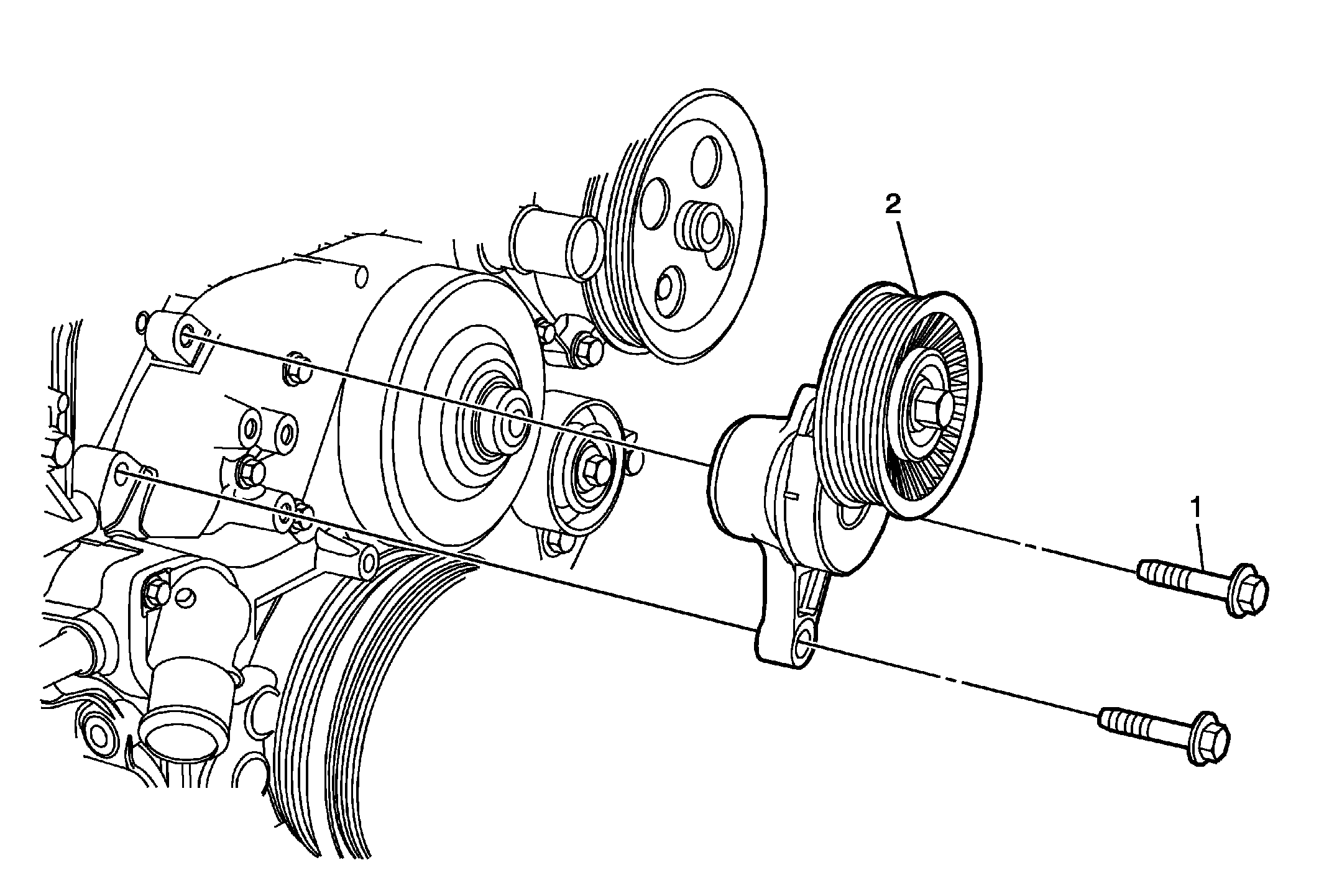

Fig 1: Drive Belt Tensioner - Accessory (LS7)
GM2182600Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the drive belt. Refer to Drive Belt Replacement - Accessory (LS7) .
1 Drive Belt Tensioner Fastener (Qty: 2)
CAUTION:

Refer to Component Fastener Tightening Caution .


Tighten
50 N.m (59 lb ft)
2 Drive Belt Tensioner
Procedure
Transfer components as necessary.
