Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. If equipped with an automatic transmission, remove the automatic transmission flexplate. Refer to Automatic Transmission Flex Plate Replacement .
  2. If equipped with a manual transmission, remove the flywheel. Refer to Engine Flywheel Replacement .

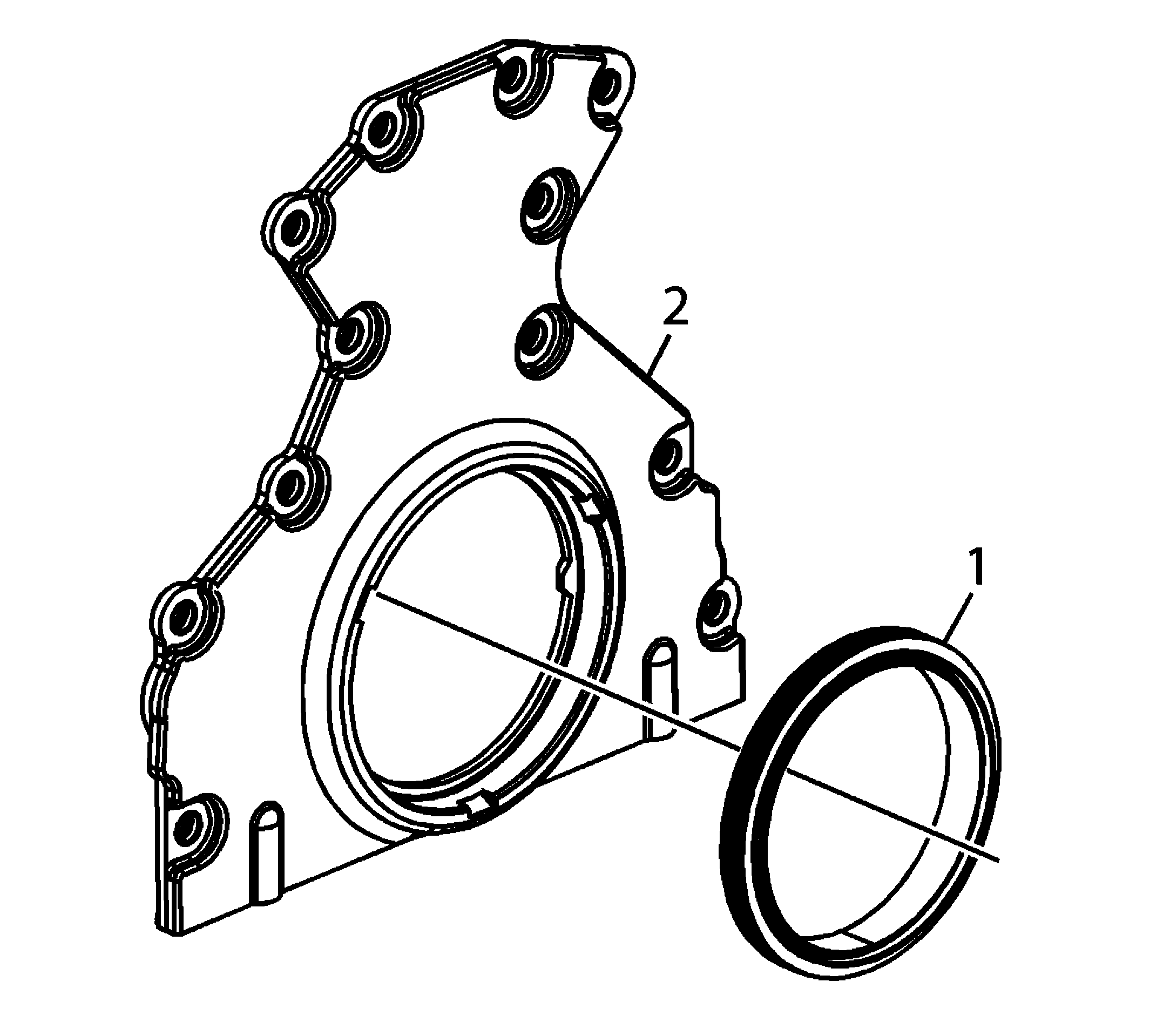

    3. Fig 1: Crankshaft Rear Oil Seal Housing And Seal
    GM3671568Courtesy of GENERAL MOTORS COMPANY
  3. Remove and discard the crankshaft rear oil seal (1) from the crankshaft rear oil seal housing (2).
