Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Camshaft
    GM1704626Courtesy of GENERAL MOTORS COMPANY
  1. Lubricate the camshaft journals and the bearings with clean engine oil.
  2. Install the camshaft sprocket bolt into the camshaft front bolt hole.
    3. NOTE:

    Using the bolt as a handle, carefully install the camshaft into the engine block.

  3. Remove the bolt from the front of the camshaft.
    4. Fig 2: Camshaft Retainer & Bolts
    GM1552492Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The gasket surface on the engine block should be clean and free of dirt and/or debris.

  4. Install the camshaft retainer (203) and bolts (204). Install the retainer with the sealing gasket facing the engine block.
    5. Fig 3: Identifying Camshaft Retainer Bolts
    GM1665445Courtesy of GENERAL MOTORS COMPANY
  5. Tighten the camshaft retainer bolts.
      CAUTION:

      Refer to Fastener Caution .

    • Tighten the first design hex head bolts (3) to 25 N.m (18 lb ft).
    • Tighten the second design TORX® head bolts (4) to 15 N.m (11 lb ft).
    6. Fig 4: Timing Belt Tensioner Retaining Pin
    GM1658249Courtesy of GENERAL MOTORS COMPANY
  6. Compress the timing chain tensioner guide and install the EN 46330  timing belt tensioner retaining pin.

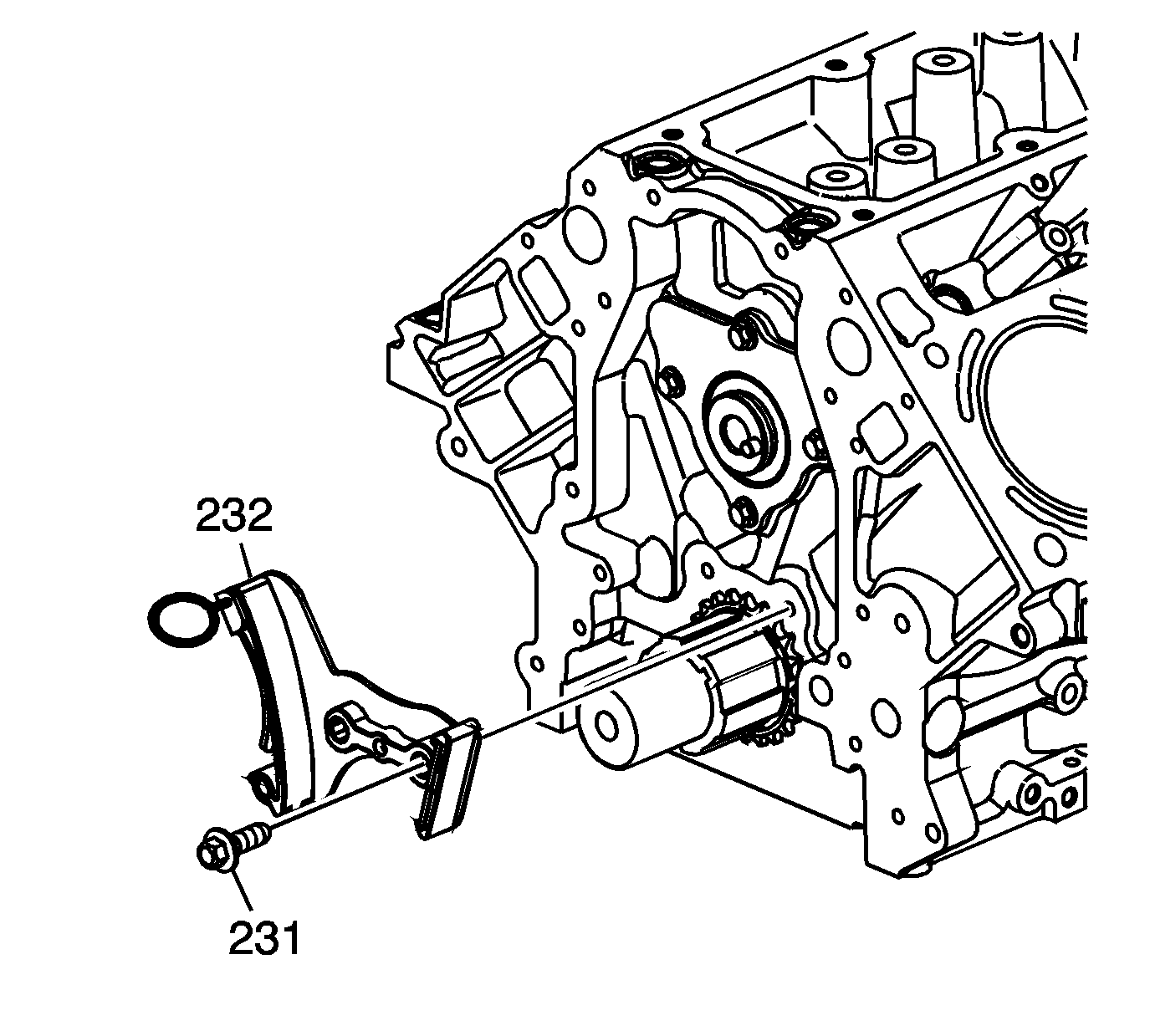

    7. Fig 5: View Of Timing Chain Tensioner & Left Side Bolt
    GM1670620Courtesy of GENERAL MOTORS COMPANY
  7. Install the timing chain tensioner (232) and left side bolt (231). Do not install the right side bolt at this time. The right side bolt will be installed after the camshaft position (CMP) actuator and chain have been installed onto the engine.
    8. Fig 6: Identifying Alignment Hole & Locating Pin
    GM1658240Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Properly locate the CMP actuator onto the locating pin of the camshaft.
    • The sprocket teeth and timing chain teeth must mesh.
    • The camshaft and the crankshaft sprocket alignment mark MUST be aligned properly.
    • Do not use the CMP solenoid valve again. Install a NEW valve during assembly.
  8. Identify the alignment hole (1) in the rear face of the CMP actuator and the locating pin (2) on the front face of the camshaft.
    9. Fig 7: Proper Installation Of CMP Actuator
    GM1714942Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Camshaft Position Actuator Removal and Installation Warning .

  9. Install the CMP actuator and timing chain. Align the hole in the rear face of the CMP actuator with the locating pin on the front face of the camshaft. If necessary, rotate the camshaft or crankshaft sprockets in order to align the timing marks. Use care to install the actuator completely onto the front of the camshaft. Position fingers onto the face of the actuator sprocket and push the actuator onto the front of the camshaft. Never push on the reluctor wheel when attempting to install the actuator.
    10. Fig 8: Inspecting For Proper Installation Of CMP Actuator & Timing Chain
    GM1670626Courtesy of GENERAL MOTORS COMPANY
  10. Place a straight edge across the front face of the engine block and inspect for proper installation of the CMP actuator and timing chain. With the CMP actuator properly and completely installed onto the front of the camshaft, the timing chain will not protrude beyond the front face of the engine block.
    11. Fig 9: View Of CMP Actuator Solenoid Valve
    GM1670622Courtesy of GENERAL MOTORS COMPANY
  11. Install a NEW CMP actuator solenoid valve (234). With the CMP actuator properly positioned onto the camshaft, the CMP actuator solenoid valve can be threaded completely into the camshaft using light hand pressure. Tighten by hand until snug.
    12. Fig 10: View Of CMP Actuator Alignment Mark & Crankshaft Sprocket Alignment Mark
    GM1670623Courtesy of GENERAL MOTORS COMPANY
  12. Inspect the sprockets for proper alignment. The mark on the CMP actuator sprocket (1) should be located in the 6 o'clock position and the mark on the crankshaft sprocket (2) should be located in the 12 o'clock position.

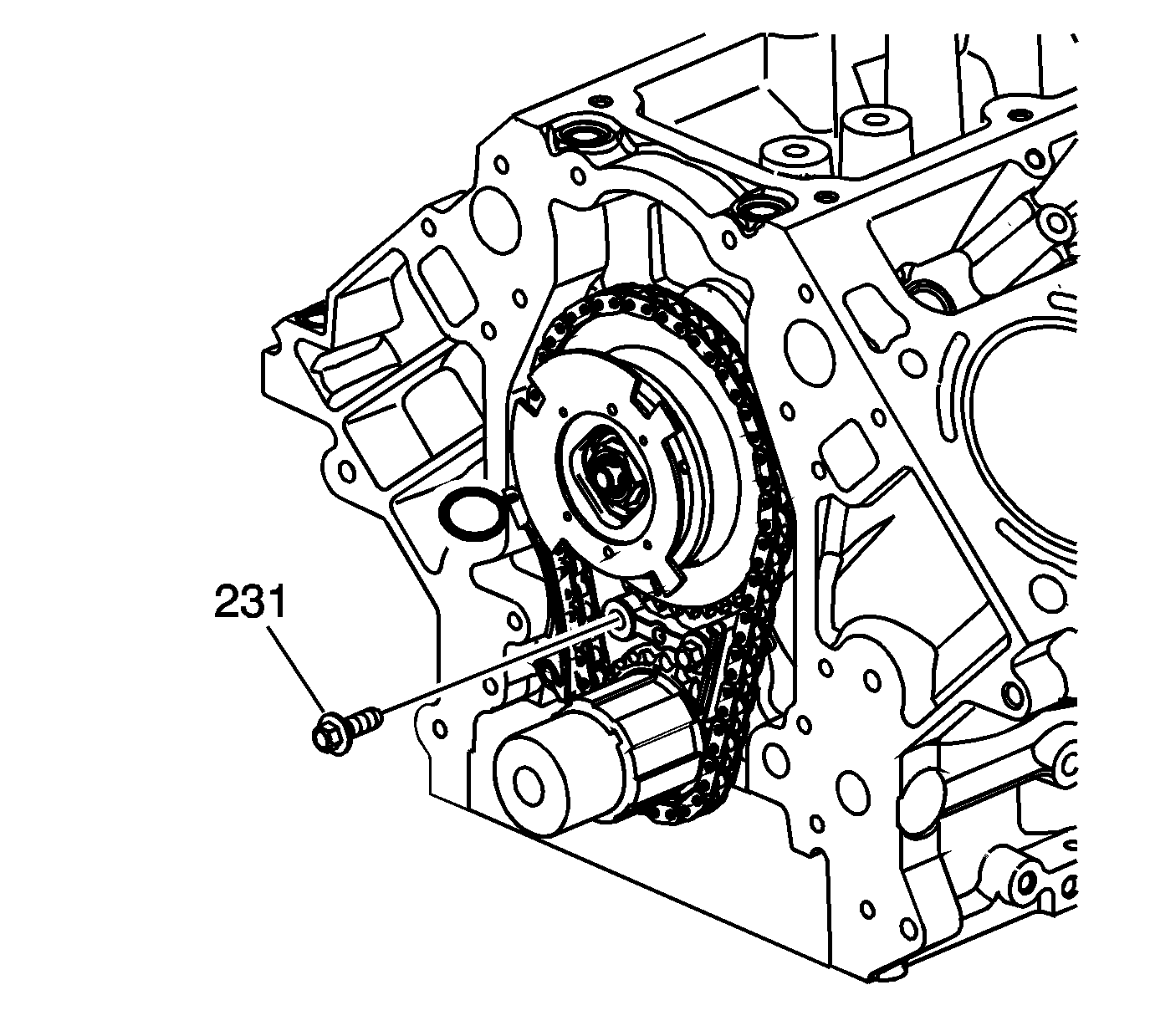

    13. Fig 11: View Of Timing Chain Tensioner Bolt
    GM1670624Courtesy of GENERAL MOTORS COMPANY
  13. Install the right side bolt (231) into the timing chain tensioner and tighten both bolts to 30 N.m (22 lb ft).
    14. Fig 12: Timing Belt Tensioner Retaining Pin
    GM1658253Courtesy of GENERAL MOTORS COMPANY
  14. Remove the EN 46330  timing belt tensioner retaining pin.
    15. Fig 13: Tightening The CMP Actuator Solenoid Valve
    GM1658245Courtesy of GENERAL MOTORS COMPANY
  15. Tighten the CMP actuator solenoid valve.
    1. Tighten the valve a first pass to 65 N.m (48 lb ft).
    2. Tighten the valve a final pass to 90 degrees using J 45059  angle meter.
    16. Fig 14: Flywheel Holder
    GM1658136Courtesy of GENERAL MOTORS COMPANY
  16. Remove the J 42386-A  flywheel holding tool.
  17. Install the starter motor. Refer to Starter Replacement (L99, LS3, LSA, LS7)
  18. Install the oil pump, screen, and crankshaft oil deflector. Refer to Oil Pump, Screen, and Crankshaft Oil Deflector Replacement (L99, LS3,LSA) .
    19. NOTE:

    If camshaft replacement is required, the valve lifters must also be replaced.

  19. Install the valve lifters. Refer to Valve Lifter Replacement (Without AFM) Valve Lifter Replacement (With AFM) .
  20. Install the radiator support.
