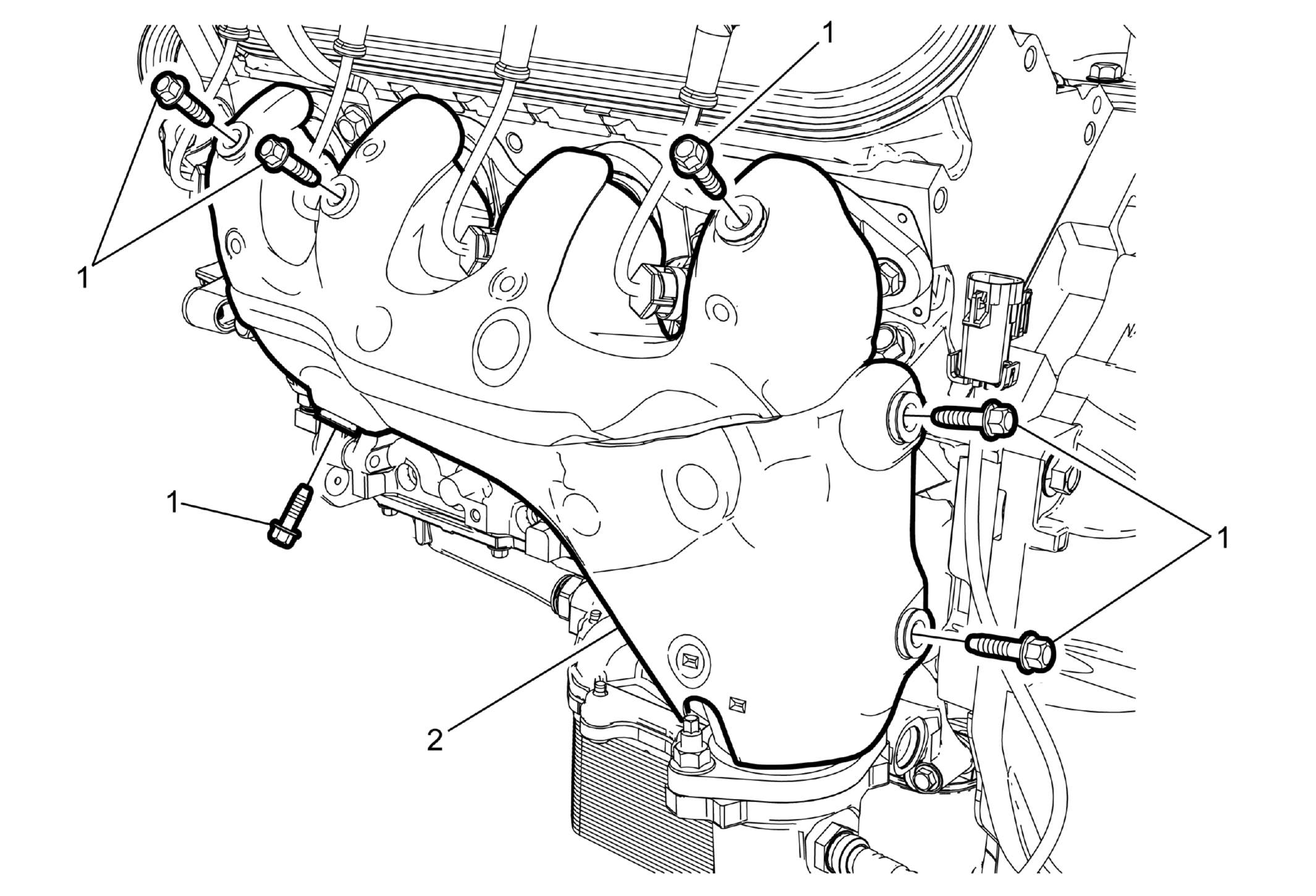

Exhaust Manifold Heat Shield Replacement - Left Side (LS7)
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (Left Side)Intake Manifold Cover Replacement (Right Side) . |
|
| 1 | Exhaust Manifold Heat Shield Fasteners (Qty: 6)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Exhaust Manifold Heat Shield |
