Preliminary Procedures
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the front compartment air deflector. Refer to Front Compartment Air Deflector Replacement
.
- Drain the cooling system. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
|

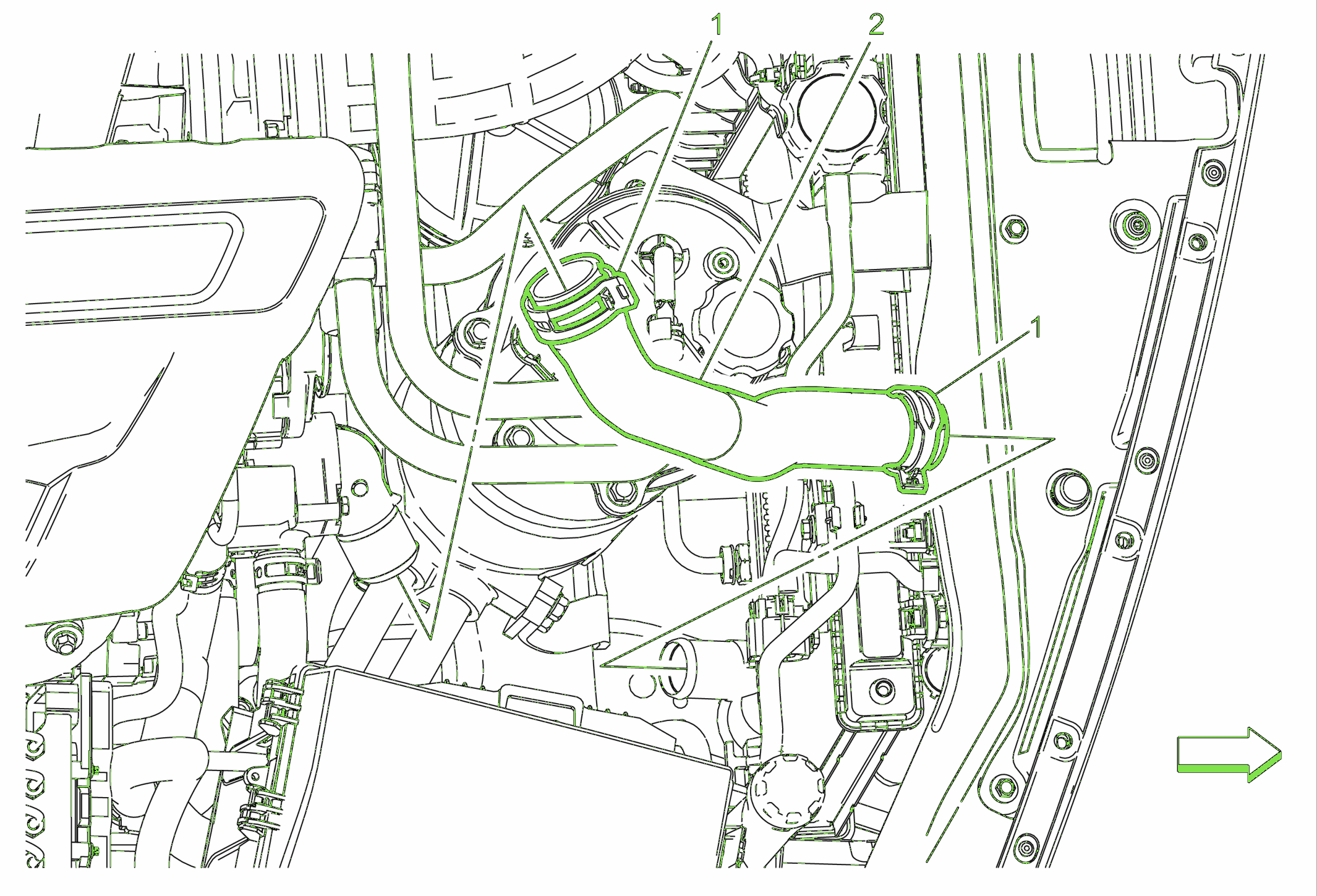

| 1 |
Radiator Outlet Hose Clamp (Qty 2)
Procedure
Disengage tension on the radiator outlet hose clamps using the BO-38185
hose clamp pliers.
Special Tools
BO-38185
Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools
. |
| 2 |
Radiator Outlet Hose Procedure
- Remove the radiator outlet hose from the radiator.
- Remove the radiator outlet hose from the water pump inlet.
- Install the radiator outlet hose to the water pump inlet.
- Install the radiator outlet hose to the radiator.
- Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
- Inspect the cooling system for leaks.
|
