Preliminary Procedures
- Remove the air cleaner upper housing. Refer to Air Cleaner Element Replacement
.
- Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement
.
- Drain the cooling system. Refer to Cooling System Draining and Filling (LFX, Static Fill) Cooling System Draining and Filling (GE 47716) .
|

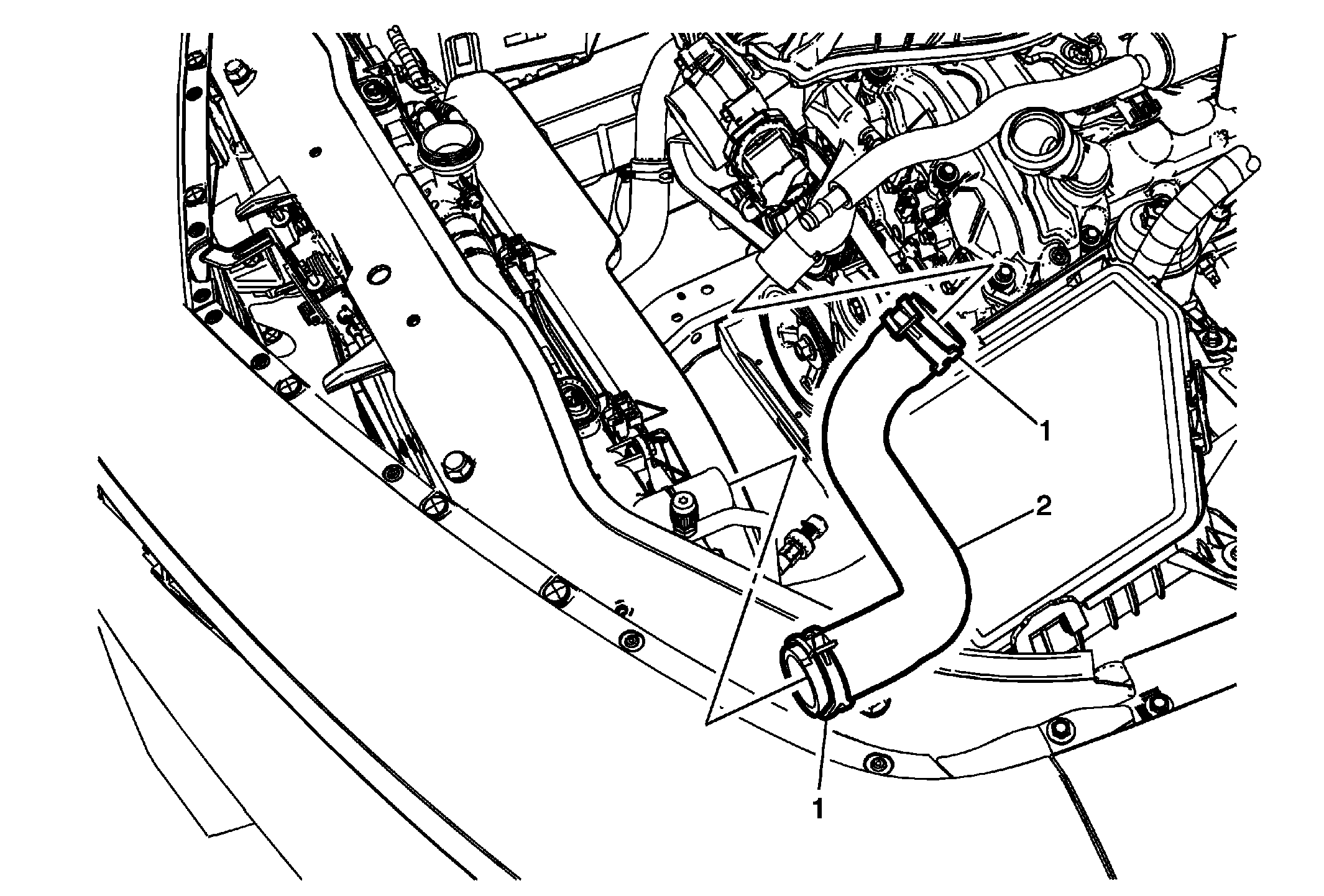

| 1 |
Radiator Inlet Hose Clamp (Qty: 2)
Procedure
Reposition the radiator inlet hose clamps using the BO-38185
hose clamp pliers.
Special Tools
BO-38185
Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools
. |
| 2 |
Radiator Inlet Hose Procedure
- Remove the radiator inlet hose from the radiator.
- Remove the radiator inlet hose from the water pump housing.
- Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (LFX, Static Fill) Cooling System Draining and Filling (GE 47716) .
- Inspect the cooling system for leaks. Refer to Cooling System Leak Testing .
|
