Engine Coolant Fan Motor Replacement (LS7 - Rear)

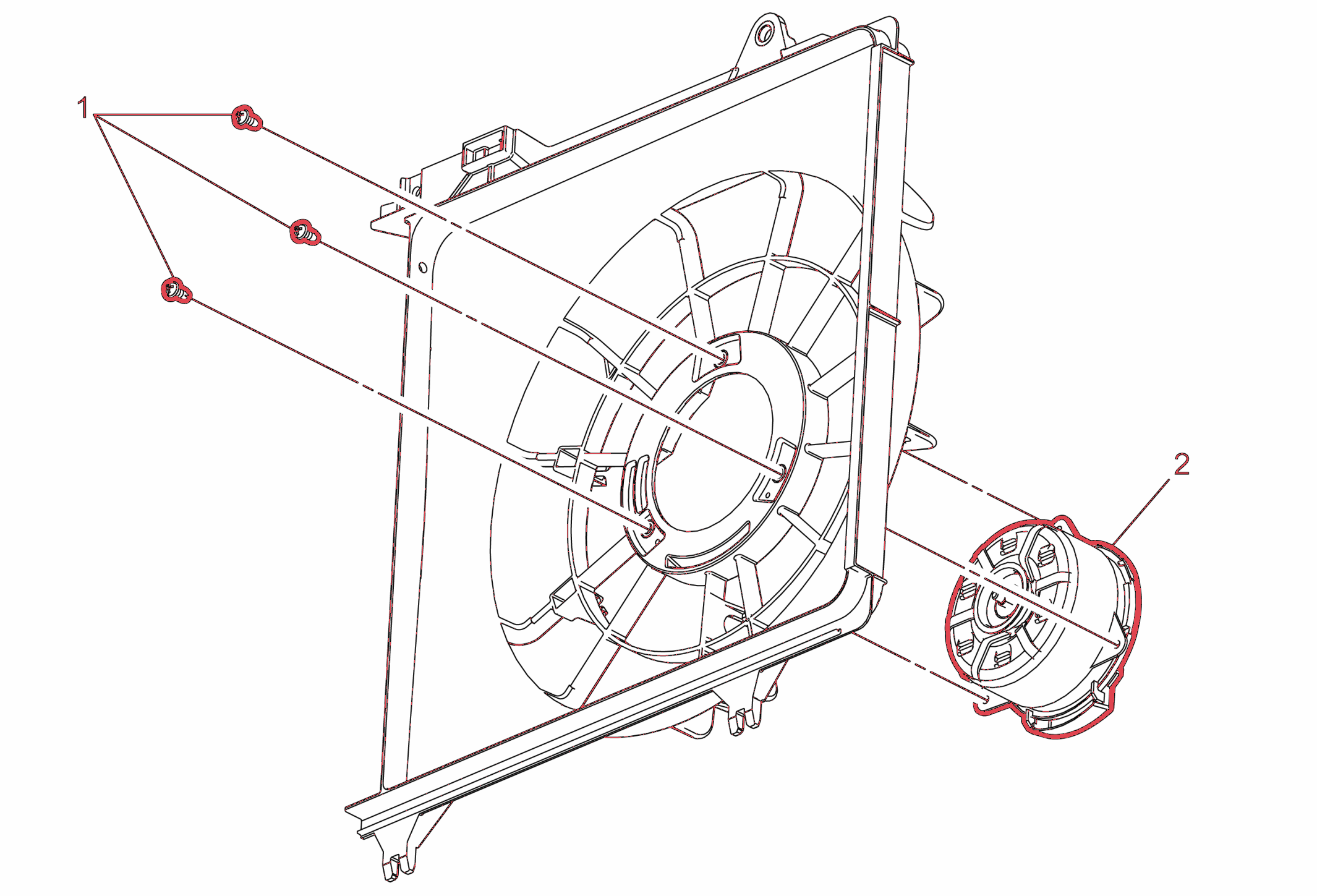

Fig 1: Engine Coolant Fan Motor (LS7 - Rear)
GM3631284Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the fan blade. Refer to Fan Blade Replacement (LS7 - Rear)  .
1 Engine Coolant Fan Motor Fastener (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Engine Coolant Fan Motor
