Coolant Recovery Reservoir Replacement (Except LS7)

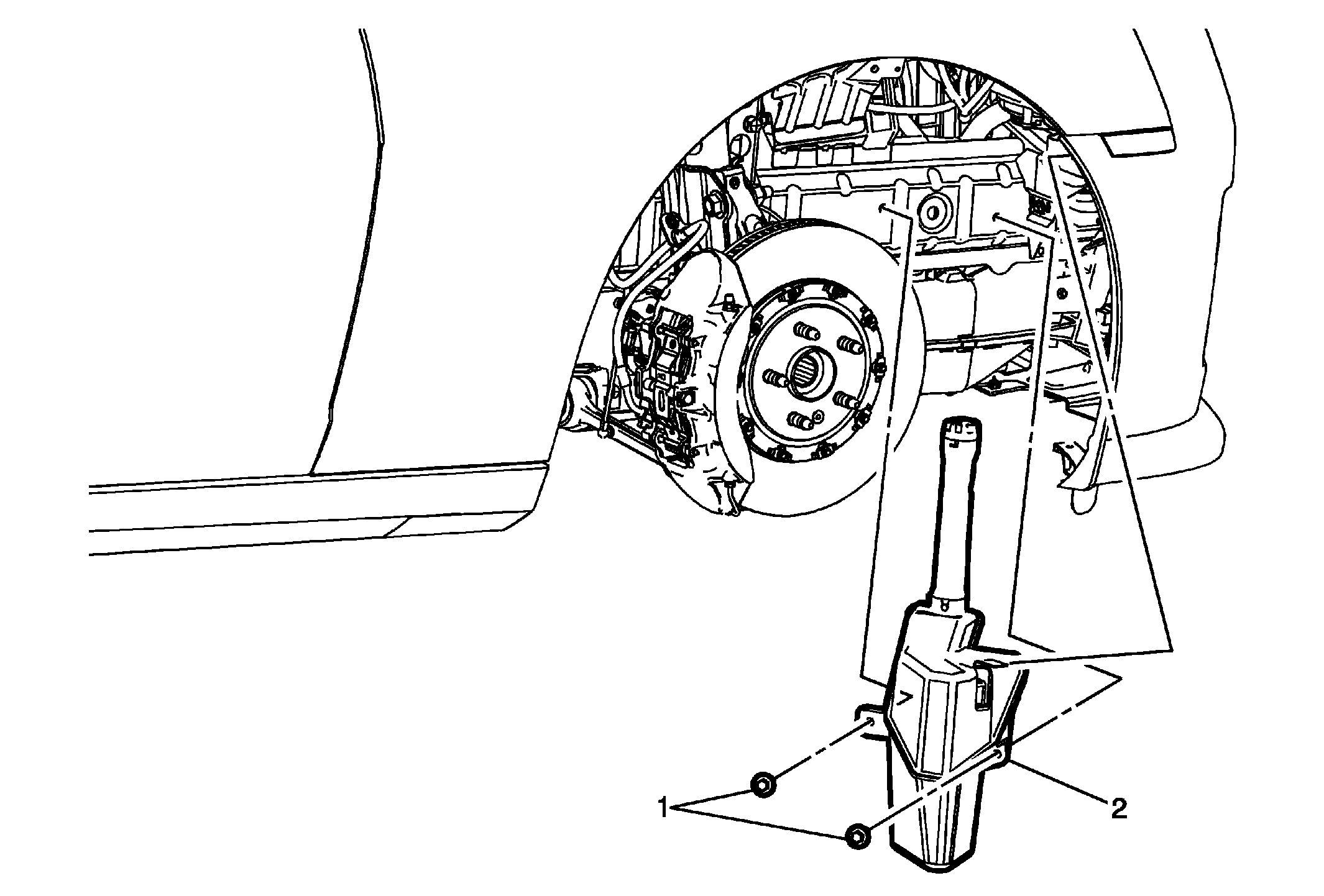

Fig 1: Coolant Recovery Reservoir (Except LS7)
GM2715082Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (LFX, Static Fill) Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
  2. Remove the radiator overflow hose. Refer to Radiator Overflow Hose Replacement .
  3. Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (ZL1)Front Wheelhouse Liner Replacement (Without ZL1, Z28)Front Wheelhouse Liner Replacement (Z28)
1 Coolant Recovery Reservoir Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
17 N.m (13 lb ft)
2 Coolant Recovery Reservoir
