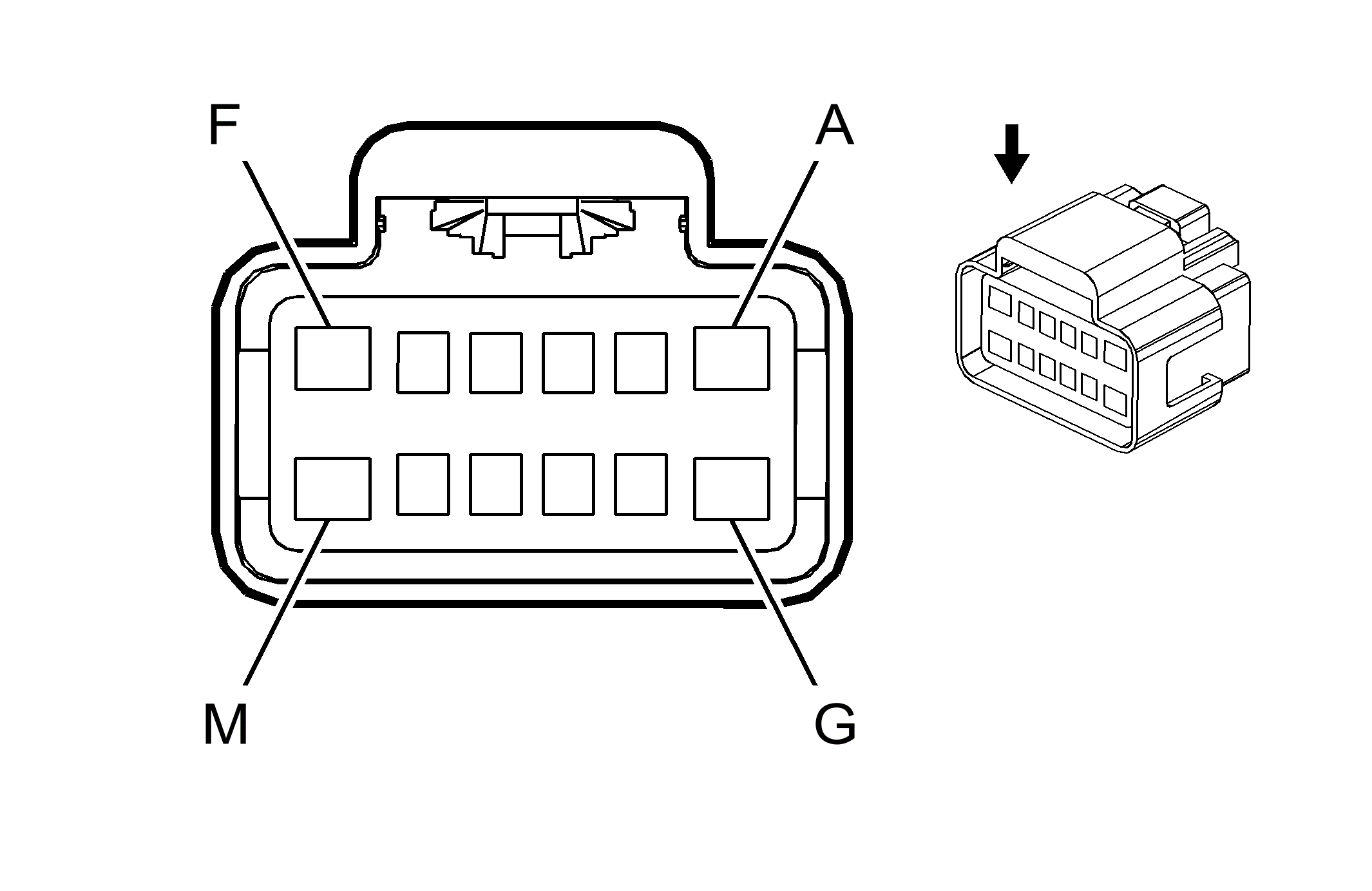

X302 Instrument Panel Harness to Floor Console Harness


Connector Part Information Harness Type: Instrument Panel OEM Connector: 13677808 Service Connector: 13576929 Description: 12-Way F 150, 280 GT FBT Series (BK)	Connector Part Information Harness Type: Floor Console OEM Connector: 15336209 Service Connector: Service by Harness Assembly- See Part Catalog Description: 12-Way M GT Mixed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	13575492	J-35616-2A (GY)	J-38125-29	Not Available	Not Available	Not Available	Not Available
II	13575497	J-35616-4A (PU)	J-38125-29	Not Available	Not Available	Not Available	Not Available
III	Not Required	J-35616-3 (GY)	Not Required	Not Required	Not Required	Not Required	Not Required
IV	Not Required	J-35616-5 (PU)	Not Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
A	1	D-GN	801	II	-	Retained Accessory Power Fuse Control	A	1	D-GN	801	IV	-
B	-	-	-	-	-	Low Speed GMLAN Serial Data	B	0.5	D-GN	5060	III	-
C	-	-	-	-	-	Ground	C	0.5	BK	1750	III	-
D	0.35	PK	2060	I	-	Auxiliary Detection Signal	D	0.35	PK	2060	III	-
E	-	-	-	-	-	Not Occupied	E	-	-	-	-	-
F	1	BK	1450	II	-	Ground	F	1	BK	1450	IV	-
G	-	-	-	-	-	Battery Positive Voltage	G	0.5	RD/WH	3240	IV	-
H	0.35	D-BU	5843	I	-	Auxiliary Audio Common Signal (3) Auxiliary Audio Common Signal	H	0.35 0.35	D-GN/WH D-BU	3376 5843	III	- -
J	0.35	L-GN	5839	I	-	Left Auxiliary Audio Signal (3) Left Auxiliary Audio Signal (2)	J	0.35 0.35	YE L-GN	3377 5839	III	- -
K	0.35	D-GN/WH	5841	I	-	Right Auxiliary Audio Signal (3) Right Auxiliary Audio Signal (2)	K	0.35 0.35	TN/WH D-GN/WH	3378 5841	III	- -
L	0.35	BARE	5842	I	-	Auxiliary Audio Low Reference (3) Auxiliary Audio Screen (2)	L	0.35 0.35	BARE BARE	3375 5842	III	- -
M	-	-	-	-	-	Not Occupied	M	-	-	-	-	-
