X210 Body Extension Harness to Body Harness

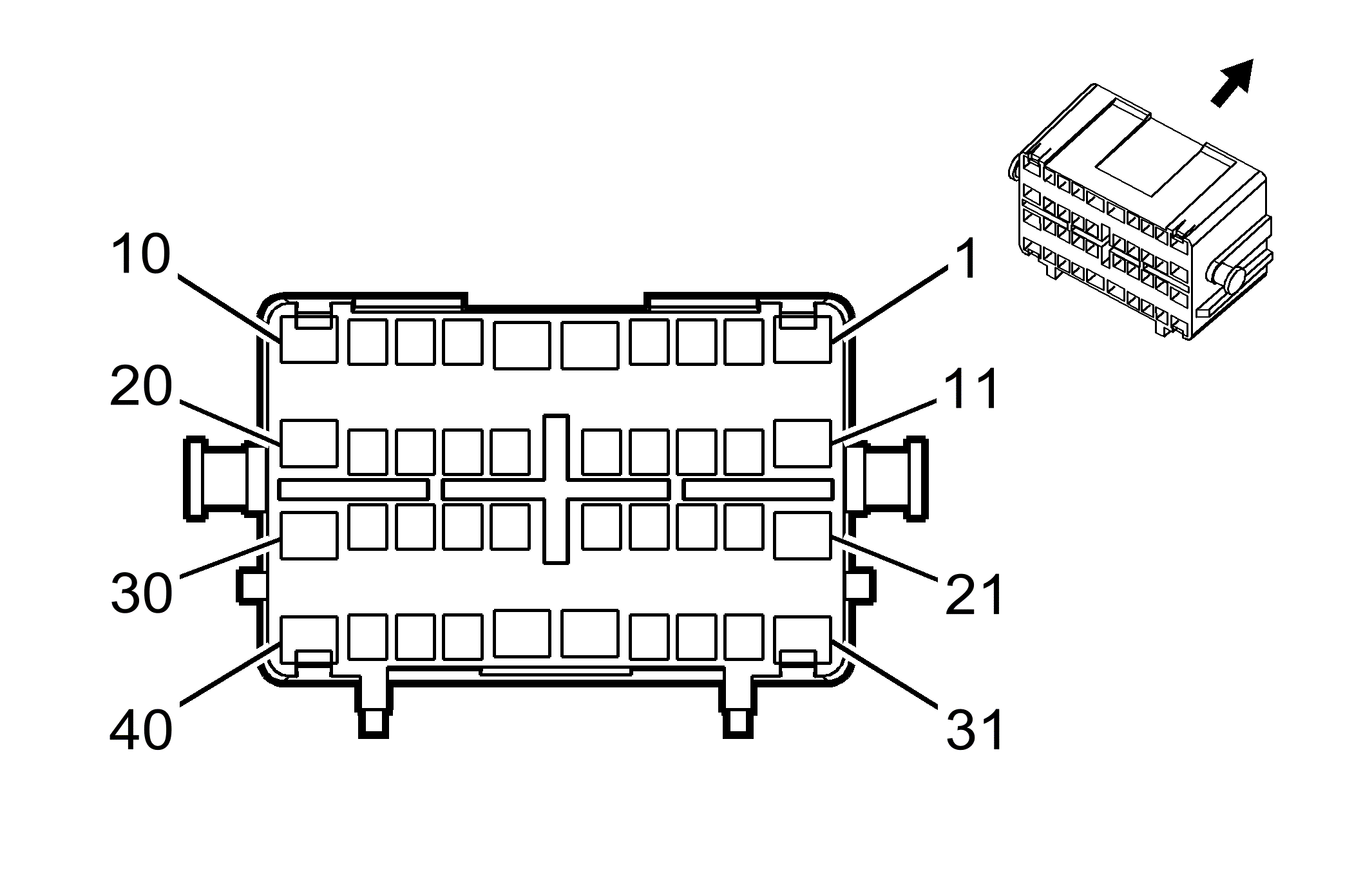

GM2891703

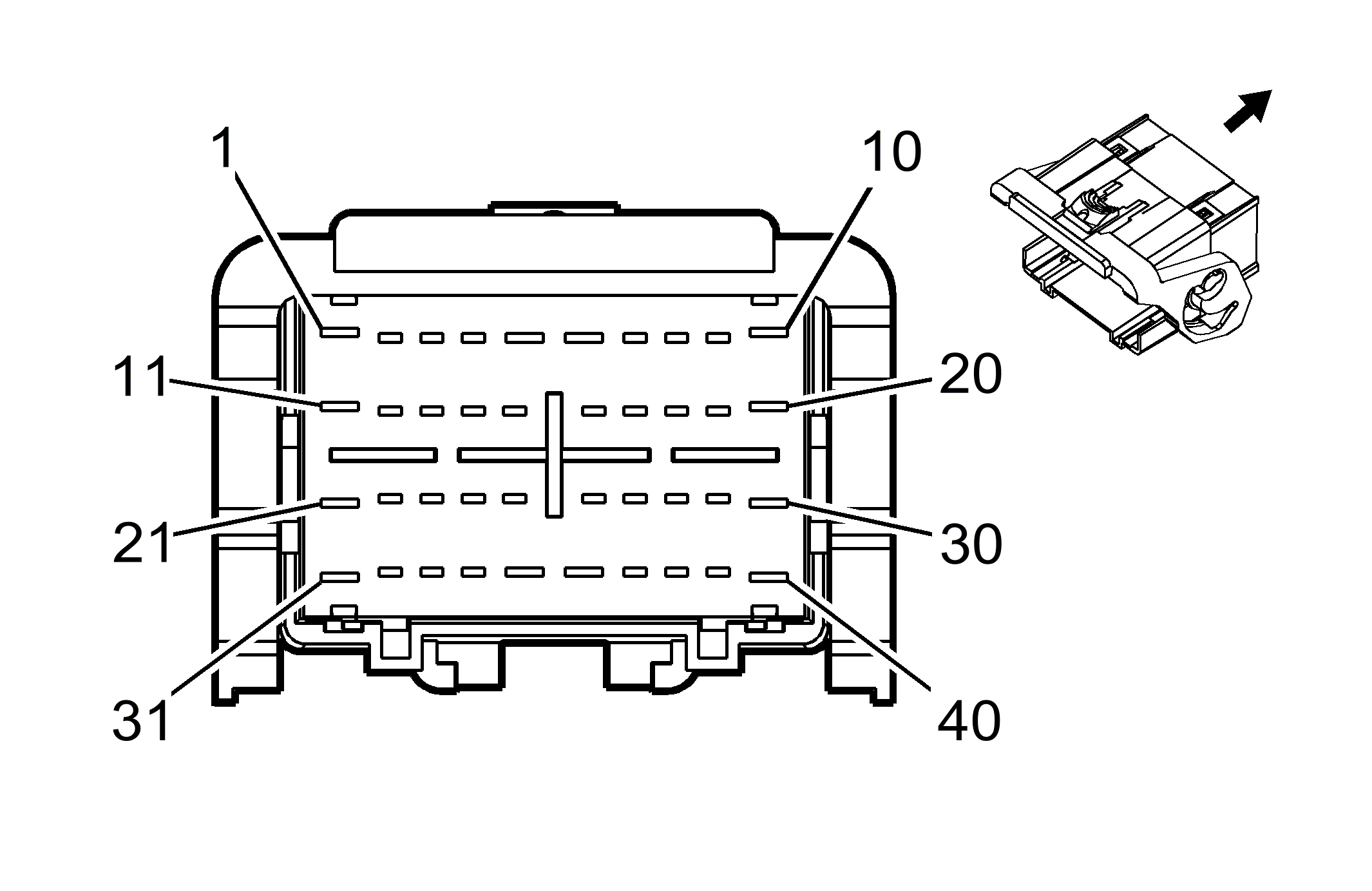

GM2891666
Connector Part Information
  • Harness Type: Body Extension
  • OEM Connector: 13717758
  • Service Connector: Service by Harness Assembly- See Part Catalog
  • Description: 40-Way F 150, 280 GT Series (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 13717762
  • Service Connector: 19300588
  • Description: 40-Way M 150, 280 GT Series (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I Not Required J-35616-2A (GY) Not Required Not Required Not Required Not Required Not Required
II Not Required J-35616-4A (PU) Not Required Not Required Not Required Not Required Not Required
III 13575478 J-35616-5 (PU) J-38125-553 15304724 Delphi 8 2 A
IV 13575502 J-35616-3 (GY) J-38125-553 15304702 Delphi 19 E 4
V 13575502 J-35616-3 (GY) J-38125-553 15304702 Delphi 19 E C
VI 13575505 J-35616-5 (PU) J-38125-553 15304722 Delphi 8 E C
VII 13575507 J-35616-5 (PU) J-38125-553 15304724 Delphi 8 2 A
VIII 13575510 J-35616-5 (PU) J-38125-553 15304724 Delphi 8 A D
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.5 PK 339 II - Run/Crank Ignition 1 Voltage 1 0.5
0.5		 PK
PK		 339
339		 VI
III		 -
-
2 0.5 TN/WH 1384 I - Selective Ride Control Switch Signal 2 0.5 TN/WH 1384 IV -
3 0.5 WH 2282 I - Headlamp Washer Relay Control 3 0.5 WH 2282 IV -
4 0.35 PK/WH 1970 I - Headlamp Low Beam Relay Control 4 0.35 PK/WH 1970 V -
5 3 RD/WH 1240 II - Battery Positive Voltage 5 3 RD/WH 1240 VIII -
6 3 RD/WH 1340 II - Battery Positive Voltage 6 3 RD/WH 1340 VIII -
7 0.35 D-GN/WH 1317 I - Fog Lamp Relay Control 7 0.35 D-GN/WH 1317 V -
8 0.5 TN 884 I - Wheel Speed Sensor Signal Left Rear 8 0.5 TN 884 IV -
9 0.5 OG 885 I - Wheel Speed Sensor Low Reference Left Rear 9 0.5 OG 885 IV -
10 0.8 RD/WH 440 II - Battery Positive Voltage 10 0.8 RD/WH 440 VII -
11 0.8 RD/WH 3440 II - Battery Positive Voltage 11 0.8 RD/WH 3440 VII -
12 0.35 D-GN 890 I - Fuel Tank Pressure Sensor Signal 12 0.35 D-GN 890 V -
13 0.35 WH 193 I - Rear Defog Relay Control 13 0.35 WH 193 V -
14 0.35 GY 2709 I - Fuel Tank Pressure Sensor 5 Volt Reference 14 0.35 GY 2709 V -
15 0.35 D-BU 1936 I - Primary Fuel Level Sensor Signal 15 0.35 D-BU 1936 V -
16 0.35 BN/WH 6281 I - Fuel Level Sensor Low Reference 16 0.35 BN/WH 6281 V -
17 0.35 L-BU 1937 I - Secondary Fuel Level Sensor Signal 17 0.35 L-BU 1937 V -
18 0.5 BN 882 I - Wheel Speed Sensor Signal Right Rear 18 0.5 BN 882 IV -
19 0.5 WH 883 I - Wheel Speed Sensor Low Reference Right Rear 19 0.5 WH 883 IV -
20 0.5 TN/WH 1969 II - Headlamp High Beam Relay Control 20 0.5 TN/WH 1969 VI -
21 0.5 RD/WH 2440 II - Battery Positive Voltage 21 0.5 RD/WH 2440 VI -
22 0.35 PK 239 I - Run/Crank Ignition 1 Voltage 22 0.35 PK 239 V -
23 0.35 D-GN/WH 465 I - Fuel Pump Primary Relay Control 23 0.35 D-GN/WH 465 V -
24 0.35 TN 28 I - Horn Relay Control 24 0.35 TN 28 V -
25 0.35 OG 2267 I - Mirror Heating Element Control 25 0.35 OG 2267 V -
26 0.35 PK 139 I - Run/Crank Ignition 1 Voltage 26 0.35 PK 139 V -
27 0.35 TN 860 I - Front Windshield Wiper Switch High Signal 27 0.35 TN 860 V -
28 0.35 GY 91 I - Windshield Wiper Motor Relay Coil Control 28 0.35 GY 91 V -
29 0.35 OG 2268 I - Windshield Washer Relay Control 29 0.35 OG 2268 V -
30 0.5 RD/WH 1940 II - Battery Positive Voltage 30 0.5 RD/WH 1940 VI -
31 0.5 WH 1310 II - EVAP Canister Vent Solenoid Control 31 0.35 WH 1310 VI -
32 0.35 YE 5199 I - Run/Crank Relay Coil Control 32 0.35 YE 5199 V -
33 0.35 PK 539 I - Run/Crank Ignition 1 Voltage 33 0.35 PK 539 V -
34 0.35 PK 1139 I - Run/Crank Ignition 1 Voltage 34 0.35 PK 1139 V -
35 1 RD/WH 5140 II - Battery Positive Voltage 35 1 RD/WH 5140 VII -
36 3 RD/WH 3540 II - Battery Positive Voltage 36 3 RD/WH 3540 VIII -
37 0.35
0.5		 L-GN/WH
WH		 1210
1612		 I -
-		 Left Rear Strut Position Sensor Signal
Brake Lining Wear Sensor Signal Left Front		 37 0.35
0.5		 L-GN/WH
WH		 1210
1612		 V
IV		 -
-
38 0.35 L-GN/BK 1209 I - Left Rear Strut Position Sensor Low Reference 38 0.35 L-GN/BK 1209 V -
39 0.35 OG/BK 1208 I - Left Rear Strut Position Sensor 5 Volt Reference 39 0.35 OG/BK 1208 V -
40 - - - - - Not Occupied 40 - - - - -
