X108 Forward Lamp Harness to Front Fog Lamp Harness

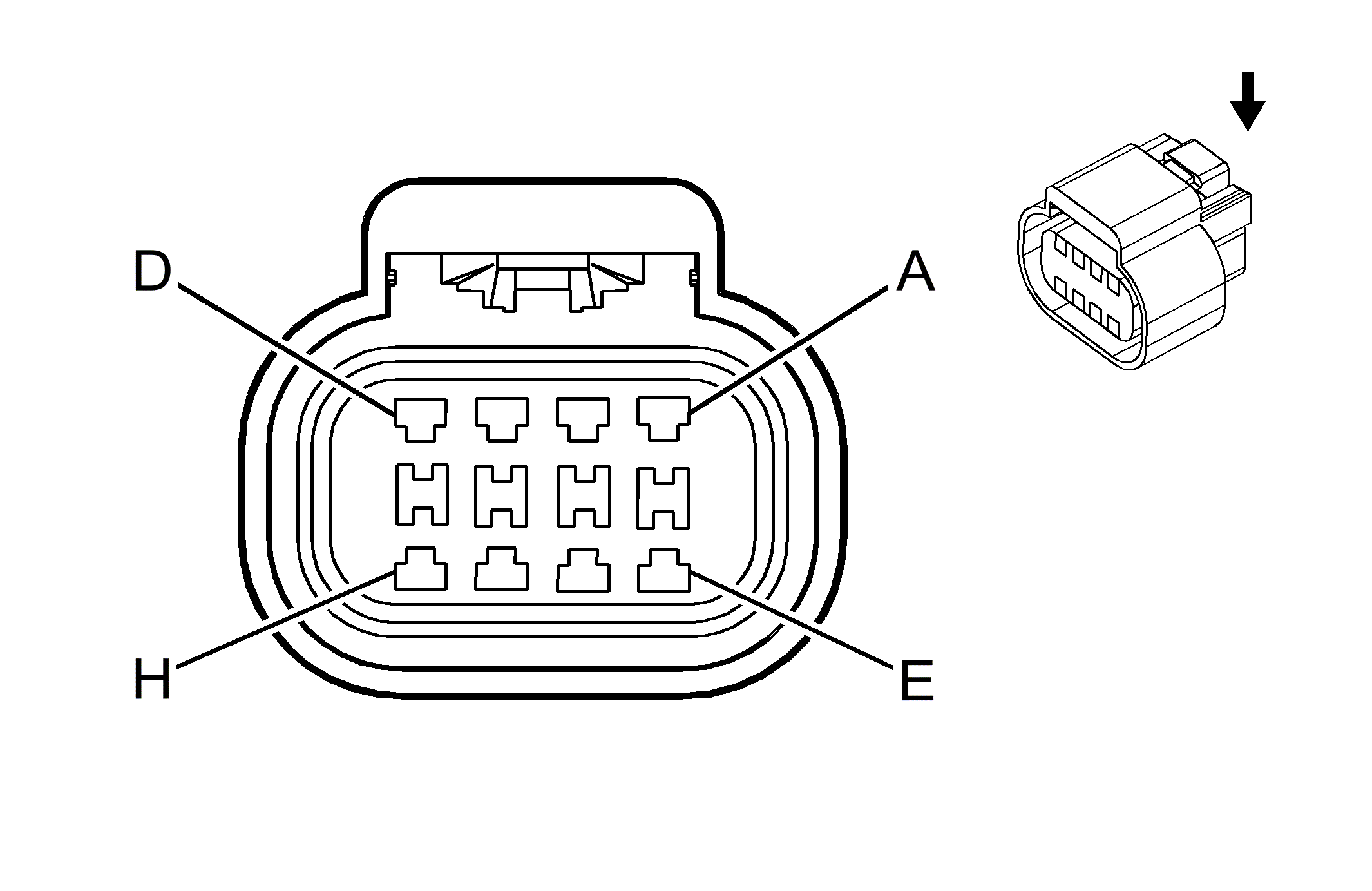

Connector Part Information Harness Type: Forward Lamp OEM Connector: 13706547 Service Connector: 19300587 Description: 8-Way F 150 GT Series, Sealed (BK)	Connector Part Information Harness Type: Front Fog Lamp OEM Connector: 15326839 Service Connector: Service by Harness Assembly- See Part Catalog Description: 8-Way M 150 GT Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Required	J-35616-2A (GY)	Not Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-3 (GY)	Not Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
A	0.5	BN/L-BU	6993	I	-	Rear Left Park Lamp Control Electronically Controlled	A	0.5	BN/L-BU	6993	II	-
B	0.5	PU	2234	I	-	Front Fog Lamp Control	B	0.5	PU	2234	II	-
C	0.5 0.5	PU L-BU	2234 7538	I	- -	Front Fog Lamp Control Left Front DRL Control	C	0.5 0.5	PU L-BU	2234 7538	II	- -
D	0.8	BK	1050	I	-	Ground	D	0.5 0.8	BK BK	1050 1050	II	- -
E	0.5	BN/GY	6995	I	-	Rear Right Park Lamp Control Electronically Controlled	E	0.5	BN/GY	6995	II	-
F	0.5 0.5	PU D-BU	2234 7539	I	- -	Front Fog Lamp Control Right Front DRL Control	F	0.5 0.5	PU D-BU	2234 7539	II	- -
G	0.5	PU	2234	I	-	Front Fog Lamp Control	G	0.5	PU	2234	II	-
H	0.8	BK	1150	I	-	Ground	H	0.5 0.8	BK BK	1150 1150	II	- -
