X104 Forward Lamp Harness to Instrument Panel Harness

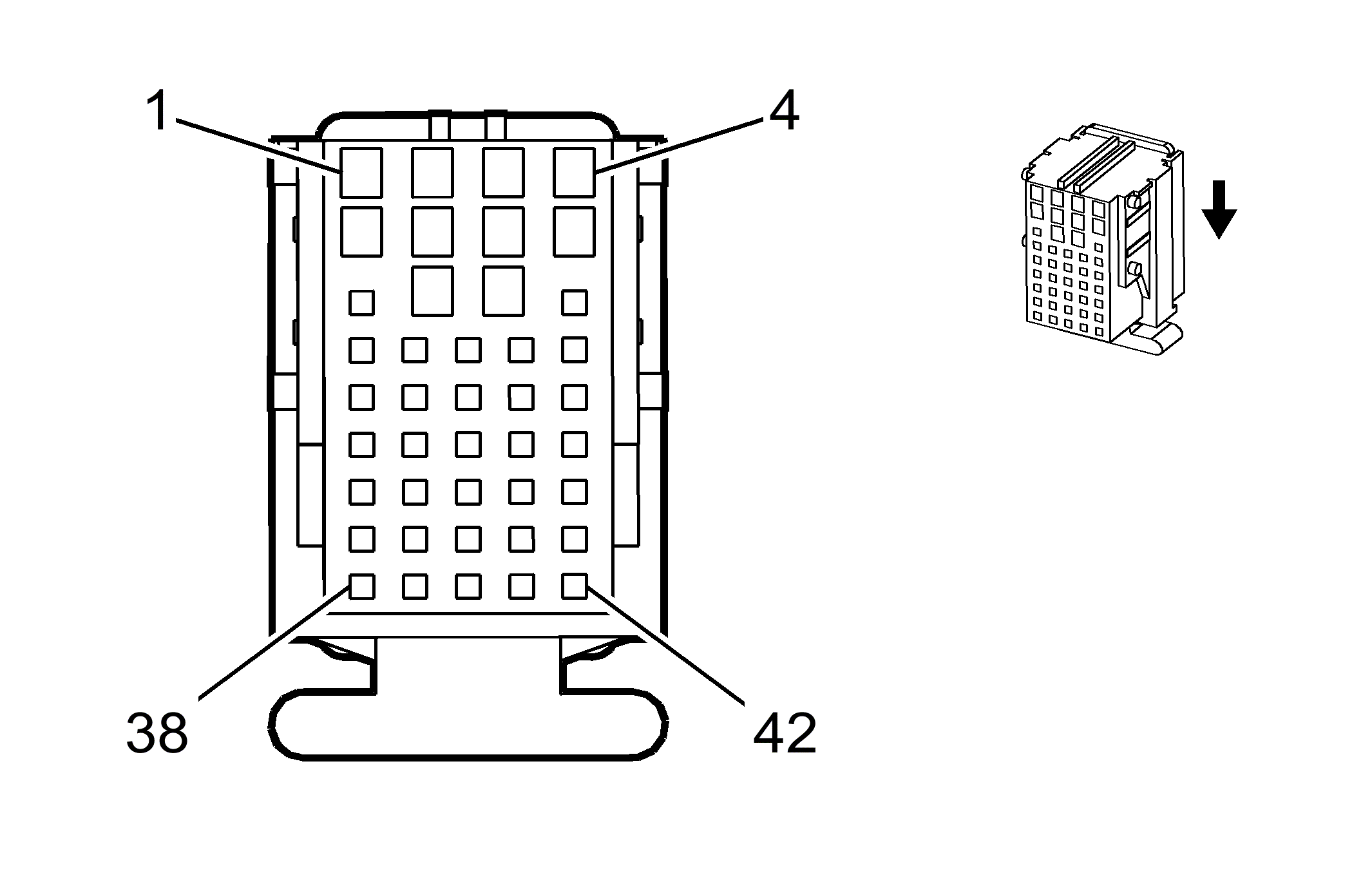

GM2282933

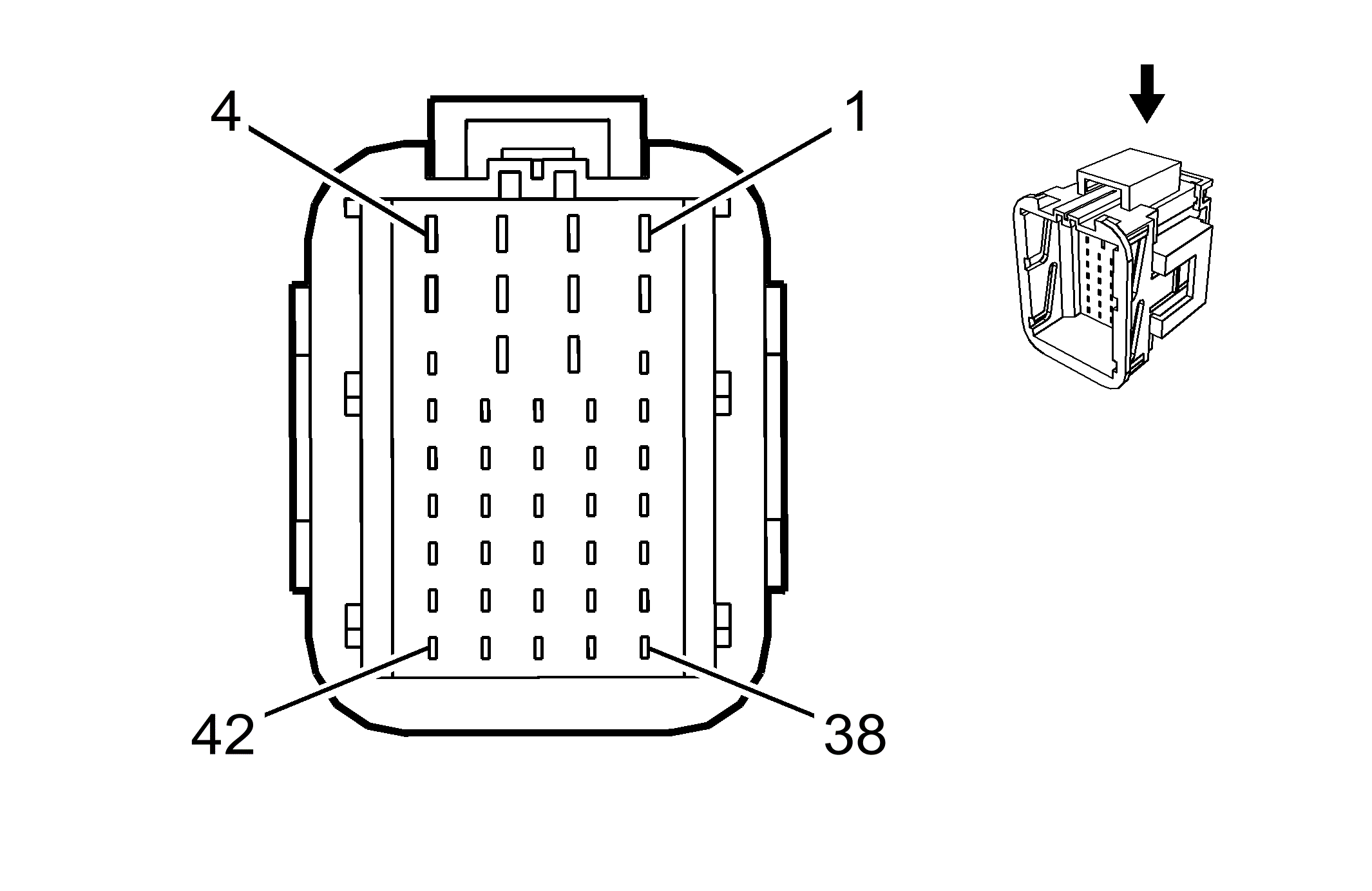

GM2282935
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 15458508
  • Service Connector: 13577798
  • Description: 42-Way F 1.2 MT II Series, Sealed (BK)
 Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 13606818
  • Service Connector: 13577799
  • Description: 42-Way M 1.2 MT II Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13576353 J-35616-14 (GN) J-38125-560 4-964274-1 Lear 25 E A
II 13576368 J-35616-14 (GN) J-38125-560 4-969005-1 Lear 16 E 1
III 13576369 J-35616-14 (GN) J-38125-560 Not Available Not Available Not Available Not Available
IV 13579753 J-35616-14 (GN) J-38125-560 Not Available Not Available Not Available Not Available
V 13580830 J-35616-4A (PU) J-38125-36 Not Available Not Available Not Available Not Available
VI 13580834 J-35616-14 (GN) J-38125-560 Not Available Not Available Not Available Not Available
VII 13575350 J-35616-5 (PU) J-38125-36 1-962915-3 Yazaki 15 E 1
VIII 13576348 J-35616-34 (YE) J-38125-560 964265-2 Lear 28 E 2
IX 13576348 J-35616-34 (YE) J-38125-560 964265-2 Lear 28 E C
X 13576349 J-35616-3 (GY) J-38125-560 Not Available Not Available Not Available Not Available
XI 13581350 J-35616-34 (YE) J-38125-560 963898-3 Delphi 24 E C
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.35 L-BU 5986 V - Serial Data Communication Enable 1 0.5 L-BU 5986 VII -
2 0.5 L-BU/WH 1314 V - Left Front Turn Signal Lamp Control 2 0.8 L-BU/WH 1314 VII -
3 0.5 D-BU/WH 1315 V - Right Front Turn Signal Lamp Control 3 0.8 D-BU/WH 1315 VII -
4 0.75 D-BU/WH 1107 V - Left Front Damping Servo Control 4 0.8 L-BU/WH 1107 VII -
5 0.5
0.8		 D-BU
TN/WH		 7539
312		 V -
-		 Right Front DRL Control
Right Headlamp Low Beam Control		 5 0.8 D-BU 7539 VII -
6 0.35 PU/WH 1205 V - Left Front Strut Position Sensor 5 Volt Reference 6 0.35 PU/WH 1205 VII -
7 0.75 GY 1113 V - Left Front Damping Servo Control 7 0.8 GY 1113 VII -
8 0.5
0.8		 L-BU
YE		 7538
712		 V -
-		 Left Front DRL Control
Left Headlamp Low Beam Control		 8 0.8 L-BU 7538 VII -
9 0.5 L-BU/WH 6311 I - Cruise/ETC/TCC Brake Signal 9 0.5 L-BU/WH 6311 VIII -
10 0.35 L-BU/BK 1206 V - Left Front Strut Position Sensor Low Reference 10 0.35 L-BU/BK 1206 VII -
11 0.35 TN/WH 1207 V - Left Front Strut Position Sensor Signal 11 0.35 TN/WH 1207 VII -
12 0.5 D-GN 2087 II - Combined Vehicle Inertial Sensor Supply Voltage 12 0.8 D-GN 2087 IX -
13 0.5 D-GN/WH 636 II - Outside Ambient Air Temperature Sensor Signal 13 0.5 D-GN/WH 636 VIII -
14 0.5 YE 61 II - Outside Ambient Temperature Sensor Low Reference 14 0.5 YE 61 VIII -
15 0.5 BN/WH 419 II - Check Engine Indicator Control 15 0.5 BN/WH 419 VIII -
16 0.5 BN/L-BU 6993 II - Rear Left Park Lamp Control Electronically Controlled 16 0.5 BN/L-BU 6993 VIII -
17 0.5 BN/GY 6995 II - Rear Right Park Lamp Control Electronically Controlled 17 0.5 BN/GY 6995 VIII -
18 0.5 D-BU 1161 IV - Accelerator Pedal Position Signal (1) 18 0.5 D-BU 1161 XI -
19 0.5 WH/BK 1164 IV - Accelerator Pedal Position 5 Volt Reference (1) 19 0.5 WH/BK 1164 XI -
20 0.5 BN 1271 IV - Accelerator Pedal Position Low Reference (1) 20 0.5 BN 1271 XI -
21 0.5 L-BU 1162 IV - Accelerator Pedal Position Signal (2) 21 0.5 L-BU 1162 XI -
22 0.5 TN 1274 IV - Accelerator Pedal Position 5 Volt Reference (2) 22 0.5 TN 1274 XI -
23 0.5 PU 1272 IV - Accelerator Pedal Position Low Reference (2) 23 0.5 PU 1272 XI -
24 0.35
0.75		 GY
GY		 7599
1117		 III
VI		 -
-		 Siren Control
Right Front Damping Servo Control		 24 0.5
0.8		 GY
GY		 7599
1117		 VIII
IX		 -
-
25 0.75 D-BU/WH 1116 VI - Right Front Damping Servo Control 25 0.8 L-BU/WH 1116 IX -
26 0.35 D-BU 5985 III - Accessory Wakeup Serial Data 26 0.5 D-BU 5985 VIII -
27 0.5 PK/BK 109 II - Hood Ajar Switch Signal 27 0.5 PK/BK 109 VIII -
28 0.35 D-BU 6105 III - High Speed GMLAN Serial Data (+) (2) 28 0.5 D-BU 6105 VIII -
29 0.35 L-BU 6106 III - High Speed GMLAN Serial Data (-) (2) 29 0.5 L-BU 6106 VIII -
30 0.5 TN 6109 IV - Clutch Apply Sensor 5 Volt Reference 30 0.5 TN 6109 XI -
31 0.5 WH 6110 IV - Clutch Apply Sensor Low Reference 31 0.5 WH 6110 XI -
32 0.5 YE 6111 IV - Brake Position Sensor Signal
Clutch Apply Sensor Signal		 32 0.5
0.5		 YE
YE		 5380
6111		 XI -
-
33 0.35 YE 354 III - Left Front Discriminating Sensor Signal 33 0.5 YE 354 VIII -
34 0.35 TN/OG 5045 III - Left Front Discriminating Sensor Low Reference 34 0.5 TN/OG 5045 VIII -
35 0.35 PU/WH 1211 III - Right Front Strut Position Sensor 5 Volt Reference 35 0.35 PU/WH 1211 X -
36 0.35 D-GN 1409 III - Right Front Discriminating Sensor Signal 36 0.5 D-GN 1409 VIII -
37 0.35 GY 5600 III - Right Front Discriminating Sensor Low Reference 37 0.5 GY 5600 VIII -
38 0.35 TN/BK 2500 III - High Speed GMLAN Serial Data (+) (1) 38 0.5 TN/BK 2500 VIII -
39 0.35 TN 2501 III - High Speed GMLAN Serial Data (-) (1) 39 0.5 TN 2501 VIII -
40 0.8 YE 196 VI - Windshield Wiper Motor Park Switch Signal 40 0.5 YE 196 VIII -
41 0.35 L-BU/BK 1212 III - Right Front Strut Position Sensor Low Reference 41 0.35 L-BU/BK 1212 X -
42 0.35 TN/WH 1213 III - Right Front Strut Position Sensor Signal 42 0.35 TN/WH 1213 X -
