X103 Forward Lamp Harness to Body Extension Harness

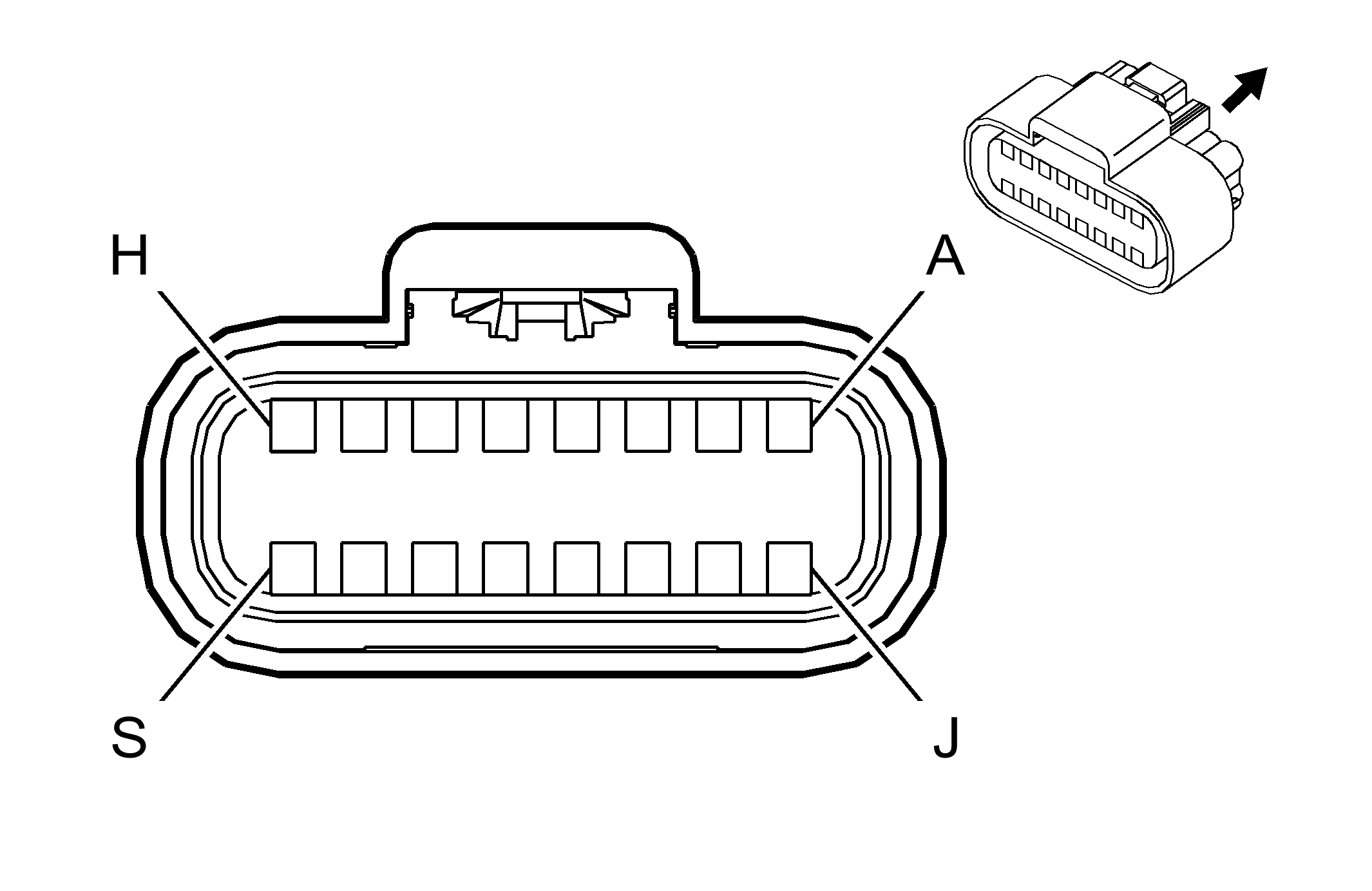

GM2444701
GM632345
Connector Part Information
  • Harness Type: Forward Lamp
  • OEM Connector: 13681771
  • Service Connector: 13578973
  • Description: 16-Way F 150 GT Series, Sealed (BK)
 Connector Part Information
  • Harness Type: Body Extension
  • OEM Connector: 15326867
  • Service Connector: Service by Harness Assembly- See Part Catalog
  • Description: 16-Way M 150 Series, Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Core Crimp Insulation Crimp
I 13587385 J-35616-2A (GY) J-38125-29 15496531 Delphi 8 E A
II 19300595 J-35616-2A (GY) J-38125-29 15496531 Delphi 8 2 A
III Not Required J-35616-3 (GY) Not Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
A 0.5 BN 882 I - Wheel Speed Sensor Signal Right Rear A 0.5 BN 882 III -
B 0.5 TN 884 I - Wheel Speed Sensor Signal Left Rear B 0.5 TN 884 III -
C 0.35
0.5		 L-GN/BK
TN/WH		 1209
1384		 I -
-		 Left Rear Strut Position Sensor Low Reference
Selective Ride Control Switch Signal		 C 0.35
0.5		 L-GN/BK
TN/WH		 1209
1384		 III -
-
D 0.8 RD/WH 440 II - Battery Positive Voltage D 0.8 RD/WH 440 III -
E 0.35 L-BU 1937 I - Secondary Fuel Level Sensor Signal E 0.35 L-BU 1937 III -
F 0.35 D-GN/WH 465 I - Fuel Pump Primary Relay Control F 0.35 D-GN/WH 465 III -
G 0.35
0.5		 L-GN/WH
WH		 1210
1612		 I -
-		 Left Rear Strut Position Sensor Signal
Brake Lining Wear Sensor Signal Left Front		 G 0.35
0.5		 L-GN/WH
WH		 1210
1612		 III -
-
H - - - - - Not Occupied H - - - - -
J 0.5 WH 883 I - Wheel Speed Sensor Low Reference Right Rear J 0.5 WH 883 III -
K 0.5 OG 885 I - Wheel Speed Sensor Low Reference Left Rear K 0.5 OG 885 III -
L 0.5 WH 1310 I - EVAP Canister Vent Solenoid Control L 0.5 WH 1310 III -
M 0.35 D-GN 890 I - Fuel Tank Pressure Sensor Signal M 0.35 D-GN 890 III -
N 0.35 GY 2709 I - Fuel Tank Pressure Sensor 5 Volt Reference N 0.35 GY 2709 III -
P 0.35 D-BU 1936 I - Primary Fuel Level Sensor Signal P 0.35 D-BU 1936 III -
R 0.35 BN/WH 6281 I - Fuel Level Sensor Low Reference R 0.35 BN/WH 6281 III -
S 0.35 OG/BK 1208 I - Left Rear Strut Position Sensor 5 Volt Reference S 0.35 OG/BK 1208 III -
