Front Compartment Air Deflector Replacement

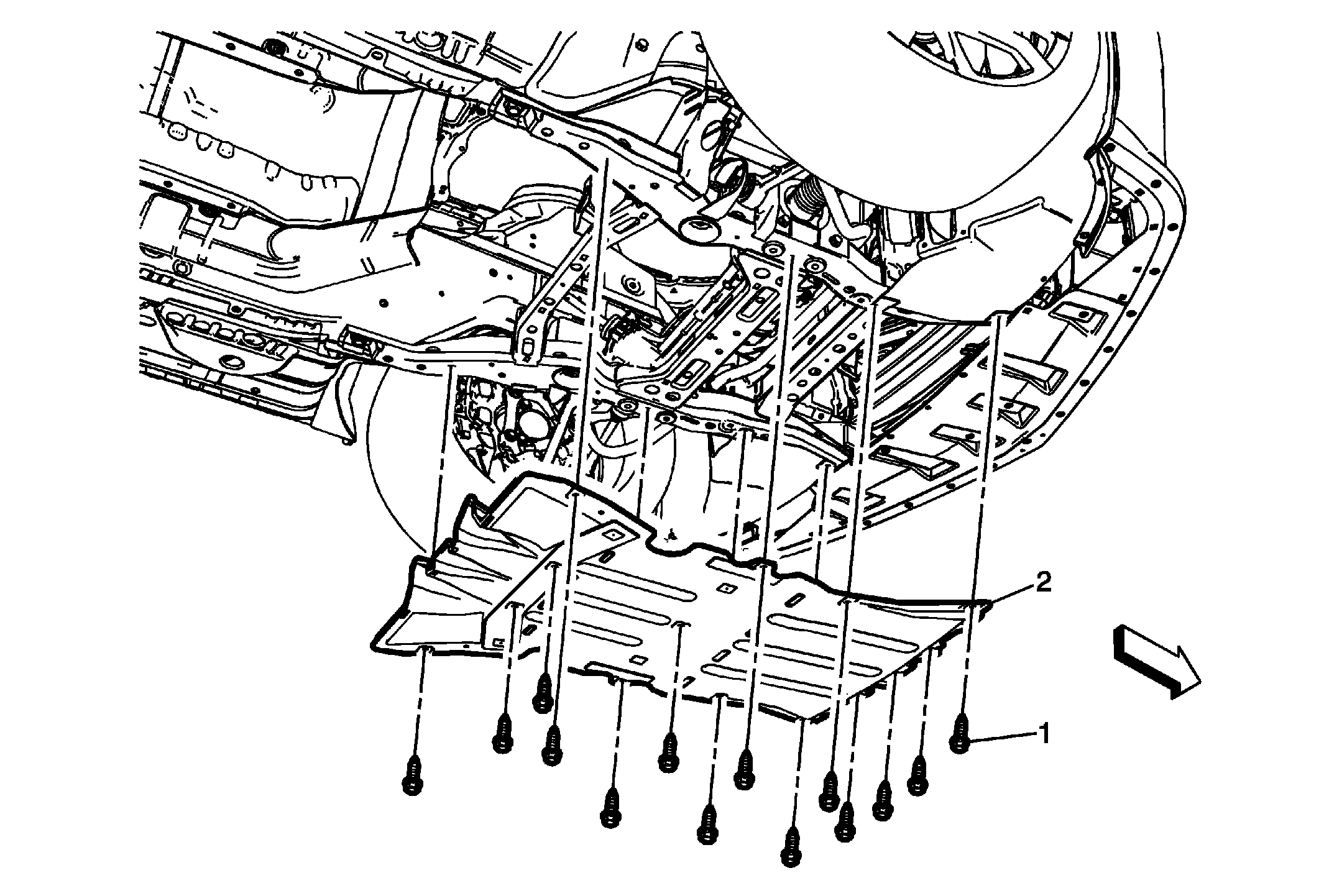

Fig 1: Front Compartment Air Deflector & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Front Compartment Air Deflector Fastener (Qty: 14) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (7 lb ft)
2	Front Compartment Air Deflector
