Instrument Cluster Wiring Schematics: Indicators

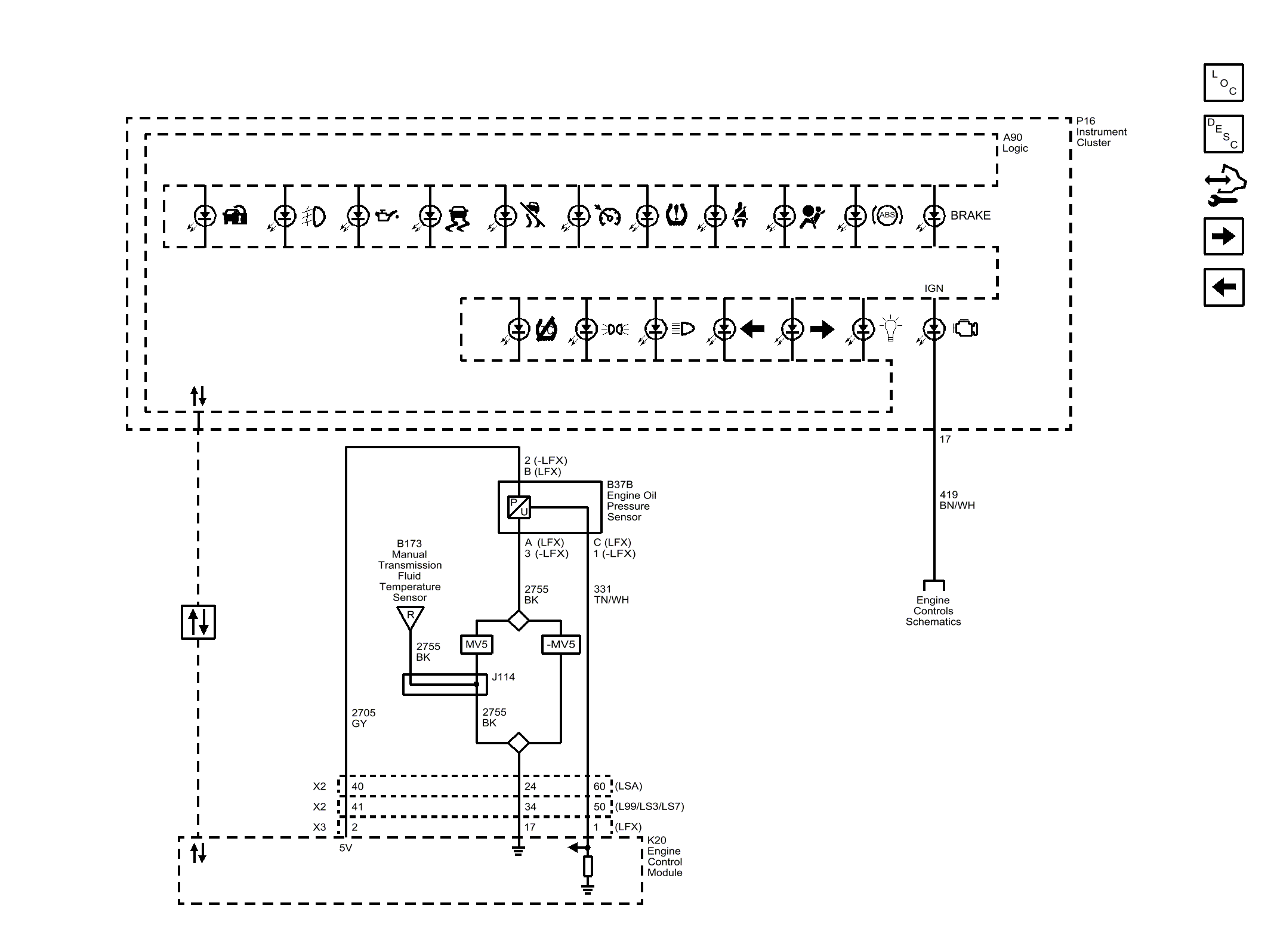

Fig 1: Indicators

GM3705613

Courtesy of GENERAL MOTORS COMPANY
