Seat Belt with P14 B60 and K85 Two Rear Belts Block Diagram

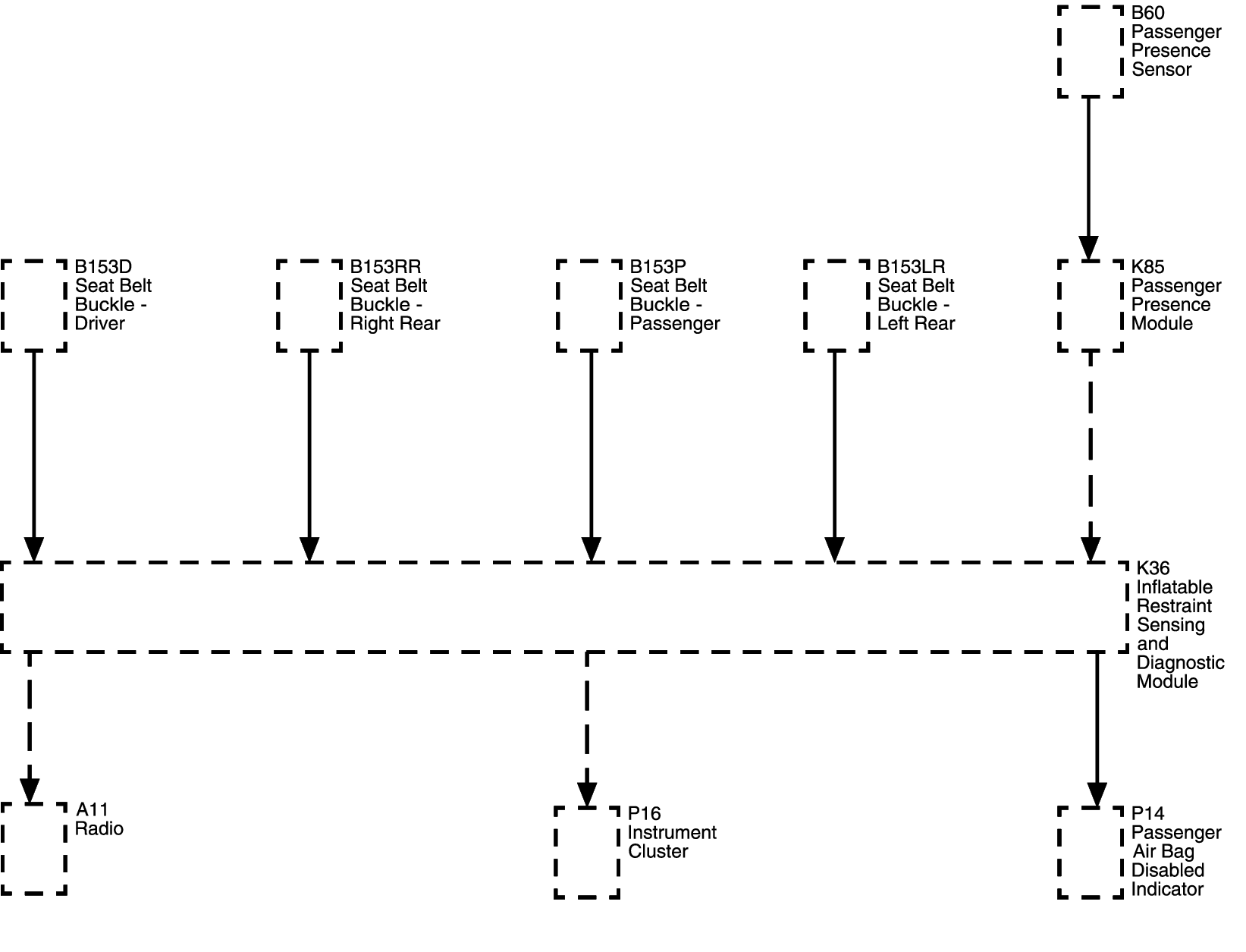

Fig 1: Seat Belt With P14 B60 And K85 Two Rear Belts Block Diagram

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
HW	Hard-Wired
DA	Serial Data
HW	Hard-Wired
HW	Hard-Wired
HW	Hard-Wired
HW	Hard-Wired
HW	Hard-Wired
DA	Serial Data
DA	Serial Data
B153D	B153D Seat Belt Buckle - Driver
B153RR	B153RR Seat Belt Buckle - Right Rear
B153P	B153P Seat Belt Buckle - Passenger
B153LR	B153LR Seat Belt Buckle - Left Rear
K85	Passenger Presence Module
B60	B60 Passenger Presence Sensor
K36	K36 Inflatable Restraint Sensing and Diagnostic Module
A11	A11 Radio
P16	P16 Instrument Cluster
P14	P14 Passenger Air Bag Disabled Indicator
