Wiring Systems And Power Management - Wiring Schematic Diagrams And Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Views
>>
Harness Routing Views
>>
Right Side of Luggage Compartment Harness Routing (LHD)
Right Side of Luggage Compartment Harness Routing (LHD)

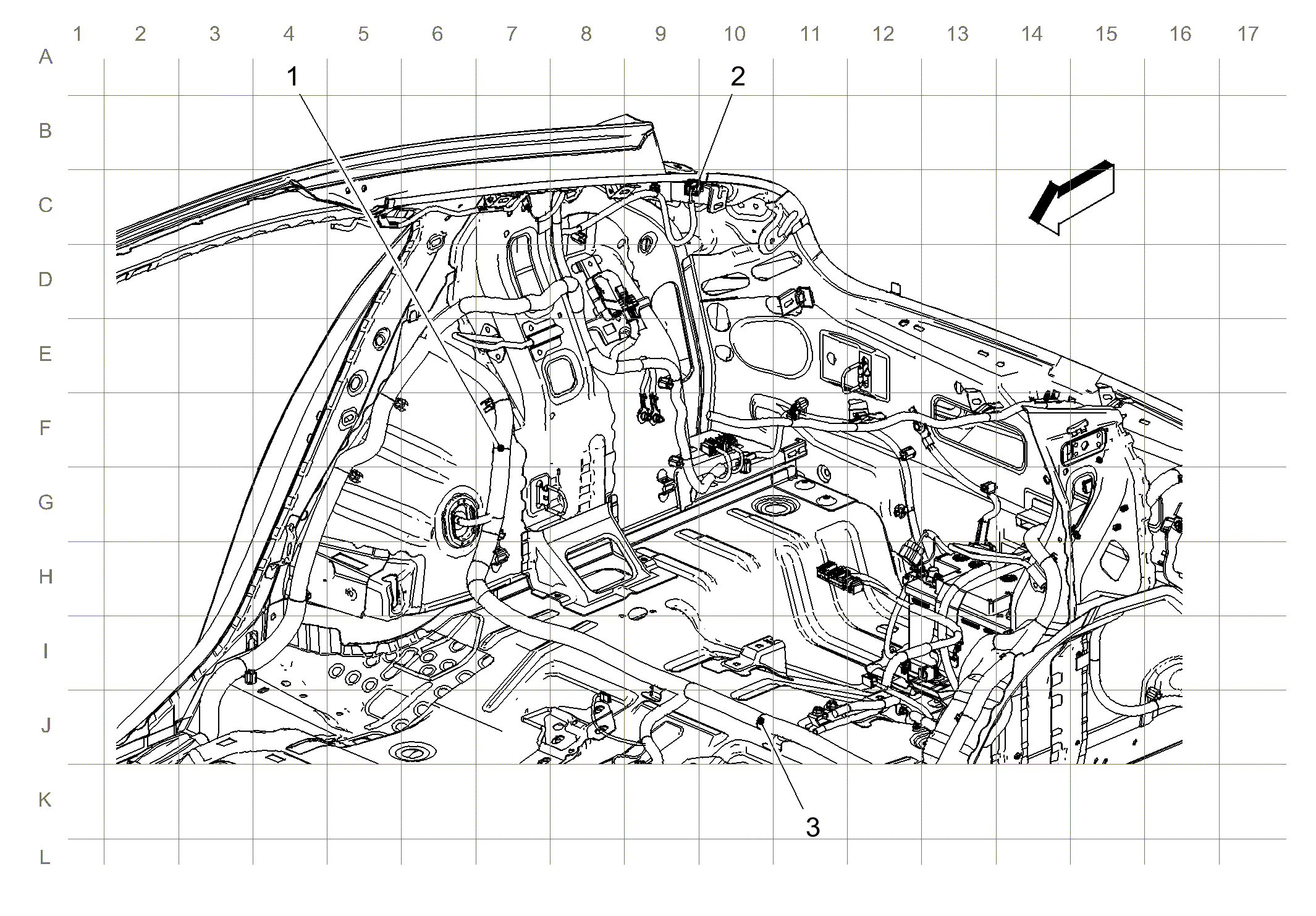

Fig 1: Right Side Of Luggage Compartment Harness Routing (LHD)
Courtesy of GENERAL MOTORS COMPANY
Items
1:
J401
2:
J403
3:
J402
Courtesy of GENERAL MOTORS COMPANY
