Right Side of Engine Compartment Harness Routing

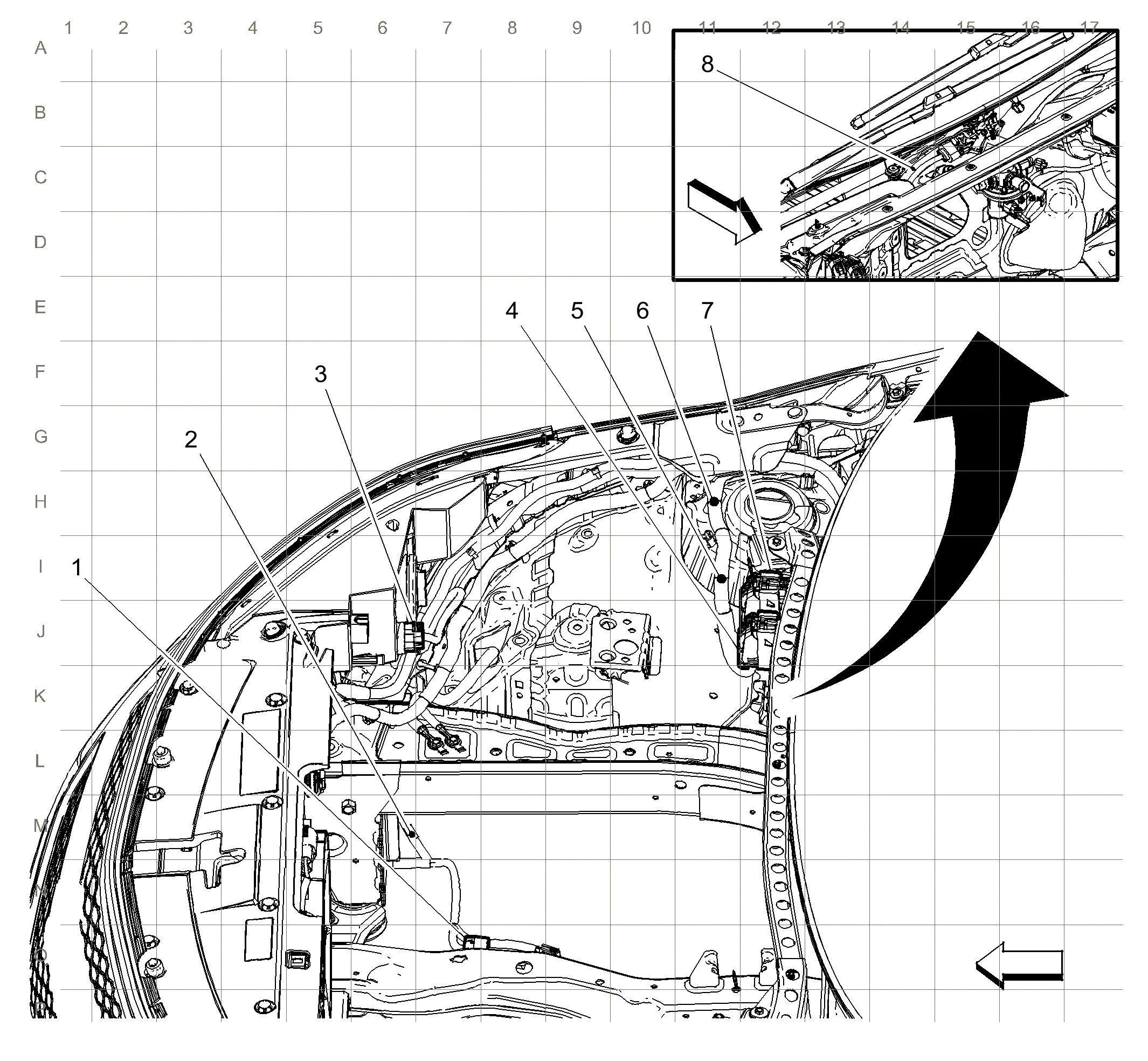

Fig 1: Right Side of Engine Compartment Harness Routing
GM2561496Courtesy of GENERAL MOTORS COMPANY
Items
1:  X180 X180 Forward Lamp Harness to Auxiliary Heater Coolant Pump Harness
2:  J106
3:  X120 X120 Forward Lamp Harness to Right Headlamp Assembly (EF7 or Z49)X120 Forward Lamp Harness to Right Headlamp Assembly (except EF7 or Z49)
4:  X105 X105 Forward Lamp Harness to Body Harness
5:  J107
6:  J108
7:  X107 X107 Forward Lamp Harness to Body Harness
8:  J105
