Wiring Systems And Power Management - Wiring Schematic Diagrams And Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Views
>>
Harness Routing Views
>>
Right Rear Door Harness Routing
Right Rear Door Harness Routing

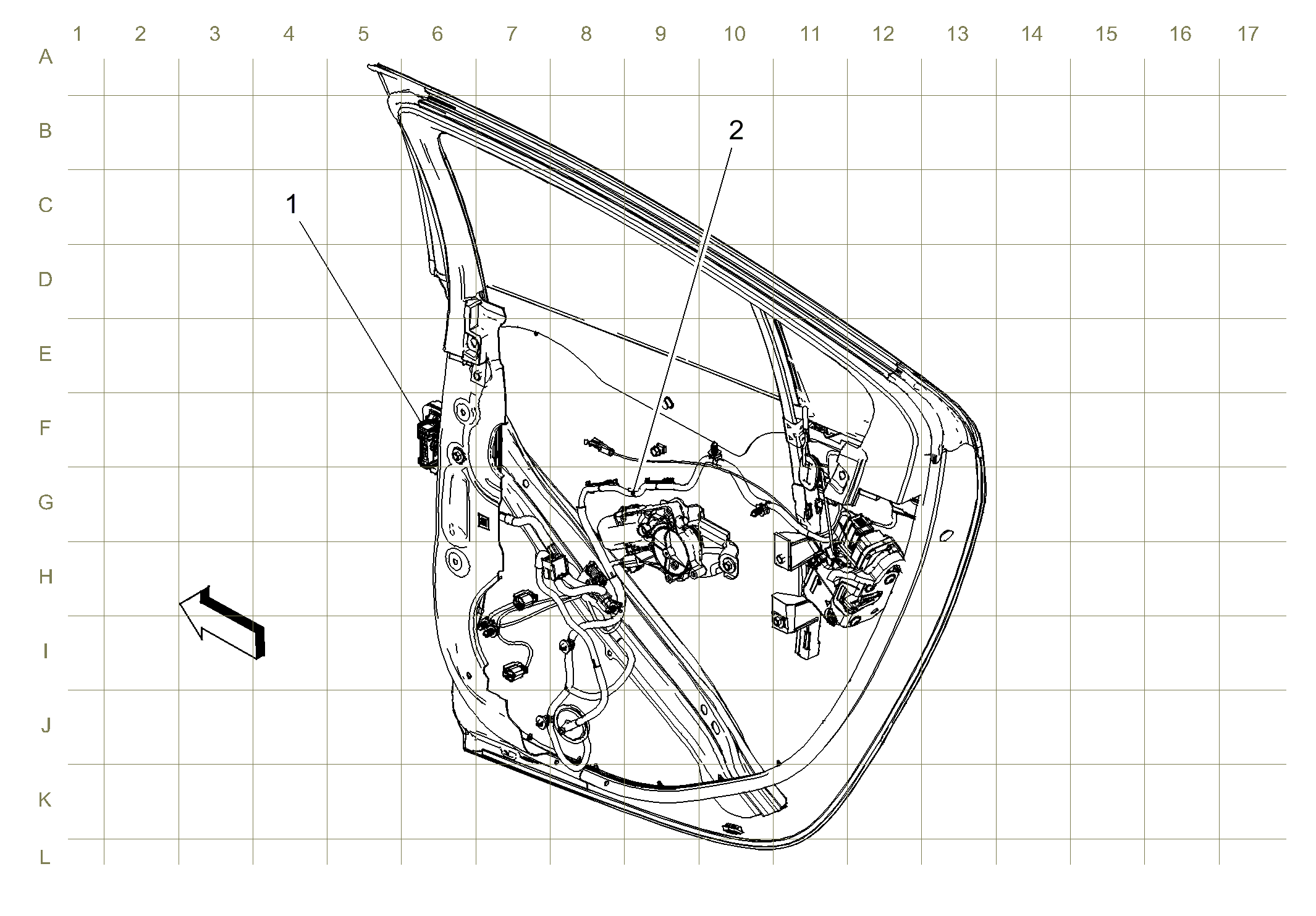

Fig 1: Right Rear Door Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1:
X800
X800 Right Rear Door Harness to Body Harness
2:
J815
