Passenger Door Harness Routing

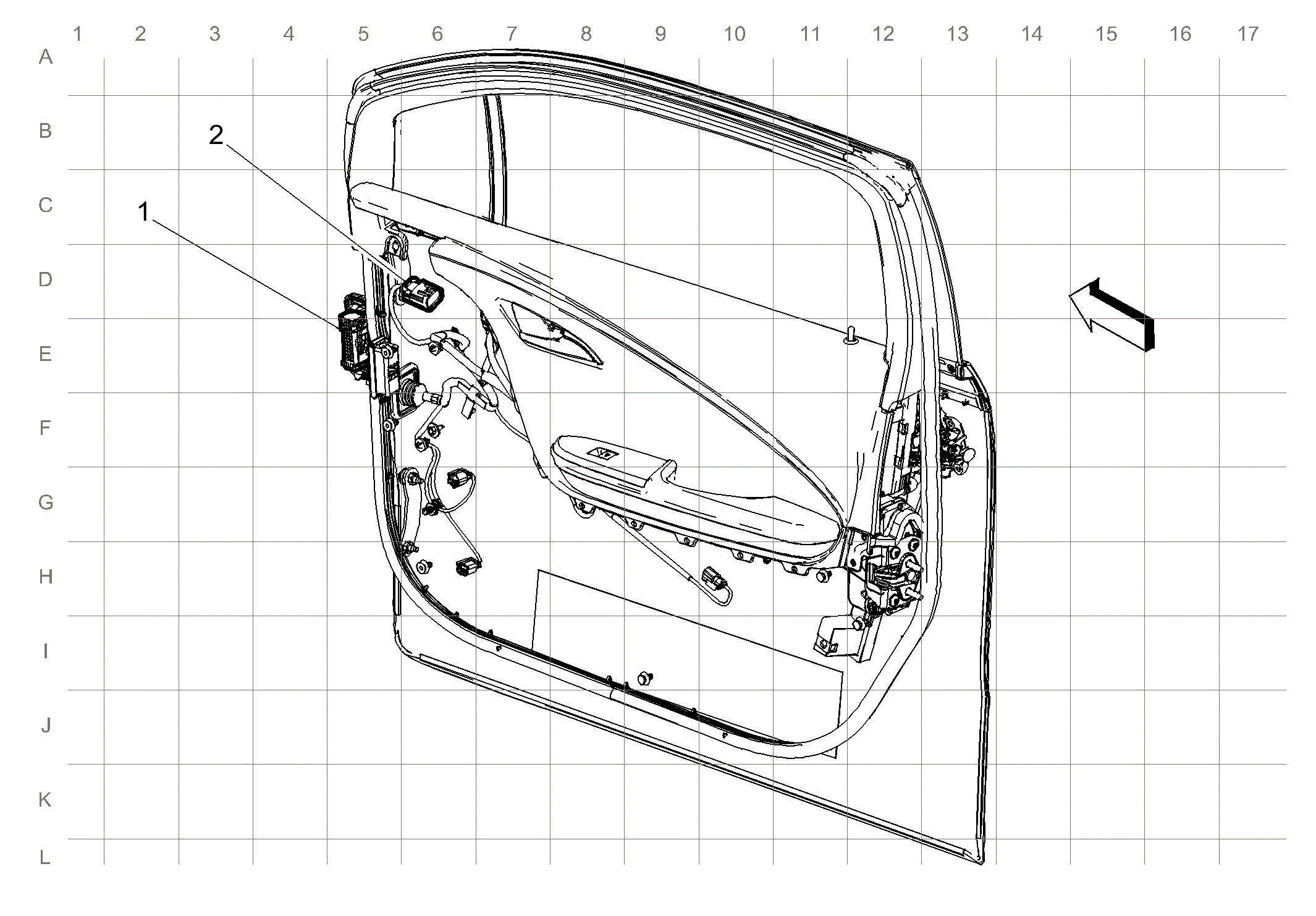

Fig 1: Passenger Door Harness Routing
GM3339080Courtesy of GENERAL MOTORS COMPANY
Items
1:  X600 X600 Passenger Door Harness to Body Harness
2:  X610 X610 Outside Rearview Mirror - Passenger to Passenger Door Harness
