Liftgate Harness Routing

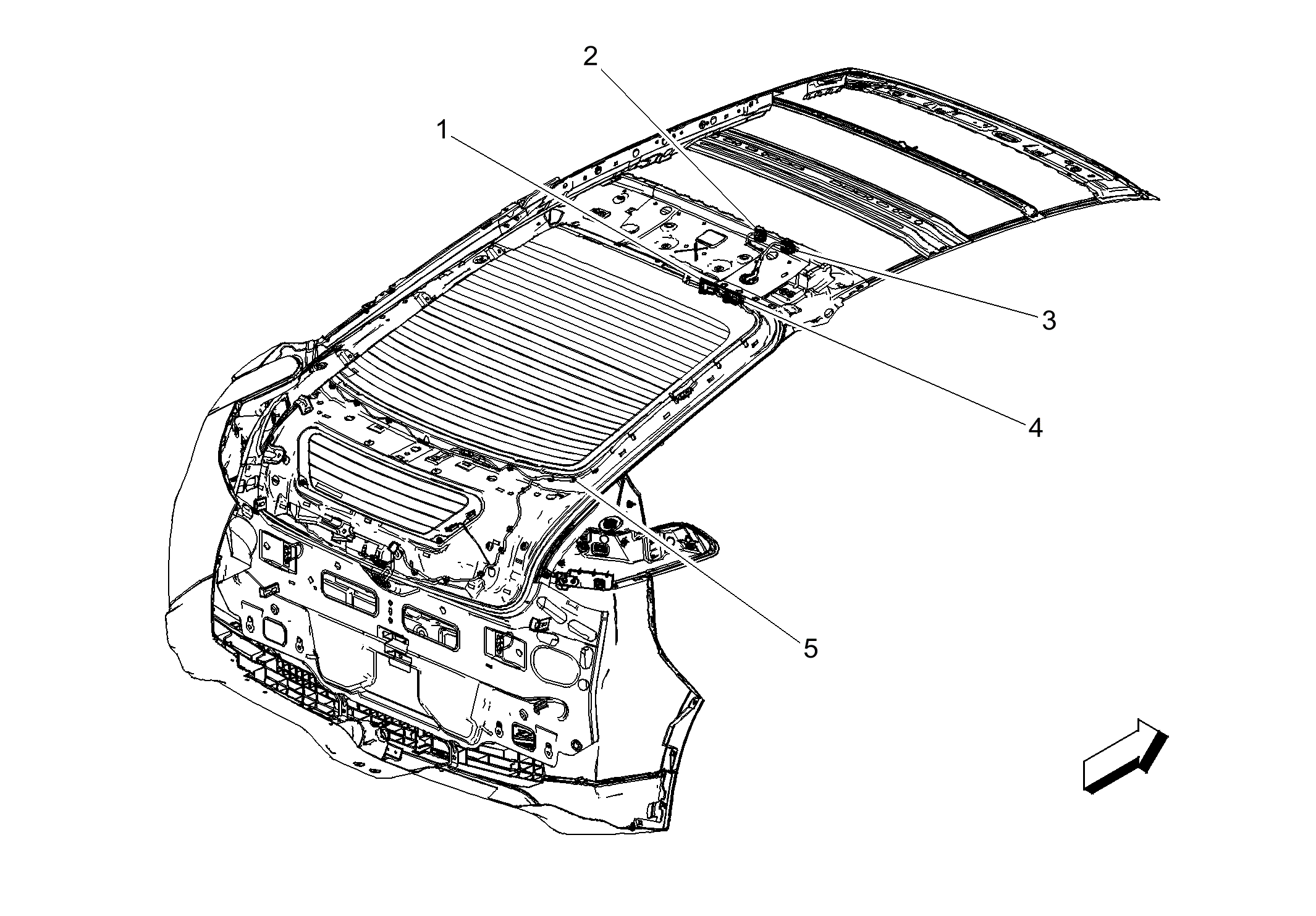

Fig 1: Liftgate Harness Routing
GM3339102Courtesy of GENERAL MOTORS COMPANY
Items
1:  X905 X905 Liftgate Jumper Harness to Liftgate Harness
2:  X900 X900 Liftgate Jumper Harness to Body Harness
3:  X901 X901 Liftgate Jumper Harness to Body Harness
4:  X906 X906 Liftgate Jumper Harness to Liftgate Harness
5:  J902
