Wiring Systems And Power Management - Wiring Schematic Diagrams And Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Views
>>
Harness Routing Views
>>
Left Side of Passenger Compartment Harness Routing (LHD)
Left Side of Passenger Compartment Harness Routing (LHD)

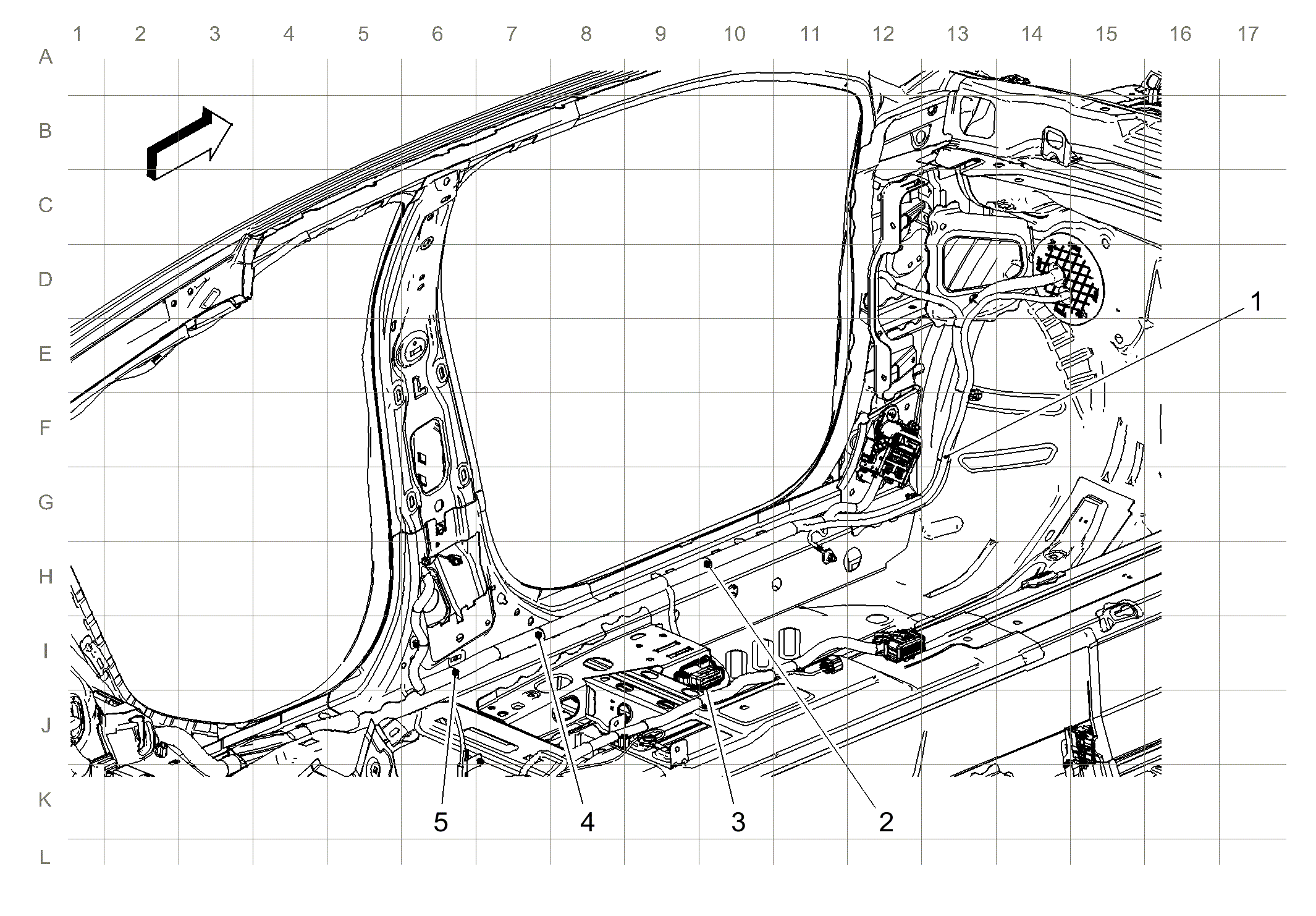

Fig 1: Left Side of Passenger Compartment Harness Routing (LHD)
Courtesy of GENERAL MOTORS COMPANY
Items
1:
J310
2:
J309
3:
J308
4:
J320
5:
J301
Courtesy of GENERAL MOTORS COMPANY
