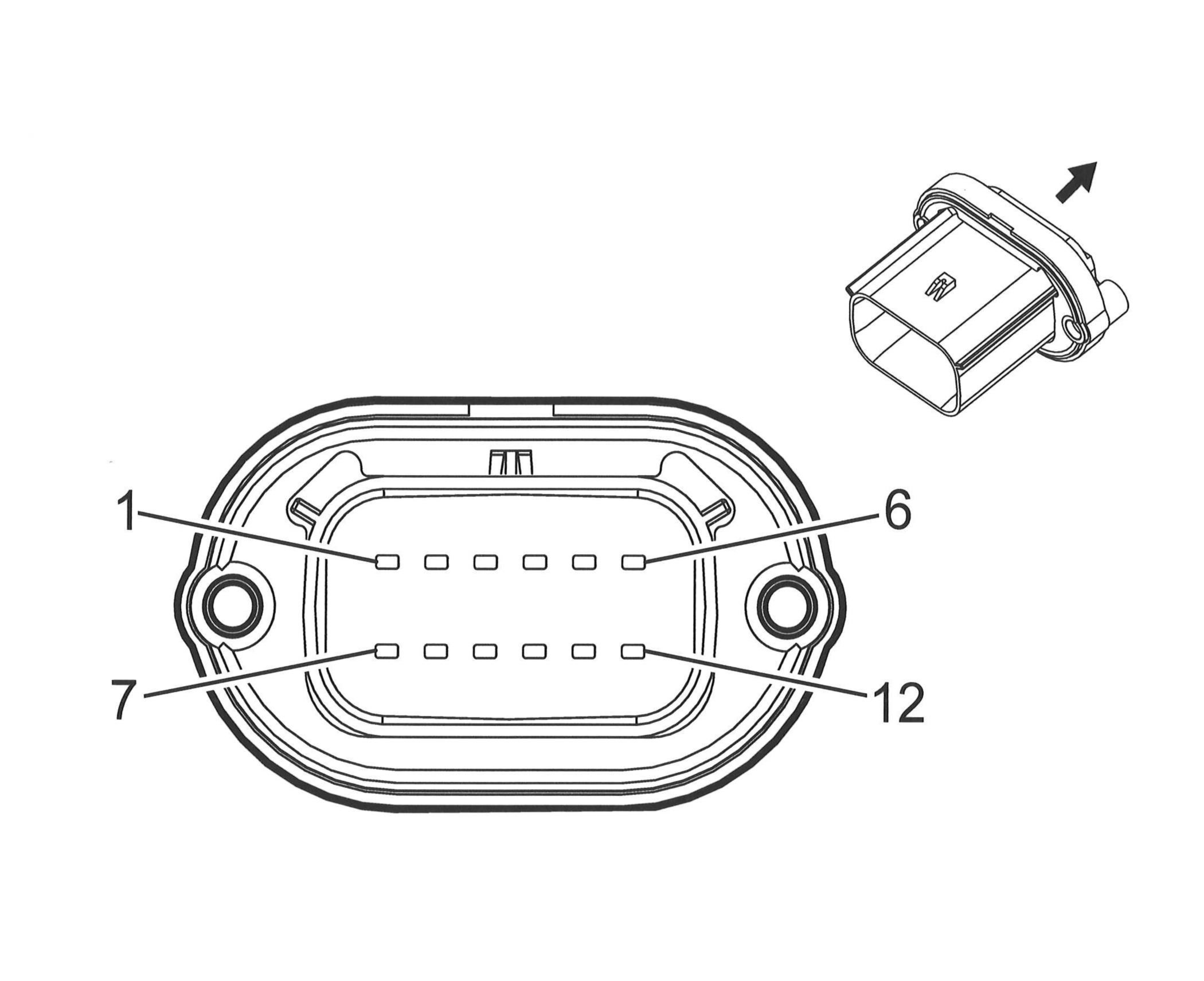

X357 Body Harness to Battery Disconnect Unit Harness

Connector Part Information Harness Type: Body OEM Connector: 33472-1257 Service Connector: 13503528 Description: 12-Way F MX150 Series, Sealed (BK)	Connector Part Information Harness Type: Battery Disconnect Unit Jumper OEM Connector: Not Available Service Connector: Not Available Description: 12-Way M MX150 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available	Not Available

X357 Body Harness to Battery Disconnect Unit Harness

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	L-BU/L-GN	6433	I	-	CAN Bus High Serial Data	1	0.5	L-BU	6433	II	-
2	0.5	BR/L-GN	3959	I	-	High Voltage Battery 1 (+) Relay Control	2	0.5	L-GN/L-BU	3959	II	-
3	0.5	WH	6432	I	-	CAN Bus Low Serial Data	3	0.5	WH/BK	6432	II	-
4	0.5	VT/GY	3961	I	-	High Voltage Battery (-) Relay Control	4	0.5	OG/YE	3961	II	-
5	0.5	L-BU/BR	3787	I	-	High Voltage Energy Management Communication Enable	5	0.5	L-GN/L-BU	3787	II	-
6	0.5	GY/L-BU	3960	I	-	High Voltage Battery 2 (+) Relay Control	6	0.5	PK	3960	II	-
7	0.5	YE/VT	3962	I	-	High Voltage Battery 3 (+) Relay Control	7	0.5	RD	3962	II	-
8	-	-	-	I	-	Not Occupied	8	-	-	-	II	-
9	0.5	WH/BR	3963	I	-	High Voltage Battery 3 (-) Relay Control	9	0.5	BN	3963	II	-
10	-	-	-	I	-	Not Occupied	10	-	-	-	II	-
11	0.5	WH/VT	5137	I	-	Precharge Relay PWM Signal	11	0.5	WH/VT	5137	II	-
12	-	-	-	I	-	Not Occupied	12	-	-	-	II	-
