Underbody - Wheel Components

Underbody - Wheel Components

Items
1:  B5RF Wheel Speed Sensor - Right Front B5RF Wheel Speed Sensor - Right Front
2:  B5RR Wheel Speed Sensor - Right Rear B5RR Wheel Speed Sensor - Right Rear
3:  B5LR Wheel Speed Sensor - Left Rear B5LR Wheel Speed Sensor - Left Rear
4:  B5LF Wheel Speed Sensor - Left Front B5LF Wheel Speed Sensor - Left Front

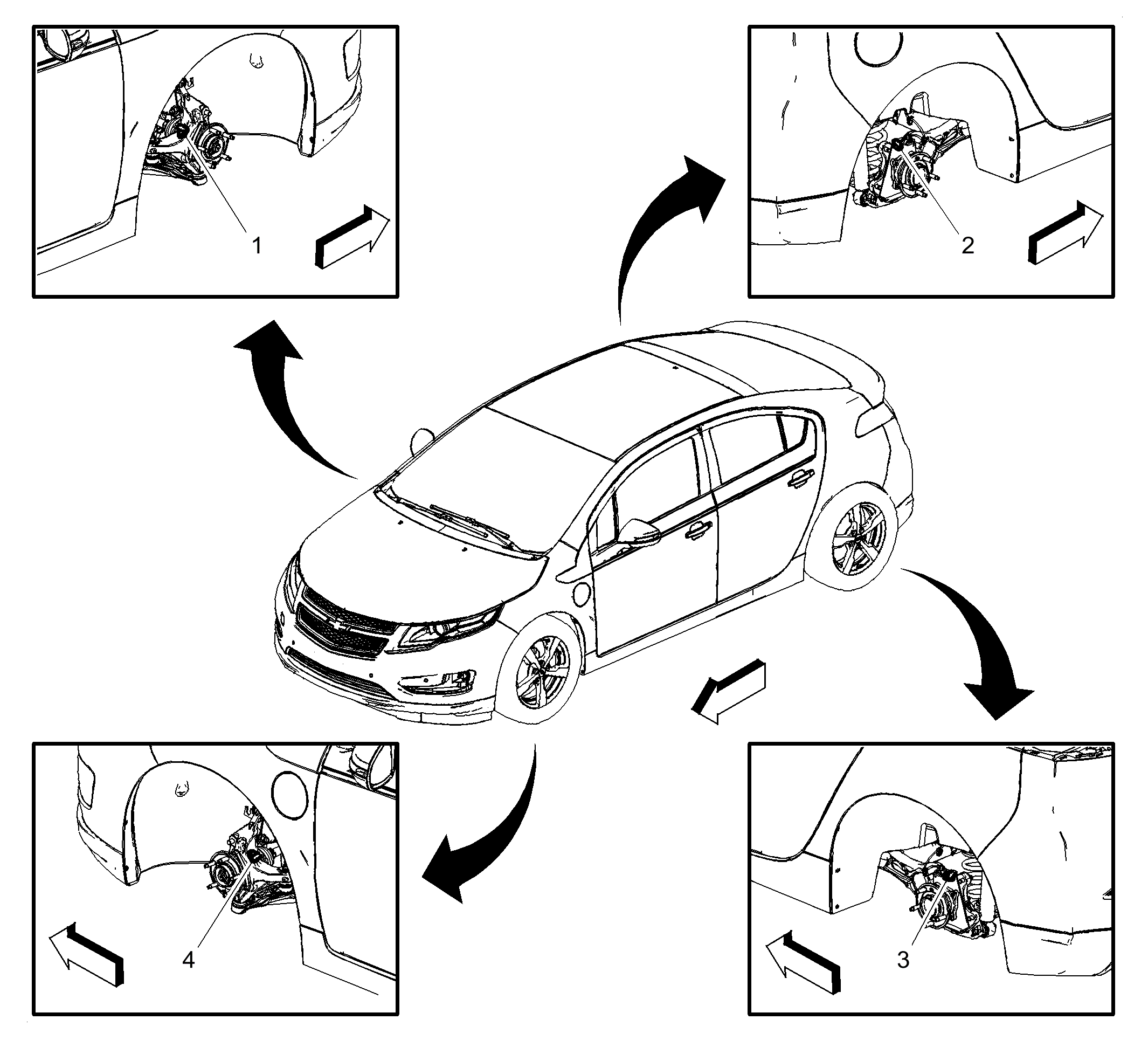

Fig 1: Underbody - Wheel Components
GM2561483Courtesy of GENERAL MOTORS COMPANY
