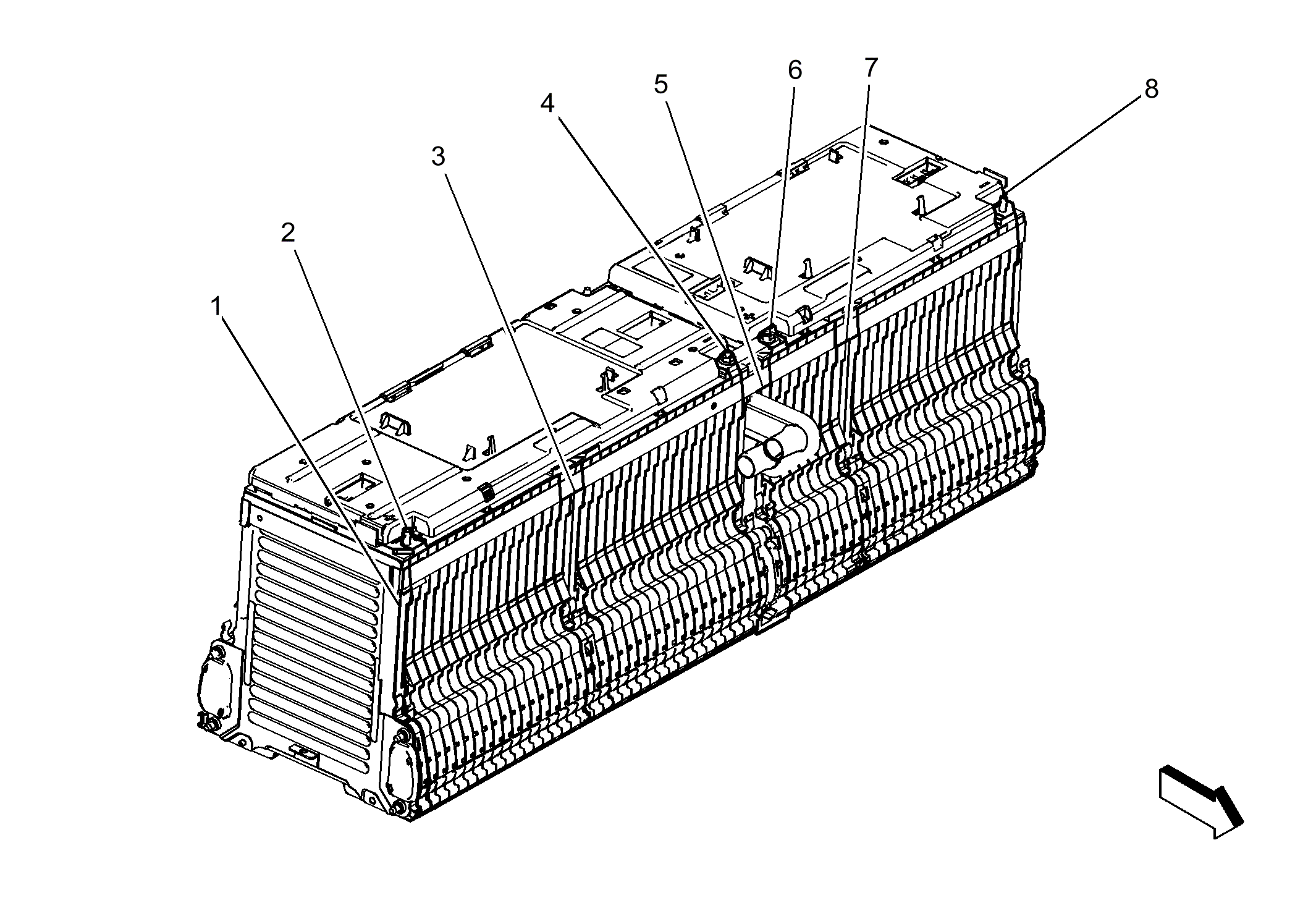

Underbody - Hybrid/EV Battery Pack Section 3
Underbody - Hybrid/EV Battery Pack Section 3
| Items |
|---|
| 1: B32D Hybrid/EV Battery Temperature Sensor 4 |
| 2: C5D Hybrid/EV Battery Module 4 |
| 3: B32C Hybrid/EV Battery Temperature Sensor 3 |
| 4: B32B Hybrid/EV Battery Temperature Sensor 2 |
| 5: B32A Hybrid/EV Battery Temperature Sensor 1 |
| 6: C5A Hybrid/EV Battery Module 1 |
| 7: C5B Hybrid/EV Battery Module 2 |
| 8: C5C Hybrid/EV Battery Module 3 |
