Underbody - Hybrid/EV Battery Pack Section 2

Underbody - Hybrid/EV Battery Pack Section 2

Items
1:  B32F Hybrid/EV Battery Temperature Sensor 6
2:  C5E Hybrid/EV Battery Module 5
3:  B32E Hybrid/EV Battery Temperature Sensor 5
4:  C5F Hybrid/EV Battery Module 6

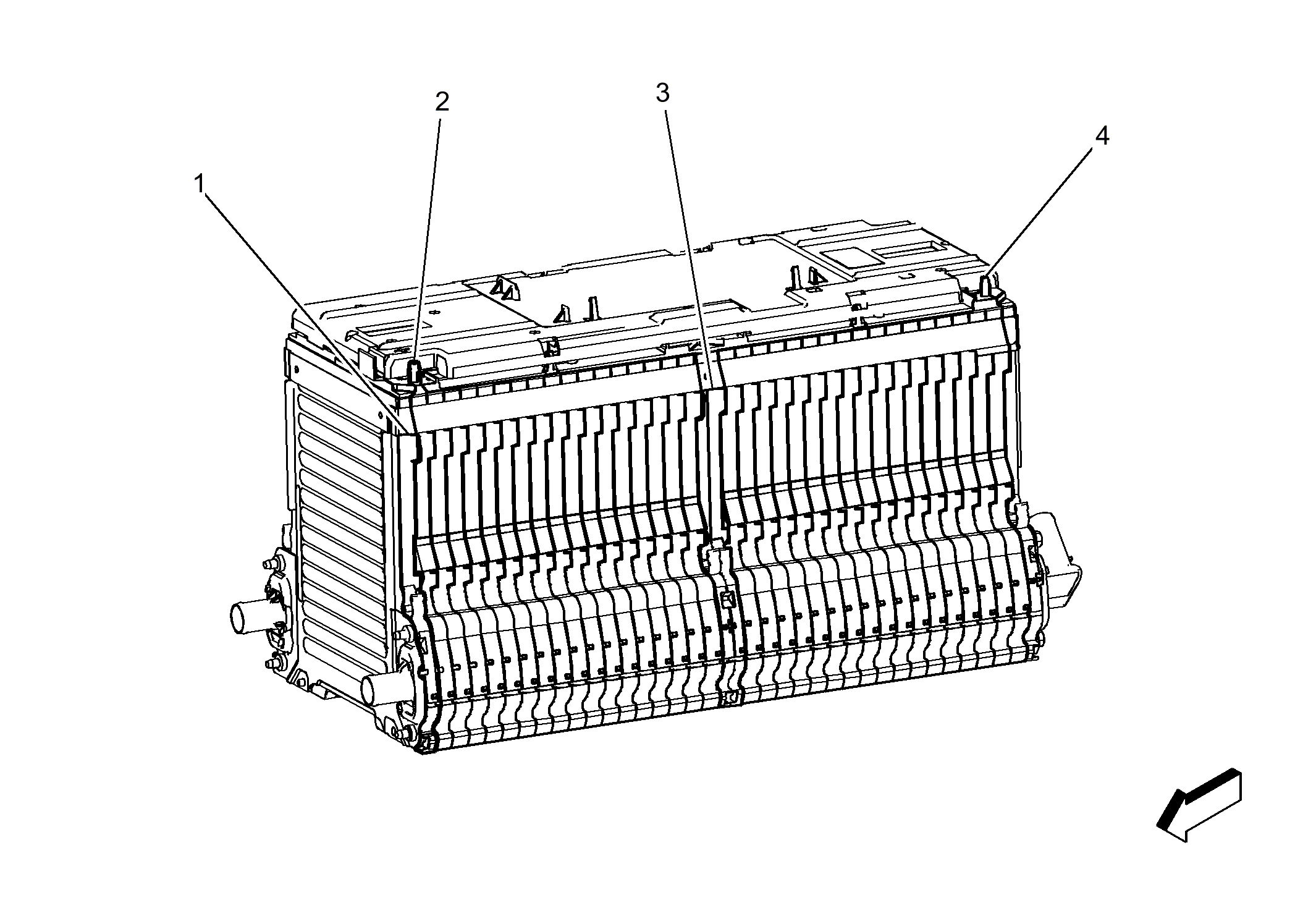

Fig 1: Underbody - Hybrid/EV Battery Pack Section 2
GM2561479Courtesy of GENERAL MOTORS COMPANY
