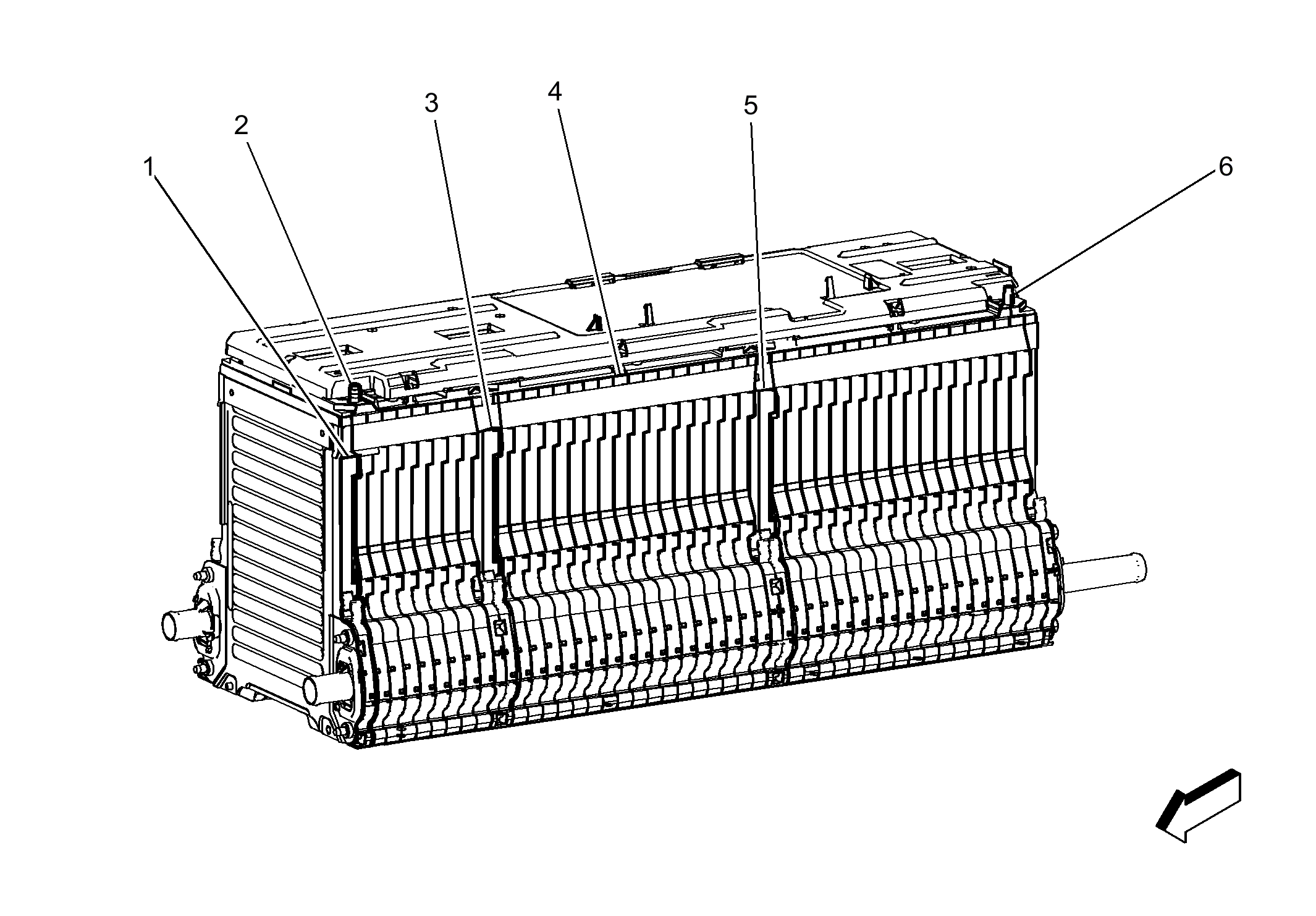

Underbody - Hybrid/EV Battery Pack Section 1
Underbody - Hybrid/EV Battery Pack Section 1
| Items |
| 1:
B32J Hybrid/EV Battery Temperature Sensor 9 |
| 2:
C5J Hybrid/EV Battery Module 9 |
| 3:
B32H Hybrid/EV Battery Temperature Sensor 8 |
| 4:
B32G Hybrid/EV Battery Temperature Sensor 7 |
| 5:
C5G Hybrid/EV Battery Module 7 |
| 6:
C5H Hybrid/EV Battery Module 8 |
Courtesy of GENERAL MOTORS COMPANY
