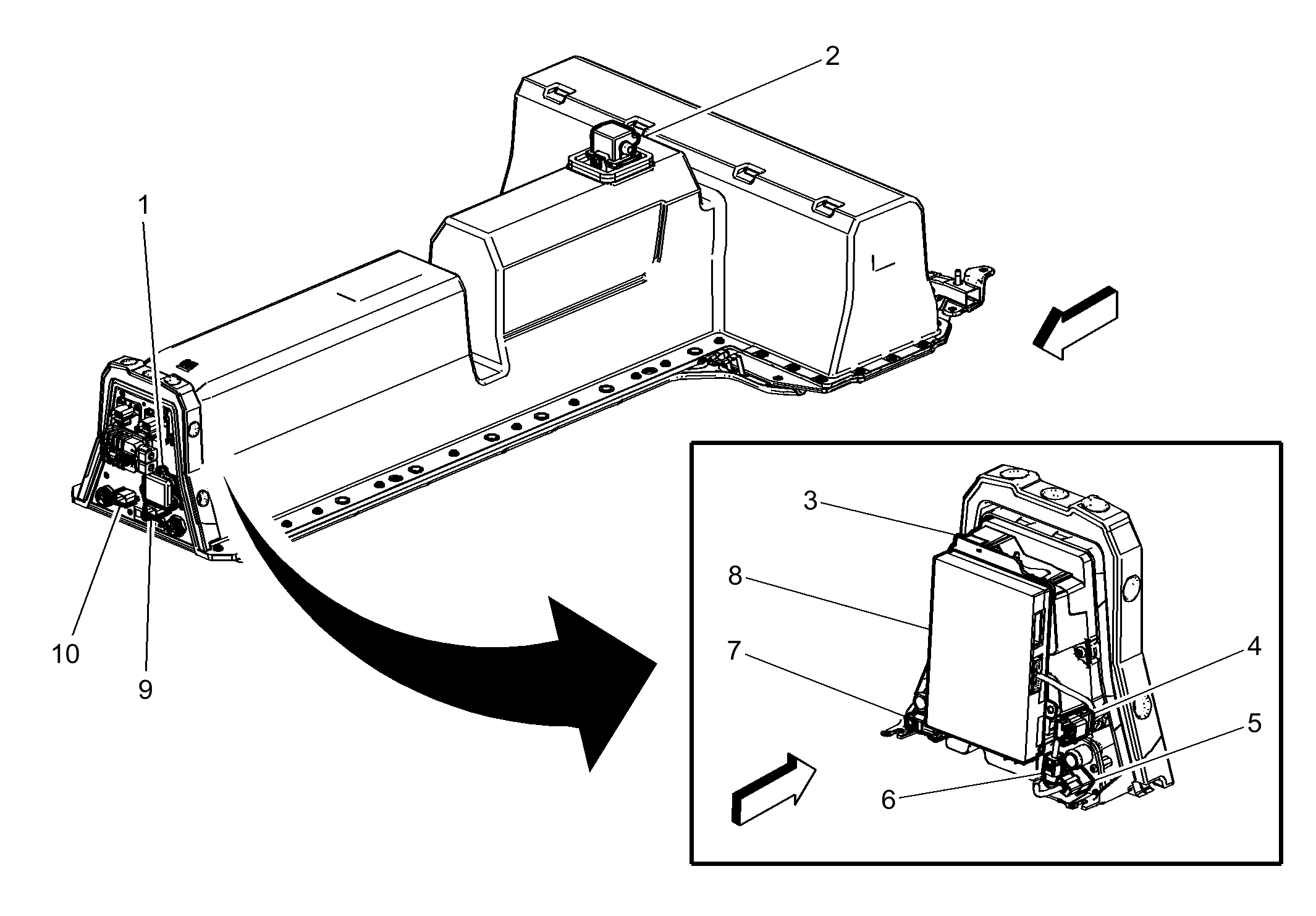

Underbody - Hybrid/EV Battery Pack Assembly Components
Underbody - Hybrid/EV Battery Pack Assembly Components
| Items |
|---|
| 1: S15 Manual Service Disconnect |
| 2: A28 Hybrid/EV Battery Contactor Assembly |
| 3: E54 Hybrid/EV Battery Pack Coolant Heater |
| 4: B204A Hybrid/EV Battery Pack Coolant Temperature Sensor 1 B204A Hybrid/EV Battery Pack Coolant Temperature Sensor 1 |
| 5: B204B Hybrid/EV Battery Pack Coolant Temperature Sensor 2 B204B Hybrid/EV Battery Pack Coolant Temperature Sensor 2 |
| 6: K16 Battery Energy Control Module K16 Battery Energy Control Module X1K16 Battery Energy Control Module X2K16 Battery Energy Control Module X3 |
| 7: F115 Hybrid/EV Battery Pack Fuse Cover |
