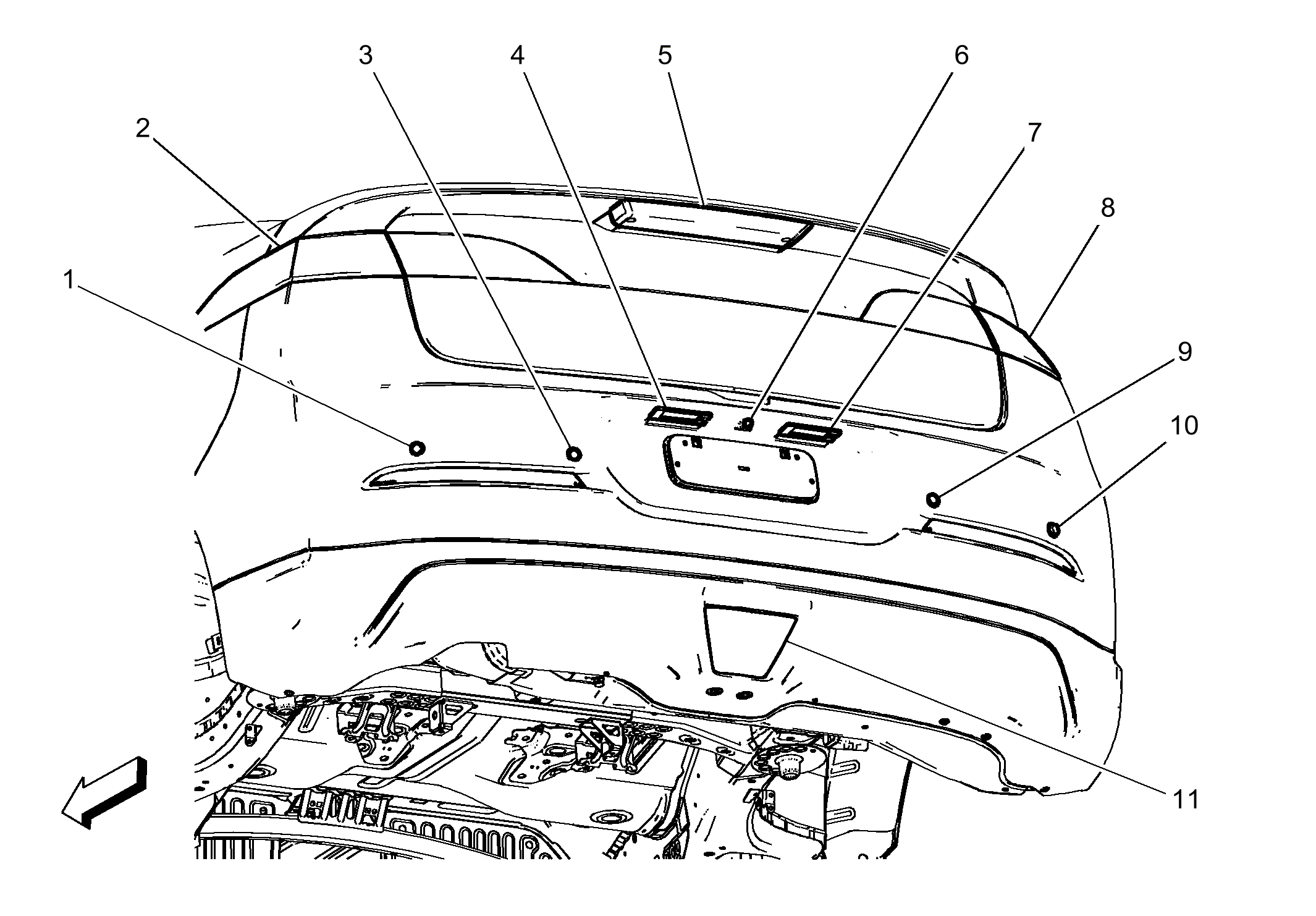

Rear of Vehicle Components
Rear of Vehicle Components
| Items |
|---|
| 1: B78G Rear Object Sensor - Left Outer (UD5) B78G Rear Object Sensor - Left Outer (UD7) |
| 2: E5E Tail Lamp - Left |
| 3: B78E Rear Object Sensor - Left Middle (UD5) B78E Rear Object Sensor - Left Middle (UD7) |
| 4: E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 5: E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp |
| 6: B87 Rearview Camera (UD5) B87 Rearview Camera (UVC) |
| 7: E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 8: E5F Tail Lamp - Right |
| 9: B78F Rear Object Sensor - Right Middle (UD5) B78F Rear Object Sensor - Right Middle (UD7) |
| 10: B78H Rear Object Sensor - Right Outer (UD5) B78H Rear Object Sensor - Right Outer (UD7) |
| 11: E5 Backup Lamp E5 Backup Lamp (T79)E5 Backup Lamp (without T79) |
