Liftgate Components

Liftgate Components

Items
1:  E18 Rear Defogger Grid E18 Rear Defogger Grid X1E18 Rear Defogger Grid X2
2:  S46 Liftgate Handle Switch S46 Liftgate Handle Switch
3:  A23C Liftgate Latch Assembly A23C Liftgate Latch Assembly

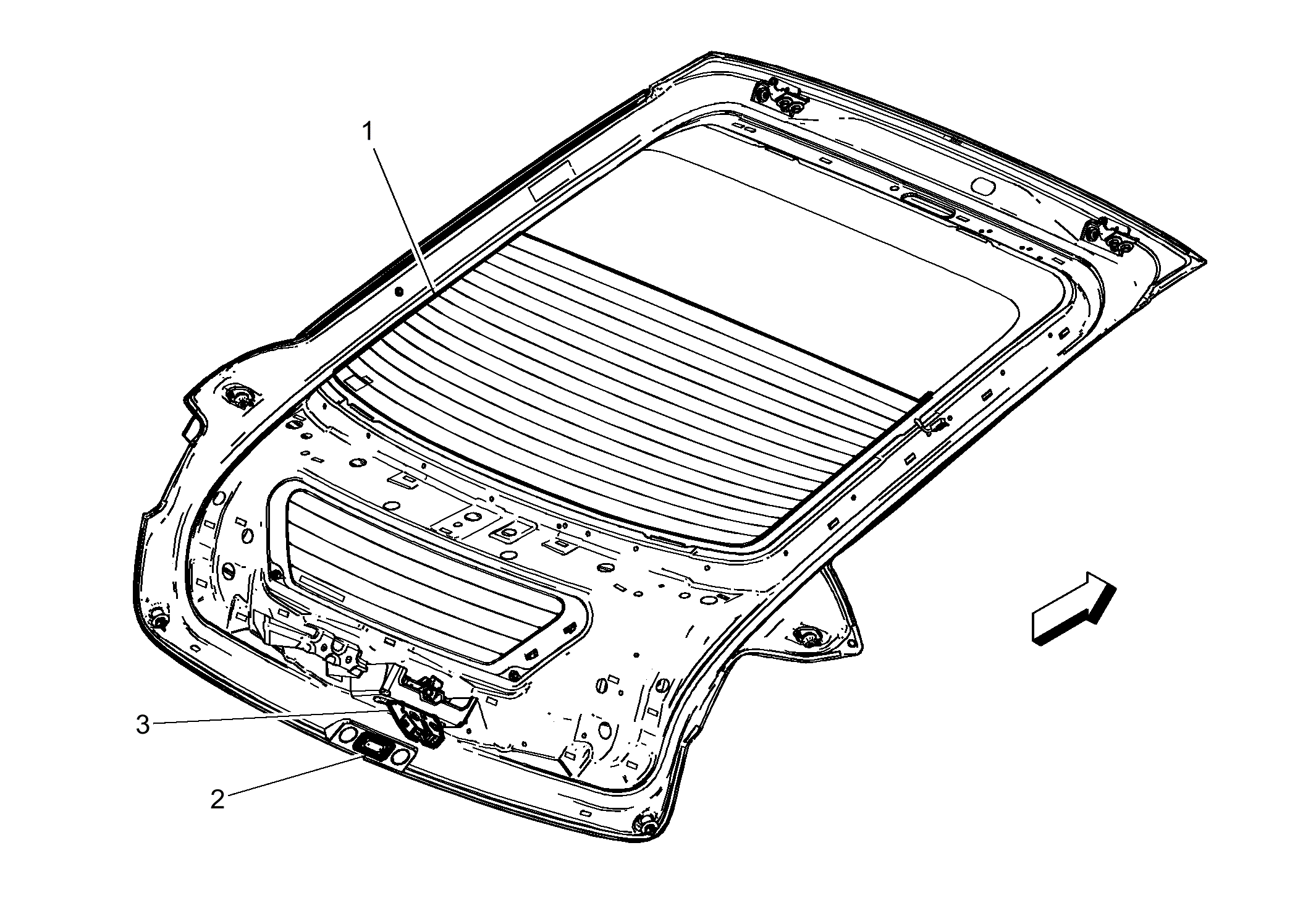

Fig 1: Liftgate Components
GM3665812Courtesy of GENERAL MOTORS COMPANY
