Power, Ground, Data Communication and Indicators

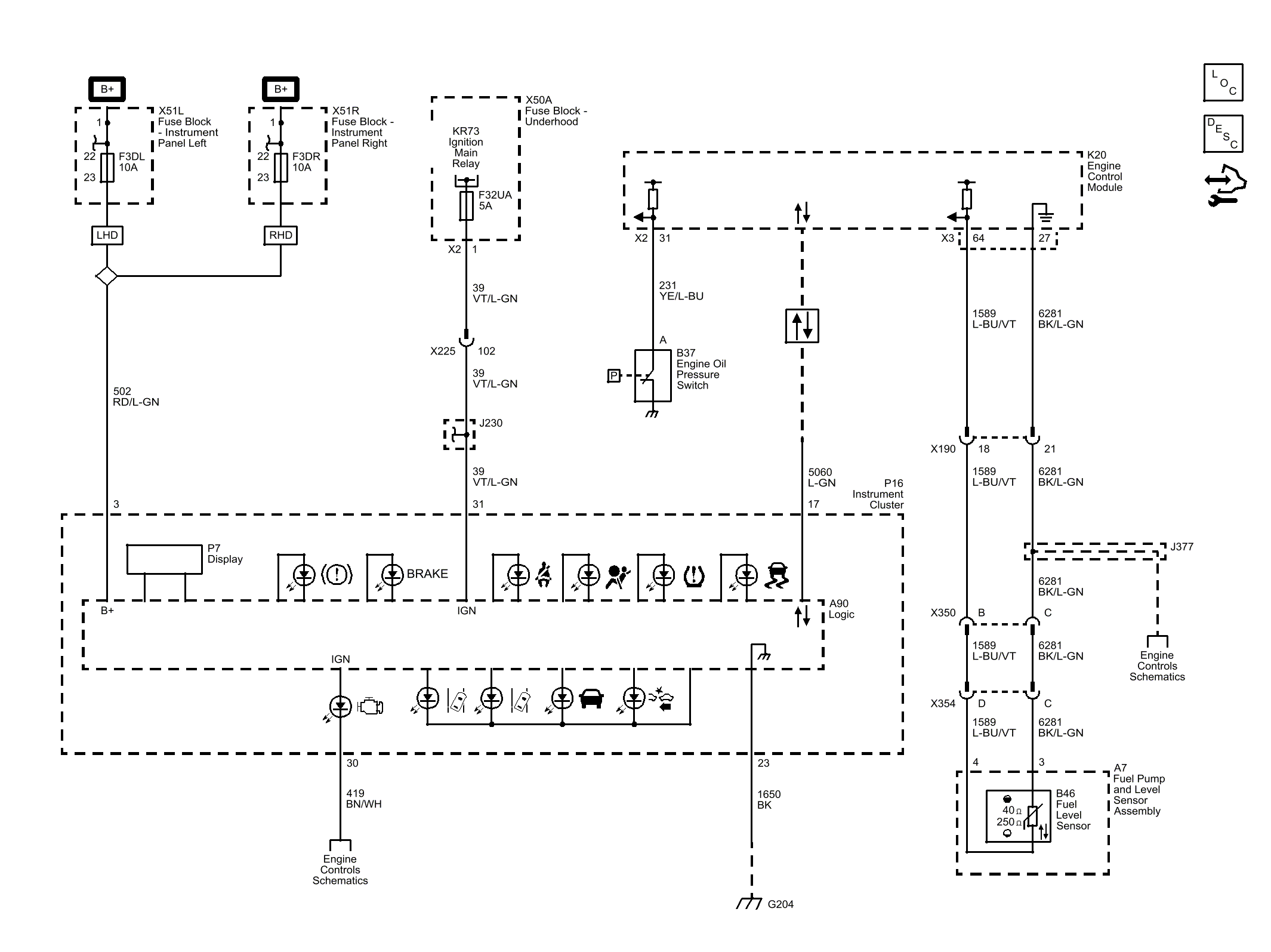

Fig 1: Power, Ground, Data Communication And Indicators Wiring Schematics

GM3339984

Courtesy of GENERAL MOTORS COMPANY
