Radiator Air Lower Baffle and Deflector Replacement (LUJ, LUV)

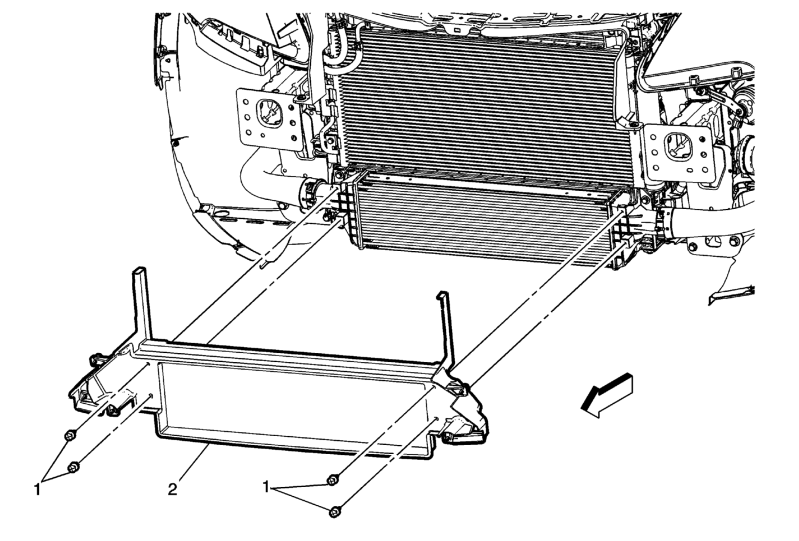

Fig 1: Radiator Air Lower Baffle and Deflector (LUJ, LUV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax) , Front Bumper Fascia Replacement (Encore) . Remove the front bumper lower impact bar. Refer to Front Bumper Lower Impact Bar Replacement (Trax) .
1	Radiator Air Lower Baffle and Deflector Push Pin Retainers (Qty: 4)
2	Radiator Air Lower Baffle and Deflector Assembly

Callout

Component Name

Preliminary Procedures

Radiator Air Lower Baffle and Deflector Push Pin Retainers (Qty: 4)

Radiator Air Lower Baffle and Deflector Assembly
