K85 Passenger Presence Module (AL0)

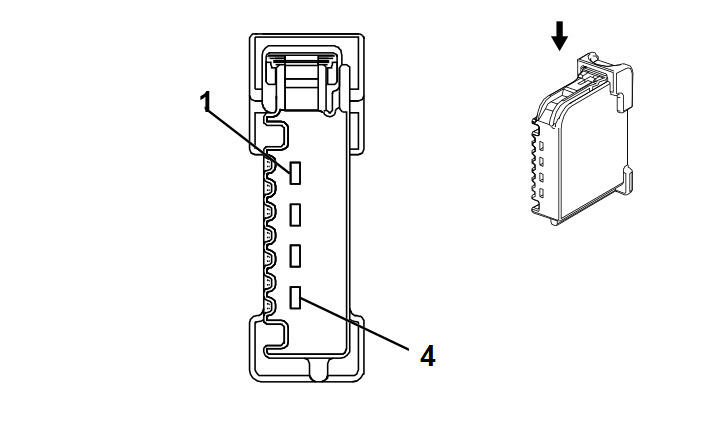

Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 6098-5516
- Service Connector: 13316141
- Description: 4-Way F 1.5 Series (BK)
|
Terminal Part Information
- : 13575745
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 12191812/19
- Core/Insulation Crimp: E/C
|
K85 Passenger Presence Module (AL0)
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| 1 |
.35 |
BK/WH |
3151 |
Ground |
- |
| 2 |
- |
- |
- |
- |
- |
| 3 |
.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
- |
| 4 |
.35 |
RD/YE |
1802 |
Battery Positive Voltage |
- |
