K77 Remote Control Door Lock Receiver

GM872587

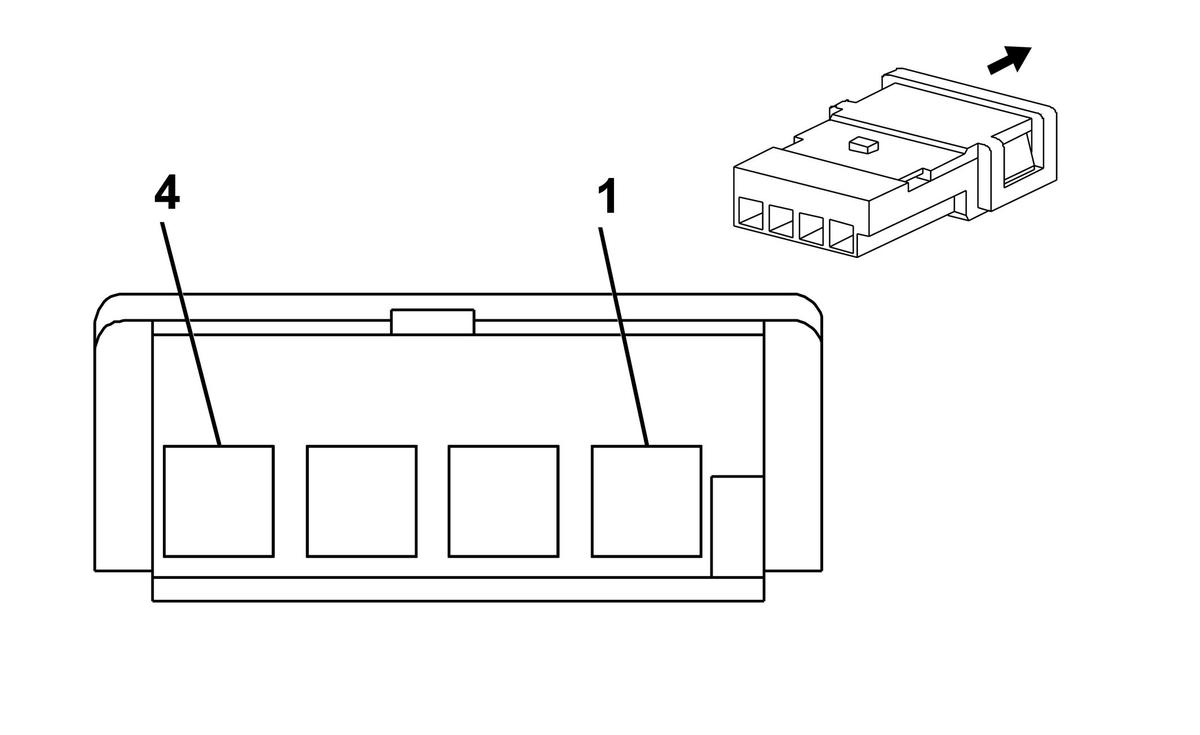

Connector Part Information

Harness Type: Body
OEM Connector: 968943-1
Service Connector: 13576534
Description: 4-Way F 0.64 Micro Quadlock Series (BK)
Harness Type: Headliner
OEM Connector: 968943-1
Service Connector: 13576534
Description: 4-Way F 0.64 Micro Quadlock Series (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Pending	Pending	Pending	Not Available	Not Available	Not Available	Not Available

K77 Remote Control Door Lock Receiver

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.5 0.35	GY/GY GY/GY	3273 3273	Remote Function Actuator Return Remote Function Actuator Return	I	UFL -UFL
2	0.35 0.35	BU/WH BU/WH	3275 3275	Remote Function Actuator Receive Signal Remote Function Actuator Receive Signal	I	UFL -UFL
3	0.35 0.35	YE/GN YE/GN	3274 3274	Remote Function Actuator Transmit Signal Remote Function Actuator Transmit Signal	I	UFL -UFL
4	0.35 0.35	GY/WH GY/WH	3272 3272	Remote Function Actuator Supply Voltage Remote Function Actuator Supply Voltage	I	UFL -UFL
