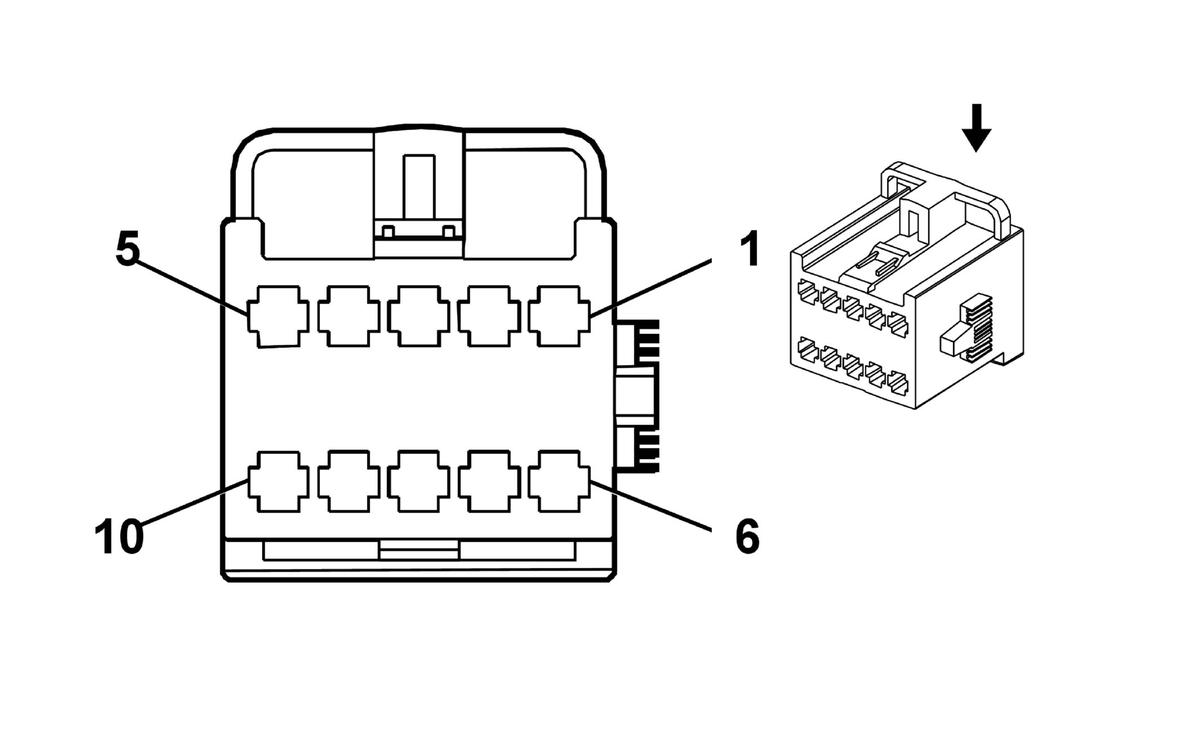

K43 Power Steering Control Module (NJ1)
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13527907
- Service Connector: 13395397
- Description: 10-Way F 1.5 Micro Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13327168 |
J-35616-14 (GN) |
J-38125-560 |
962943-5 |
16 |
E |
A |
K43 Power Steering Control Module (NJ1)
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/BU |
5986 |
Serial Data Communication Enable |
I |
NJ1 |
| 2 |
0.5 |
BU/BU |
2500 |
High Speed GMLAN Serial Data (+) (1) |
I |
NJ1 |
| 3 |
0.5 |
WH/WH |
2501 |
High Speed GMLAN Serial Data (-) (1) |
I |
NJ1 |
| 4-10 |
- |
- |
- |
Not Occupied |
- |
- |
