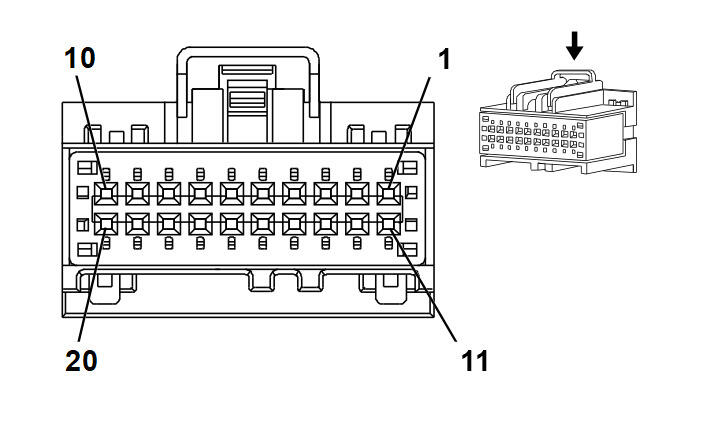

K33 HVAC Control Module X2
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 31410-1202
- Service Connector: 15126709
- Description: 20-Way F 64 Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Pending |
Pending |
Pending |
Not Available |
Not Available |
Not Available |
Not Available |
K33 HVAC Control Module X2
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/BN |
440 |
Battery Positive Voltage |
I |
(C67/CJ2) |
| 2 |
0.35 |
GN/GN |
5060 |
Low Speed GMLAN Serial Data |
I |
(C67/CJ2) |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
GN/YE |
7531 |
Linear Interconnect Network Bus 9 |
I |
(C67/CJ2) |
| 5-7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
BK/BK |
1550 |
Ground |
I |
(C67/CJ2) |
| 9 |
0.35 |
VT/BN |
141 |
Run Ignition 3 Voltage |
I |
(C67/CJ2) |
| 10-14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.35 |
BU/GY |
754 |
Blower Motor Speed Control |
I |
(C67/CJ2) |
| 16-18 |
- |
- |
- |
Not Occupied |
- |
- |
| 19 |
0.35 |
BN/VT |
193 |
Rear Defog Relay Control |
I |
(C67/CJ2) |
| 20 |
- |
- |
- |
Not Occupied |
- |
- |
