KR73 Ignition Main Relay and KR74 Ignition Run Relay

WARNING: This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

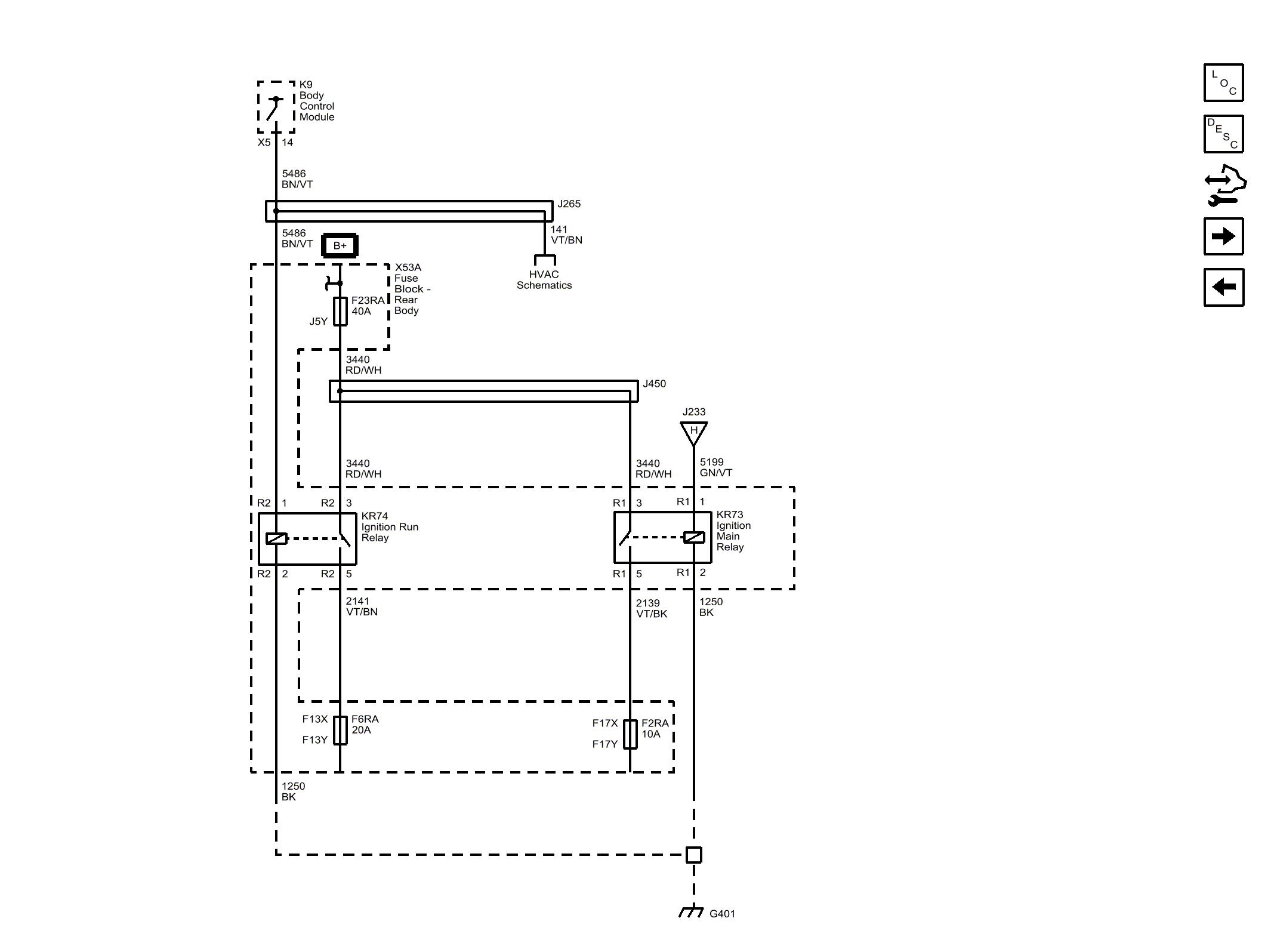

Fig 1: KR73 Ignition Main Relay and KR74 Ignition Run Relay
GM3260968Courtesy of GENERAL MOTORS COMPANY
