F4UB, F7UA, F10UA, F17UA, F18UA, and F19UA Fuses

WARNING: This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

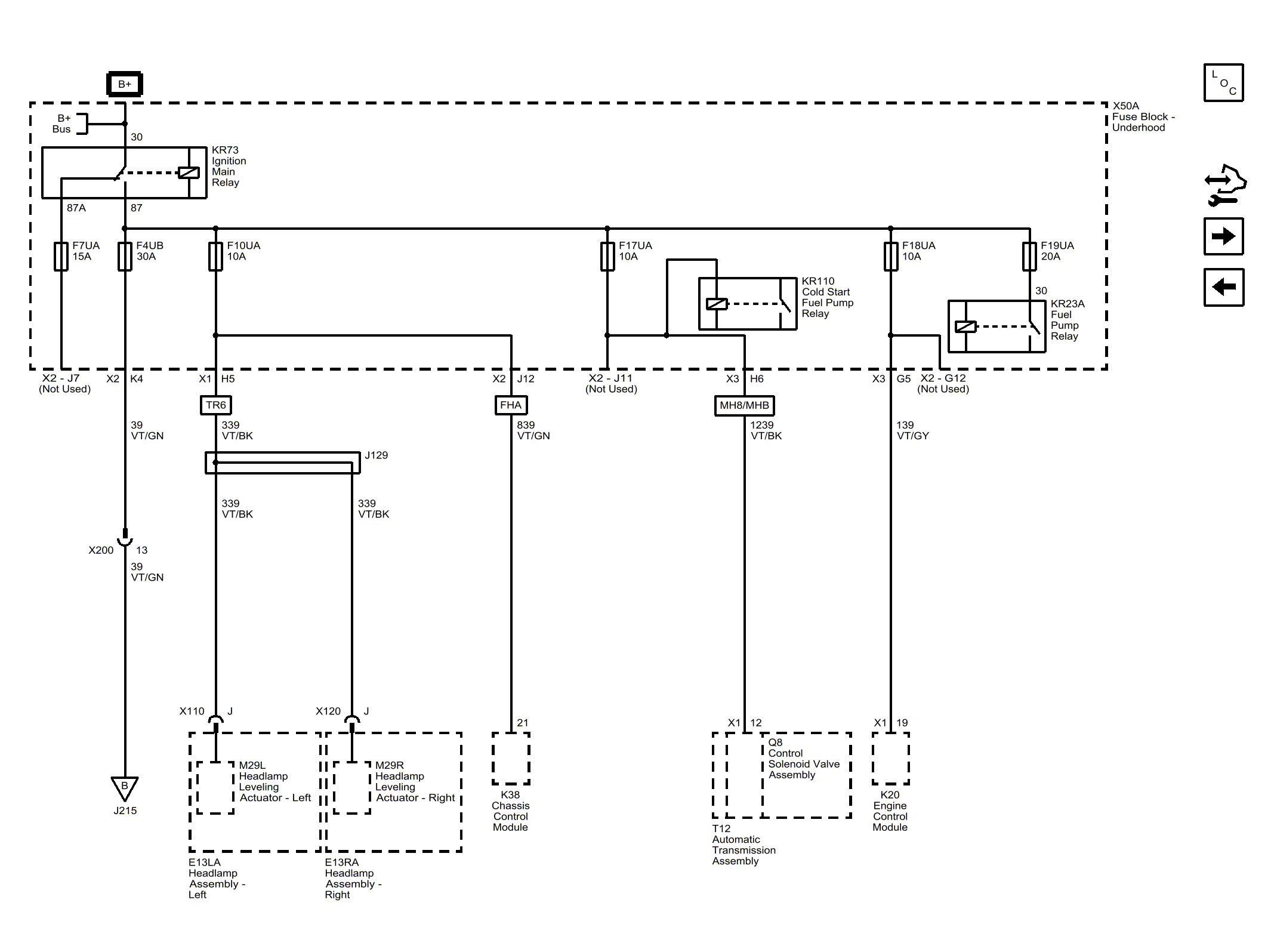

Fig 1: F4UB, F7UA, F10UA, F17UA, F18UA, and F19UA Fuses
GM3260901Courtesy of GENERAL MOTORS COMPANY
