Section 113 (Wiring Systems And Power Management - Schematic Wiring Diagrams - Power Distribution Schematics (Encore))
>>
Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics (Encore)
>>
F3BA, F1DA, F2DA, F3DA, F4DA, F5DA, F6DA, F7DA, F8DA, F9DA, F10DA, F11DA, and F12DA Fuses
F3BA, F1DA, F2DA, F3DA, F4DA, F5DA, F6DA, F7DA, F8DA, F9DA, F10DA, F11DA, and F12DA Fuses
WARNING:
This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

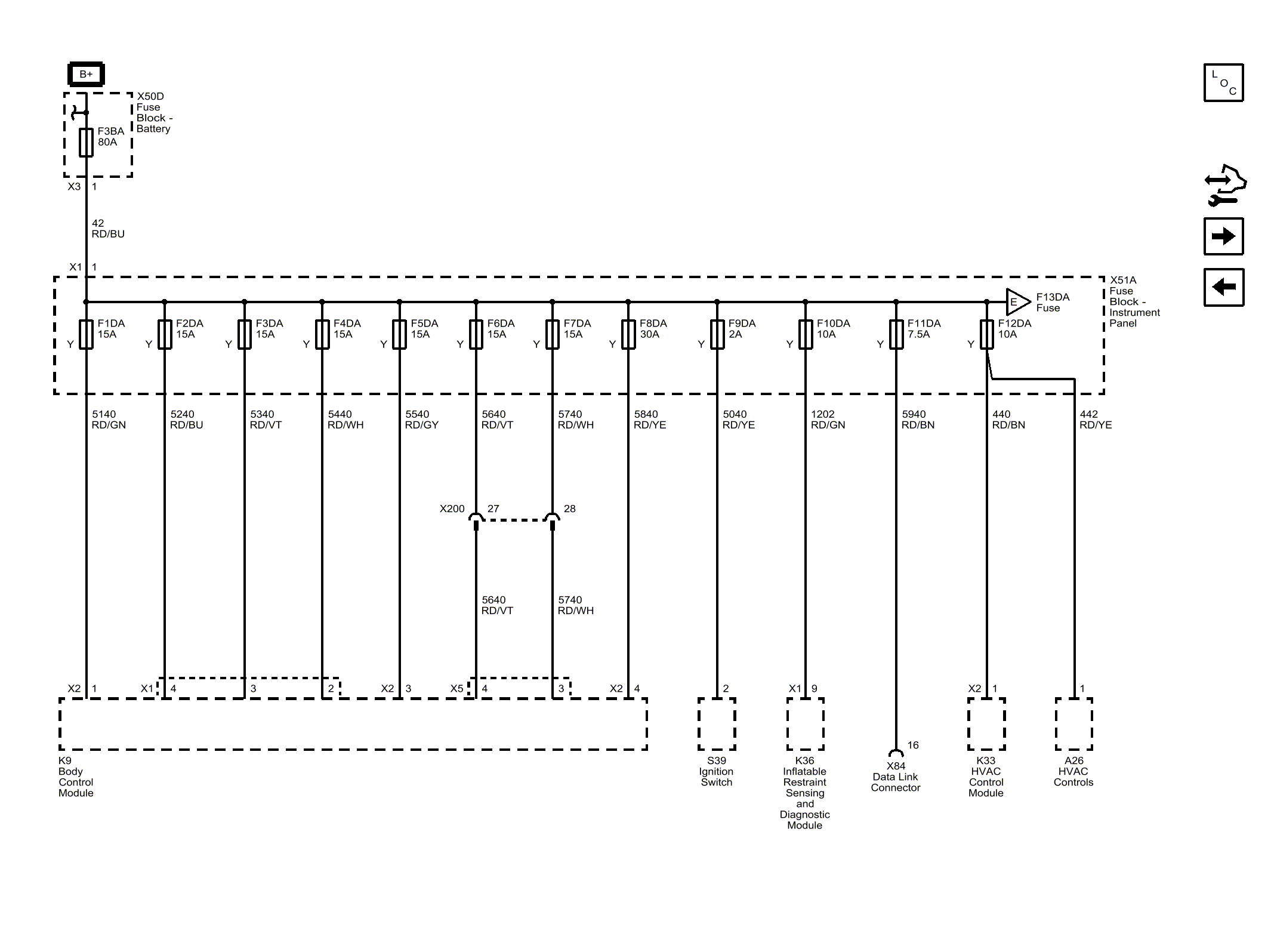

Fig 1: F3BA, F1DA, F2DA, F3DA, F4DA, F5DA, F6DA, F7DA, F8DA, F9DA, F10DA, F11DA, and F12DA Fuses
Courtesy of GENERAL MOTORS COMPANY
