Section 113 (Wiring Systems And Power Management - Schematic Wiring Diagrams - Power Distribution Schematics (Encore))
>>
Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics (Encore)
>>
F20DA, F26DA, F27DA and F28DA Fuses
F20DA, F26DA, F27DA and F28DA Fuses
WARNING:
This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

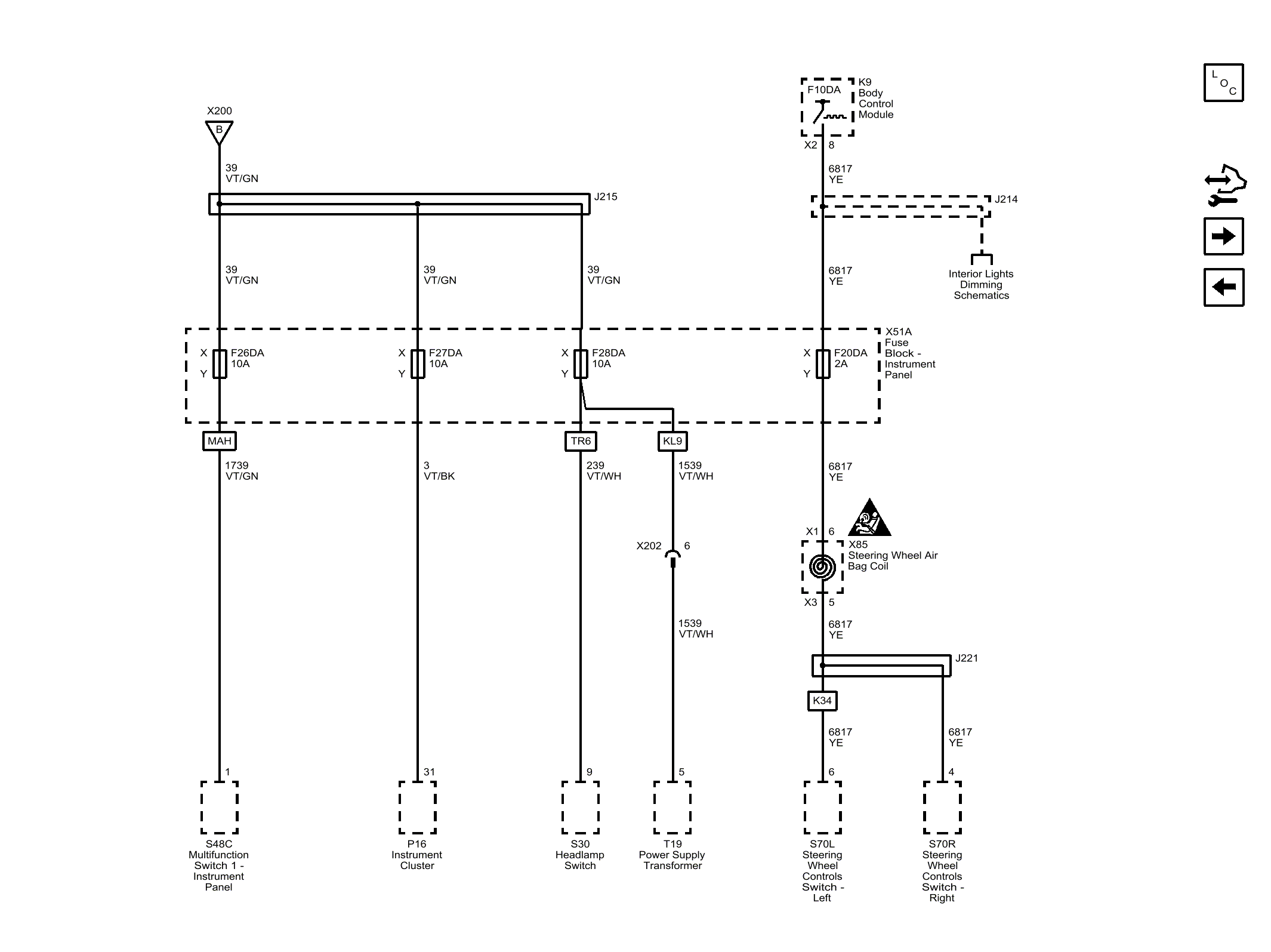

Fig 1: F20DA, F26DA, F27DA and F28DA Fuses
Courtesy of GENERAL MOTORS COMPANY
