Section 113 (Wiring Systems And Power Management - Schematic Wiring Diagrams - Power Distribution Schematics (Encore))
>>
Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics (Encore)
>>
F1UA, F1UB, F2UA, F3UA, F3UB, F5UA, F6UA, F8UA, F10UB, F15UA, F16UA, and F33UA Fuses
F1UA, F1UB, F2UA, F3UA, F3UB, F5UA, F6UA, F8UA, F10UB, F15UA, F16UA, and F33UA Fuses
WARNING:
This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

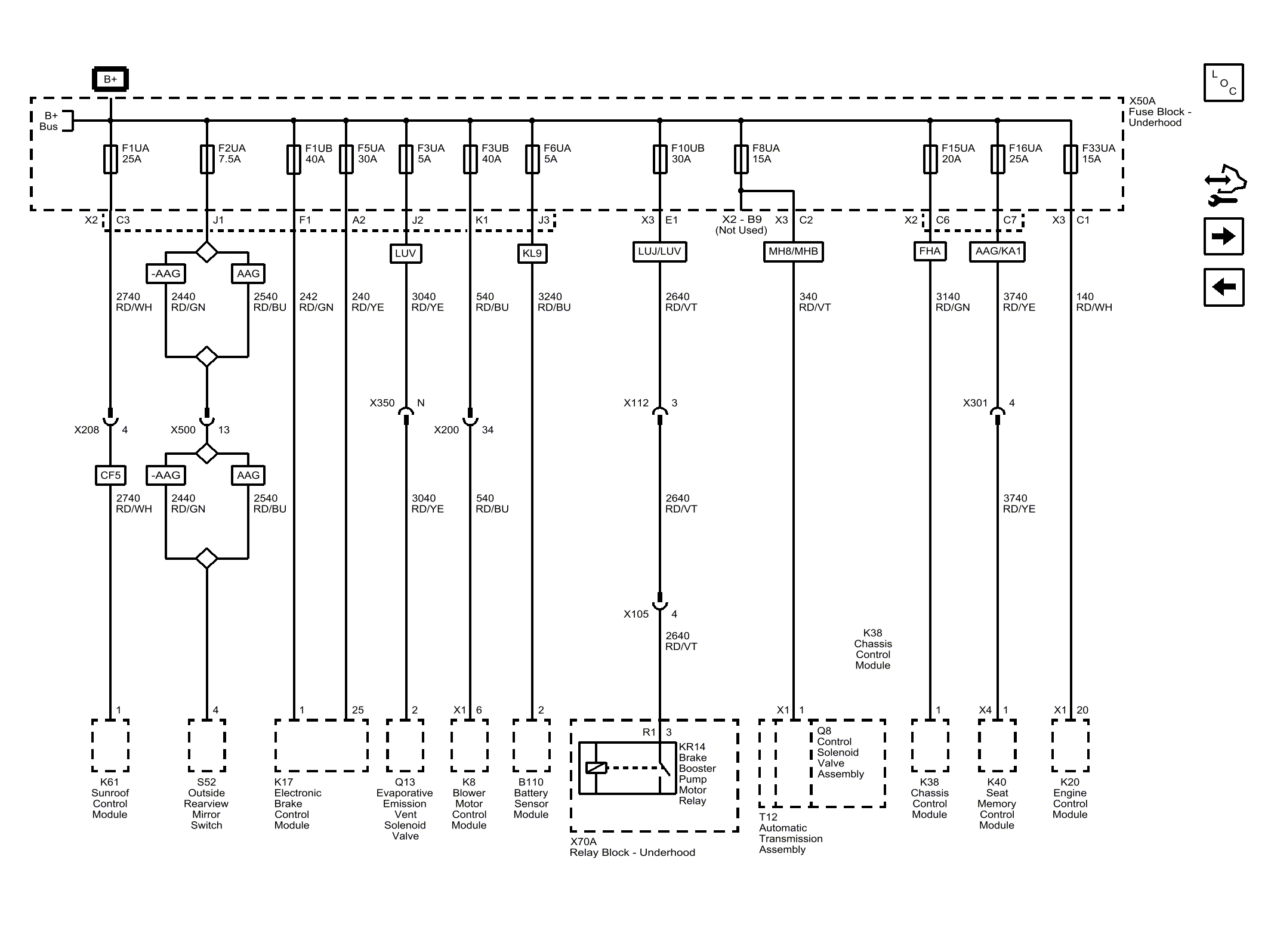

Fig 1: F1UA, F1UB, F2UA, F3UA, F3UB, F5UA, F6UA, F8UA, F10UB, F15UA, F16UA, and F33UA Fuses
Courtesy of GENERAL MOTORS COMPANY
