Section 113 (Wiring Systems And Power Management - Schematic Wiring Diagrams - Power Distribution Schematics (Encore))
>>
Schematic Wiring Diagrams
>>
Power Distribution Wiring Schematics (Encore)
>>
F1DB, F2DB, F3DB, F4DB, F13DA, F14DA, F15DA, F16DA, F17DA, F18DA, and F19DA Fuses
F1DB, F2DB, F3DB, F4DB, F13DA, F14DA, F15DA, F16DA, F17DA, F18DA, and F19DA Fuses
WARNING:
This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

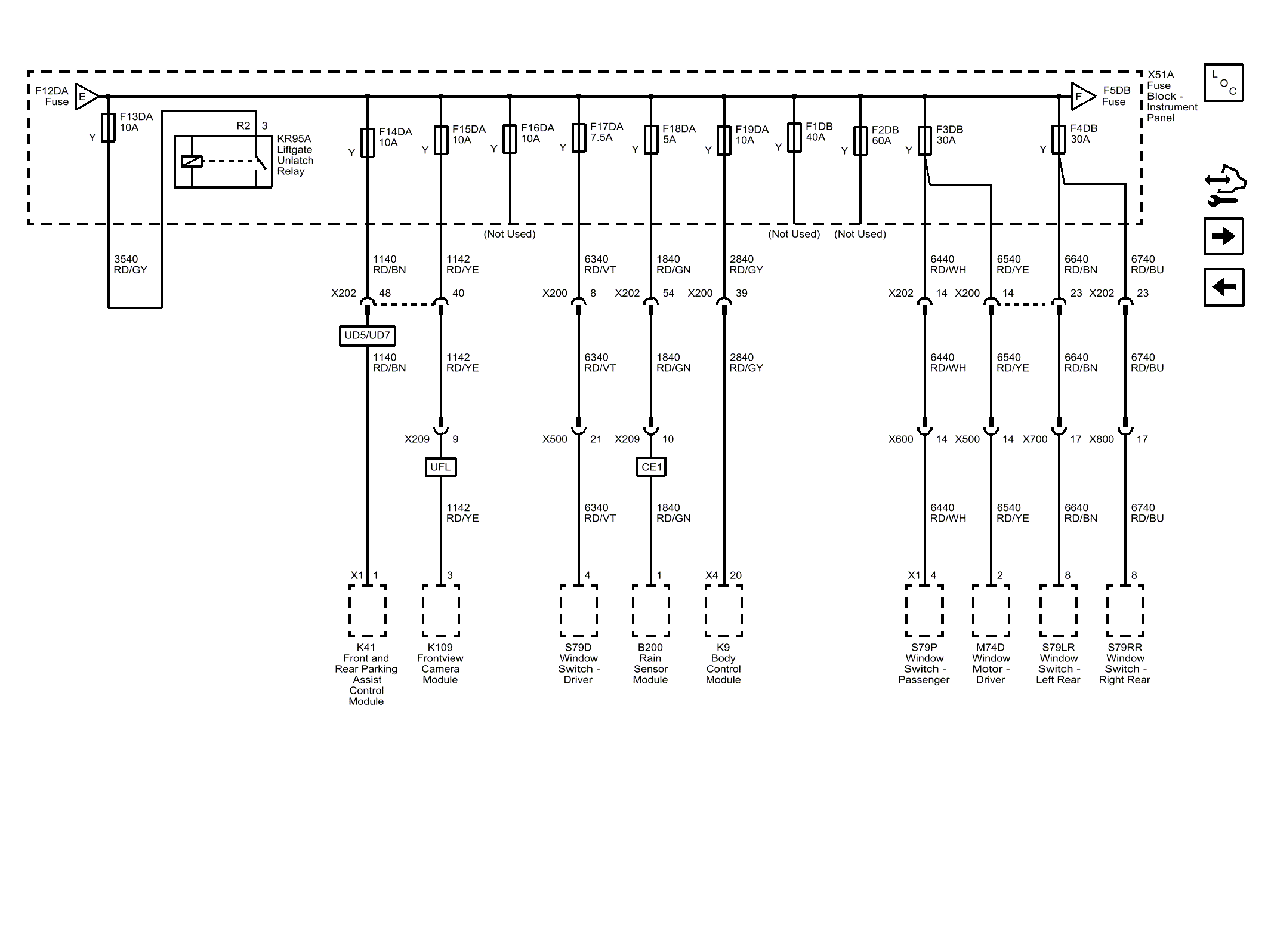

Fig 1: F1DB, F2DB, F3DB, F4DB, F13DA, F14DA, F15DA, F16DA, F17DA, F18DA, and F19DA Fuses
Courtesy of GENERAL MOTORS COMPANY
