B+ Bus (1 of 2)

WARNING: This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

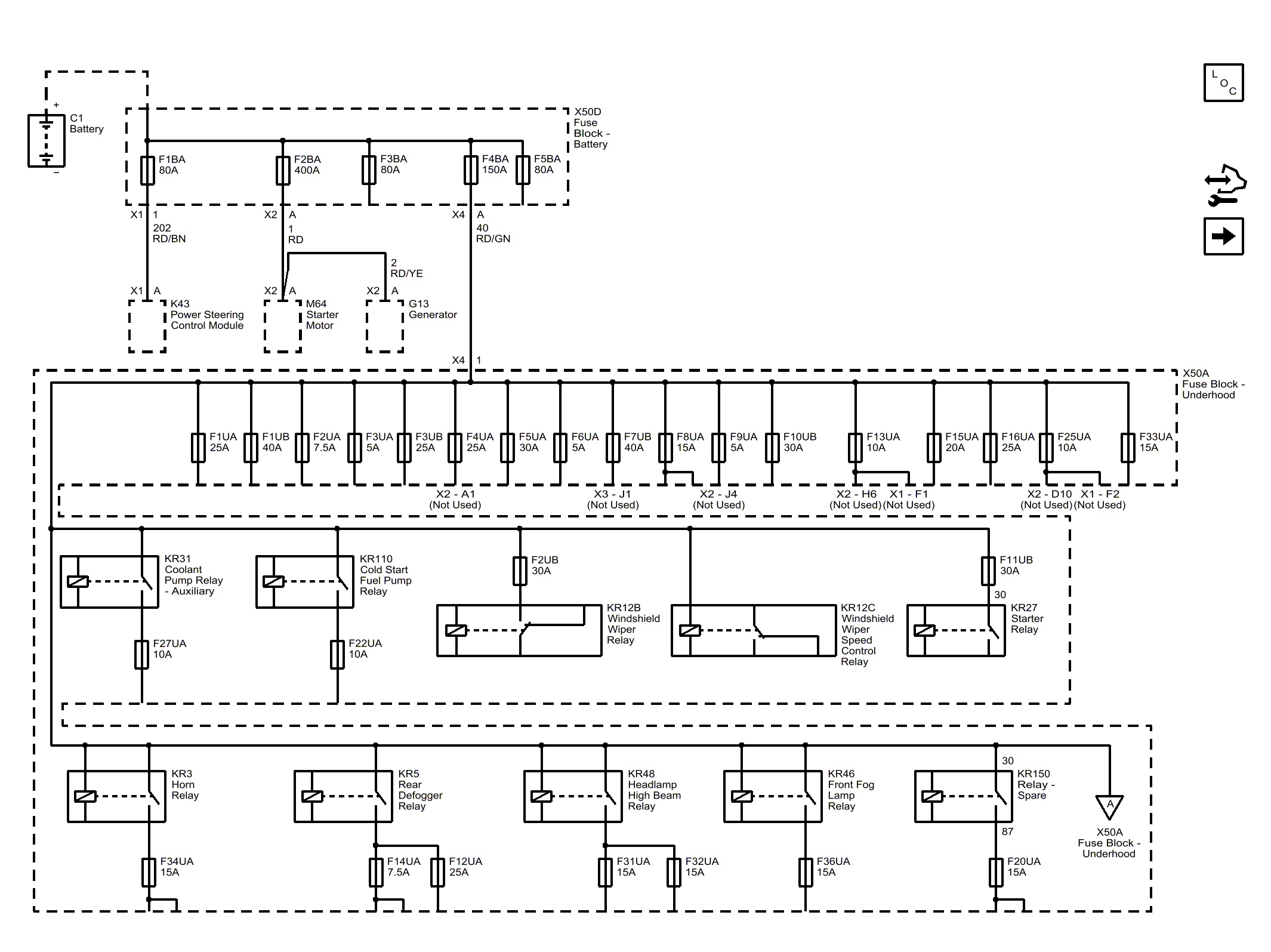

Fig 1: B+ Bus (1 of 2)
GM3260885Courtesy of GENERAL MOTORS COMPANY
