Additional Relays

WARNING: This page is about a different car, the 2014 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

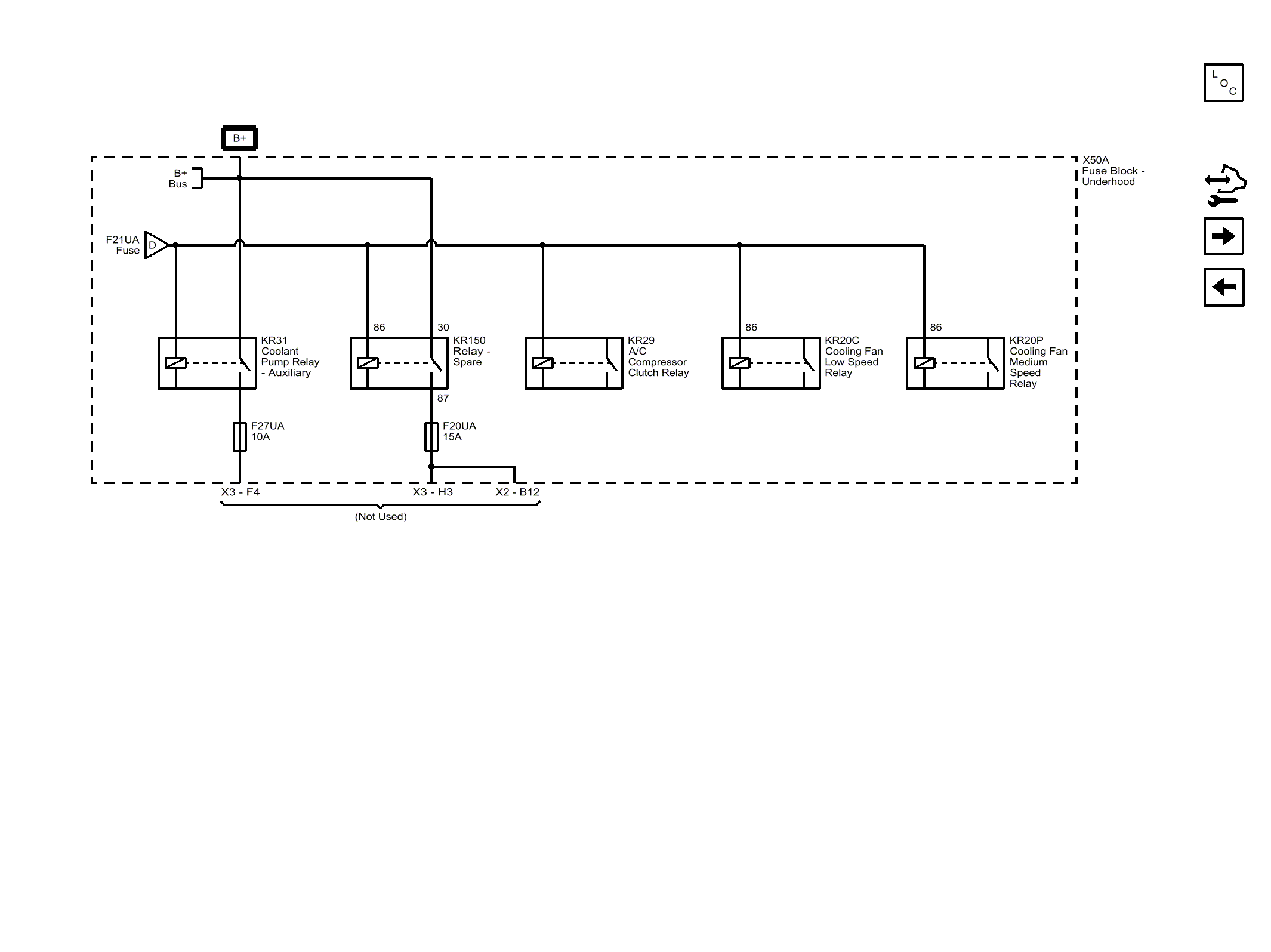

Fig 1: Additional Relays
GM3260929Courtesy of GENERAL MOTORS COMPANY
